Handles.zTest

Description

zTest of the handles.

Default value is Always.

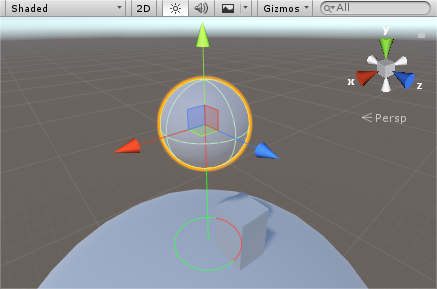

This anchor shows the first downwards collider intersection. Depth pass lines appears green, depth fail, red.

To use this example, attach this script to the object you wish to display the anchor :

#pragma strict
@ExecuteInEditMode
public class SampleAnchor extends MonoBehaviour {
	function OnDrawGizmosSelected() {
		var ray: Ray = new Ray(transform.position, Vector3.down);
		var hit: RaycastHit;
		if (Physics.Raycast(ray, hit)) {
			Handles.color = Color.green;
			Handles.zTest = UnityEngine.Rendering.CompareFunction.LessEqual;
			Handles.DrawLine(transform.position, hit.point);
			Handles.DrawWireDisc(hit.point, hit.normal, 0.5f);
			Handles.color = Color.red;
			Handles.zTest = UnityEngine.Rendering.CompareFunction.Greater;
			Handles.DrawLine(transform.position, hit.point);
			Handles.DrawWireDisc(hit.point, hit.normal, 0.5f);
		}
	}
}

using UnityEngine;
using UnityEditor;

[ExecuteInEditMode]
public class SampleAnchor : MonoBehaviour
{
    void OnDrawGizmosSelected()
    {
        Ray ray = new Ray(transform.position, Vector3.down);
        RaycastHit hit;
        if (Physics.Raycast(ray, out hit))
        {
            Handles.color = Color.green;
            Handles.zTest = UnityEngine.Rendering.CompareFunction.LessEqual;
            Handles.DrawLine(transform.position, hit.point);
            Handles.DrawWireDisc(hit.point, hit.normal, 0.5f);

            Handles.color = Color.red;
            Handles.zTest = UnityEngine.Rendering.CompareFunction.Greater;
            Handles.DrawLine(transform.position, hit.point);
            Handles.DrawWireDisc(hit.point, hit.normal, 0.5f);
        }
    }
}
