5.3.3.3 IfcProcedure
5.3.3.3.1 Semantic definition
An IfcProcedure is a logical set of actions to be taken in response to an event or to cause an event to occur.
Use definitions
IfcProcedure is used to capture information about stepped processes such as calibration, start/stop procedures for equipment items, designated actions to take in the event of an emergency etc. A procedure is not a task, but may describe a set of tasks and their order of occurrence in response to or to cause an event.

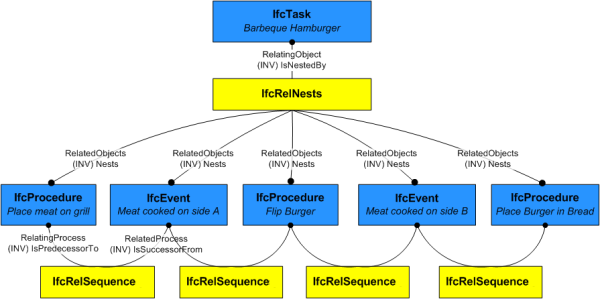

As shown in Figure 5.3.3.3.A1, IfcProcedure does not restrict anything but describes specific steps of how something should happen. While a procedure does control/restrict in the sense of indicating "this is how the task should be performed" by nature of describing inner detail, this is not different than parts of a product indicating "this is how the parts should be assembled". Consequently, it doesn't restrict the outer item as a whole but provides inner detail of the item.
5.3.3.3.2 Entity inheritance
5.3.3.3.3 Attributes
| # | Attribute | Type | Description |
|---|---|---|---|
| IfcRoot (4) | |||
| 1 | GlobalId | IfcGloballyUniqueId |
Assignment of a globally unique identifier within the entire software world. |
| 2 | OwnerHistory | OPTIONAL IfcOwnerHistory |
Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object, |
| 3 | Name | OPTIONAL IfcLabel |
Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. |
| 4 | Description | OPTIONAL IfcText |
Optional description, provided for exchanging informative comments. |
| IfcObjectDefinition (7) | |||
| HasAssignments | SET [0:?] OF IfcRelAssigns FOR RelatedObjects |
Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. |
|
| Nests | SET [0:1] OF IfcRelNests FOR RelatedObjects |
References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only). |
|
| IsNestedBy | SET [0:?] OF IfcRelNests FOR RelatingObject |
References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types). |
|
| HasContext | SET [0:1] OF IfcRelDeclares FOR RelatedDefinitions |
References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object. |
|
| IsDecomposedBy | SET [0:?] OF IfcRelAggregates FOR RelatingObject |
References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts). |
|
| Decomposes | SET [0:1] OF IfcRelAggregates FOR RelatedObjects |
References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only). |
|
| HasAssociations | SET [0:?] OF IfcRelAssociates FOR RelatedObjects |
Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. |
|
| IfcObject (5) | |||
| 5 | ObjectType | OPTIONAL IfcLabel |
The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED. |
| IsDeclaredBy | SET [0:1] OF IfcRelDefinesByObject FOR RelatedObjects |
Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes. |
|
| Declares | SET [0:?] OF IfcRelDefinesByObject FOR RelatingObject |
Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes. |
|
| IsTypedBy | SET [0:1] OF IfcRelDefinesByType FOR RelatedObjects |
Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type. |
|
| IsDefinedBy | SET [0:?] OF IfcRelDefinesByProperties FOR RelatedObjects |
Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object. |
|
| IfcProcess (5) | |||
| 6 | Identification | OPTIONAL IfcIdentifier |
An identifying designation given to a process or activity. It is the identifier at the occurrence level. |
| 7 | LongDescription | OPTIONAL IfcText |
An extended description or narrative that may be provided. |
| IsPredecessorTo | SET [0:?] OF IfcRelSequence FOR RelatingProcess |
Dependency between two activities, it refers to the subsequent activity for which this activity is the predecessor. The link between two activities can include a link type and a lag time. |
|
| IsSuccessorFrom | SET [0:?] OF IfcRelSequence FOR RelatedProcess |
Dependency between two activities, it refers to the previous activity for which this activity is the successor. The link between two activities can include a link type and a lag time. |
|
| OperatesOn | SET [0:?] OF IfcRelAssignsToProcess FOR RelatingProcess |
Set of relationships to other objects, e.g. products, processes, controls, resources or actors, that are operated on by the process. |
|
| Click to show 21 hidden inherited attributes Click to hide 21 inherited attributes | |||
| IfcProcedure (1) | |||
| 8 | PredefinedType | OPTIONAL IfcProcedureTypeEnum |
Identifies the predefined types of a procedure from which the type required may be set. |
5.3.3.3.4 Formal propositions
| Name | Description |
|---|---|
| CorrectPredefinedType |
Either the PredefinedType attribute is unset, or the inherited attribute ObjectType must be asserted when the value of PredefinedType is set to USERDEFINED. |
|
|
| HasName |
The Name attribute should be inserted to describe the task name. |
|
|
5.3.3.3.5 Property sets
-
Pset_Risk
- RiskName
- RiskType
- NatureOfRisk
- RiskAssessmentMethodology
- UnmitigatedRiskLikelihood
- UnmitigatedRiskConsequence
- UnmitigatedRiskSignificance
- MitigationPlanned
- MitigatedRiskLikelihood
- MitigatedRiskConsequence
- MitigatedRiskSignificance
- MitigationProposed
- AssociatedProduct
- AssociatedActivity
- AssociatedLocation
5.3.3.3.6 Concept usage
| Concept | Usage | Description | |
|---|---|---|---|
| IfcRoot (2) | |||
| Revision Control | General |
Ownership, history, and merge state is captured using IfcOwnerHistory. |
|
| Software Identity | General |
IfcRoot assigns the globally unique ID. In addition it may provide for a name and a description about the concept. |
|
| IfcObjectDefinition (9) | |||
| Aggregation | General |
No description available. |
|
| Approval Association | General |
No description available. |
|
| Classification Association | General |
Any object occurrence or object type can have a reference to a specific classification reference, i.e. to a particular facet within a classification system. |
|
| Constraint Association | General |
No description available. |
|
| Document Association | General |
No description available. |
|
| Library Association | General |
No description available. |
|
| Material Association | General |
No description available. |
|
| Material Single | General |
No description available. |
|
| Nesting | General |
No description available. |
|
| IfcObject (5) | |||
| Assignment to Group | General |
No description available. |
|
| Object Predefined Type | General |
No description available. |
|
| Object Typing | General |
Any object occurrence can be typed by being assigned to a common object type utilizing this concept. A particular rule, restricting the applicable subtypes of IfcTypeObject that can be assigned, is introduced by overriding this concept at the level of subtypes of IfcObject. This concept can be applied to the following resources: |
|
| Object User Identity | General |
An attribute Name and optionally Description can be used for all subypes of IfcObject. For those subtypes, that have an object type definition, such as ifcBeam - IfcBeamType, the common Name and optionally Description is associated with the object type. |
|
| Property Sets with Override | General |
Any object occurrence can hold property sets, either directly at the object occurrence as element specific property sets, or at the object type, as type property sets. In this case, the properties that are provided to the object occurrence are the combinations of element specific and type properties. In case, that the same property (within the same property set, is defined both, in occurrence and type properties, the property value of the occurrence property overrides the property value of the type property. |
|
| IfcProcess (3) | |||
| Process Assignment | General |
No description available. |
|
| Property Sets for Objects | General |
This concept can be applied to the following resources: |
|
| Sequential Connectivity | General |
No description available. |
|
| Click to show 19 hidden inherited concepts Click to hide 19 inherited concepts | |||
| IfcProcedure (4) | |||
| Object Nesting | General |
The IfcProcedure may be contained within an IfcTask or IfcProcedure using the IfcRelNests relationship. An IfcProcedure may in turn nest other IfcProcedure or IfcEvent entities. Such nesting indicates decomposed level of detail. This concept can be applied to the following resources: |
|
| Object Typing | General |
IfcProcedure defines the anticipated or actual occurrence of any procedure; common information about procedure types is handled by IfcProcedureType. This concept can be applied to the following resources: |
|
| Process Assignment | General | ||
| Sequential Connectivity | General |
The relationship IfcRelSequence is used to indicate control flow. An IfcProcedure as a successor to an IfcEvent indicates that the procedure should be performed in response to the event. An IfcProcedure as a predecessor to an IfcEvent indicates that the event should be trigerred following the procedure. As procedures have arbitrary duration, the IfcRelSequence.SequenceType attribute has no effect on an IfcProcedure but still applies to the opposite end of the relationship if IfcTask is used. |
|
5.3.3.3.7 Formal representation
ENTITY IfcProcedure
SUBTYPE OF (IfcProcess);
PredefinedType : OPTIONAL IfcProcedureTypeEnum;
WHERE
CorrectPredefinedType : NOT(EXISTS(PredefinedType)) OR (PredefinedType <> IfcProcedureTypeEnum.USERDEFINED) OR
((PredefinedType = IfcProcedureTypeEnum.USERDEFINED) AND EXISTS(SELF\IfcObject.ObjectType));
HasName : EXISTS(SELF\IfcRoot.Name);
END_ENTITY;
