5.1.3.9 IfcProcess

ABSTRACT This definition may not be instantiated

5.1.3.9.1 Semantic definition

IfcProcess is defined as one individual activity or event, that is ordered in time, that has sequence relationships with other processes, which transforms input in output, and may connect to other other processes through input output relationships. An IfcProcess can be an activity (or task), or an event. It takes usually place in building construction with the intent of designing, costing, acquiring, constructing, or maintaining products or other and similar tasks or procedures. Figure 5.1.3.9.A illustrates process relationships.

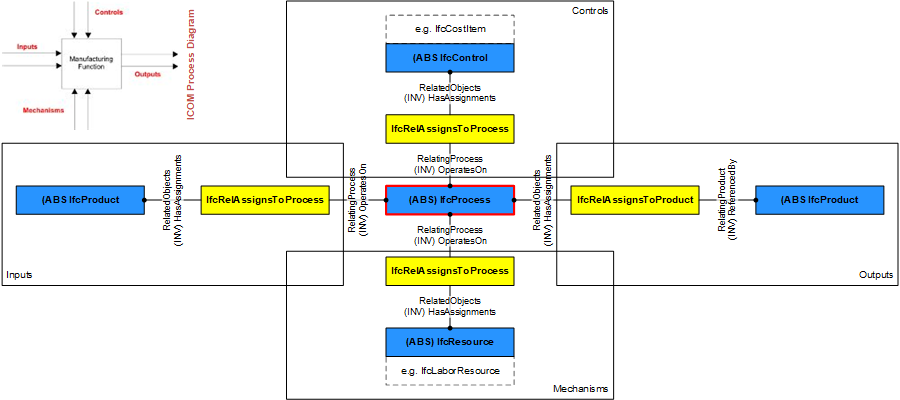

icom diagram — Figure 5.1.3.9.A — Process relationships and the ICOM process diagram.

Process information relates to other objects by establishing the following relationships:

Nesting of processes : IfcRelNests - A process can contain sub processes and thereby be nested.
Sequencing of processes : IfcRelSequence - Processes can be placed in sequence (including overlapping for parallel tasks), and have predecessors and successors.
Assigning process to schedules : IfcRelAssignsToControl - Activities such as tasks, and predominately summary tasks, are assigned to a work schedule.
Having a product assigned to the process as input : IfcRelAssignsToProcess - Products can be assigned as input to a process, such as for construction process planning.
Having a product assigned to the process as output : IfcRelAssignsToProduct - Products can be assigned as output to a process, such as for construction process planning.
Having a control assigned to the process as process control : IfcRelAssignsToProcess - Items that act as a control onto the process can be assigned to a process, such as for cost management (a cost item assigned to a work task).
Having a resource assigned to the process as consumed by the process : IfcRelAssignsToProcess - Items that act as a mechanism to a process, such as labor, material and equipment in cost calculations.

5.1.3.9.2 Entity inheritance

- IfcRoot

5.1.3.9.3 Attributes

#	Attribute	Type	Description
IfcRoot (4)
1	GlobalId	IfcGloballyUniqueId	Assignment of a globally unique identifier within the entire software world.
2	OwnerHistory	OPTIONAL IfcOwnerHistory	Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object, NOTE only the last modification in stored - either as addition, deletion or modification. IFC4-CHANGE The attribute has been changed to be OPTIONAL.
3	Name	OPTIONAL IfcLabel	Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule.
4	Description	OPTIONAL IfcText	Optional description, provided for exchanging informative comments.
IfcObjectDefinition (7)
	HasAssignments	SET [0:?] OF IfcRelAssigns FOR RelatedObjects	Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.
	Nests	SET [0:1] OF IfcRelNests FOR RelatedObjects	References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only). IFC4-CHANGE The inverse attribute datatype has been added and separated from Decomposes defined at IfcObjectDefinition.
	IsNestedBy	SET [0:?] OF IfcRelNests FOR RelatingObject	References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types). IFC4-CHANGE The inverse attribute datatype has been added and separated from IsDecomposedBy defined at IfcObjectDefinition.
	HasContext	SET [0:1] OF IfcRelDeclares FOR RelatedDefinitions	References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object. IFC4-CHANGE The inverse attribute datatype has been added.
	IsDecomposedBy	SET [0:?] OF IfcRelAggregates FOR RelatingObject	References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts). IFC4-CHANGE The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates.
	Decomposes	SET [0:1] OF IfcRelAggregates FOR RelatedObjects	References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only). IFC4-CHANGE The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates.
	HasAssociations	SET [0:?] OF IfcRelAssociates FOR RelatedObjects	Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.
IfcObject (5)
5	ObjectType	OPTIONAL IfcLabel	The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.
	IsDeclaredBy	SET [0:1] OF IfcRelDefinesByObject FOR RelatedObjects	Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes. IFC4-CHANGE New inverse relationship, change made with upward compatibility for file based exchange.
	Declares	SET [0:?] OF IfcRelDefinesByObject FOR RelatingObject	Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes. IFC4-CHANGE New inverse relationship, change made with upward compatibility for file based exchange.
	IsTypedBy	SET [0:1] OF IfcRelDefinesByType FOR RelatedObjects	Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type. IFC4-CHANGE New inverse relationship, the link to IfcRelDefinesByType had previously be included in the inverse relationship IfcRelDefines. Change made with upward compatibility for file based exchange.
	IsDefinedBy	SET [0:?] OF IfcRelDefinesByProperties FOR RelatedObjects	Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object. IFC4-CHANGE The data type has been changed from IfcRelDefines to IfcRelDefinesByProperties with upward compatibility for file based exchange.
Click to show 16 hidden inherited attributes Click to hide 16 inherited attributes
IfcProcess (5)
6	Identification	OPTIONAL IfcIdentifier	An identifying designation given to a process or activity. It is the identifier at the occurrence level. IFC4-CHANGE Attribute promoted from subtypes.
7	LongDescription	OPTIONAL IfcText	An extended description or narrative that may be provided. IFC4-CHANGE New attribute.
	IsPredecessorTo	SET [0:?] OF IfcRelSequence FOR RelatingProcess	Dependency between two activities, it refers to the subsequent activity for which this activity is the predecessor. The link between two activities can include a link type and a lag time.
	IsSuccessorFrom	SET [0:?] OF IfcRelSequence FOR RelatedProcess	Dependency between two activities, it refers to the previous activity for which this activity is the successor. The link between two activities can include a link type and a lag time.
	OperatesOn	SET [0:?] OF IfcRelAssignsToProcess FOR RelatingProcess	Set of relationships to other objects, e.g. products, processes, controls, resources or actors, that are operated on by the process.

Table 5.1.3.9.B

5.1.3.9.4 Property sets

Pset_Risk
- RiskName
- RiskType
- NatureOfRisk
- RiskAssessmentMethodology
- UnmitigatedRiskLikelihood
- UnmitigatedRiskConsequence
- UnmitigatedRiskSignificance
- MitigationPlanned
- MitigatedRiskLikelihood
- MitigatedRiskConsequence
- MitigatedRiskSignificance
- MitigationProposed
- AssociatedProduct
- AssociatedActivity
- AssociatedLocation

5.1.3.9.5 Concept usage

Concept	Usage	Description
IfcRoot (2)
Revision Control	General	Ownership, history, and merge state is captured using IfcOwnerHistory.
Software Identity	General	IfcRoot assigns the globally unique ID. In addition it may provide for a name and a description about the concept.
IfcObjectDefinition (9)
Aggregation	General	No description available.
Approval Association	General	No description available.
Classification Association	General	Any object occurrence or object type can have a reference to a specific classification reference, i.e. to a particular facet within a classification system.
Constraint Association	General	No description available.
Document Association	General	No description available.
Library Association	General	No description available.
Material Association	General	No description available.
Material Single	General	No description available.
Nesting	General	No description available.
IfcObject (5)
Assignment to Group	General	No description available.
Object Predefined Type	General	No description available.
Object Typing	General	Any object occurrence can be typed by being assigned to a common object type utilizing this concept. A particular rule, restricting the applicable subtypes of IfcTypeObject that can be assigned, is introduced by overriding this concept at the level of subtypes of IfcObject. This concept can be applied to the following resources: IfcTypeObject
Object User Identity	General	An attribute Name and optionally Description can be used for all subypes of IfcObject. For those subtypes, that have an object type definition, such as ifcBeam - IfcBeamType, the common Name and optionally Description is associated with the object type.
Property Sets with Override	General	Any object occurrence can hold property sets, either directly at the object occurrence as element specific property sets, or at the object type, as type property sets. In this case, the properties that are provided to the object occurrence are the combinations of element specific and type properties. In case, that the same property (within the same property set, is defined both, in occurrence and type properties, the property value of the occurrence property overrides the property value of the type property.
Click to show 16 hidden inherited concepts Click to hide 16 inherited concepts
IfcProcess (3)
Process Assignment	General	No description available.
Property Sets for Objects	General	This concept can be applied to the following resources: Pset_Risk
Sequential Connectivity	General	No description available.

Table 5.1.3.9.C

5.1.3.9.6 Formal representation

ENTITY IfcProcess
 ABSTRACT SUPERTYPE OF (ONEOF
	(IfcEvent
	,IfcProcedure
	,IfcTask))
 SUBTYPE OF (IfcObject);
	Identification : OPTIONAL IfcIdentifier;
	LongDescription : OPTIONAL IfcText;
 INVERSE
	IsPredecessorTo : SET [0:?] OF IfcRelSequence FOR RelatingProcess;
	IsSuccessorFrom : SET [0:?] OF IfcRelSequence FOR RelatedProcess;
	OperatesOn : SET [0:?] OF IfcRelAssignsToProcess FOR RelatingProcess;
END_ENTITY;
