5.4.3.53 IfcRelFillsElement
5.4.3.53.1 Semantic definition
IfcRelFillsElement is an objectified relationship between an opening element and an element that fills (or partially fills) the opening element. It is an one-to-one relationship.

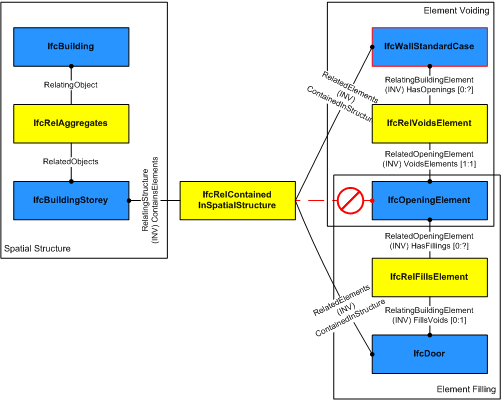

As shown in Figure 5.4.3.53.A, the insertion of a door into a wall is represented by two separate relationships. First the door opening is created within the wall by IfcWall <-- IfcRelVoidsElement --> IfcOpeningElement, then the door is inserted within the opening by IfcOpeningElement <-- IfcRelFillsElement --> IfcDoor.
5.4.3.53.2 Entity inheritance
-
- IfcRelFillsElement
- IfcRelConnectsElements
- IfcRelConnectsPortToElement
- IfcRelConnectsPorts
- IfcRelConnectsStructuralActivity
- IfcRelConnectsStructuralMember
- IfcRelContainedInSpatialStructure
- IfcRelCoversBldgElements
- IfcRelCoversSpaces
- IfcRelFlowControlElements
- IfcRelInterferesElements
- IfcRelPositions
- IfcRelReferencedInSpatialStructure
- IfcRelSequence
- IfcRelServicesBuildings
- IfcRelSpaceBoundary
5.4.3.53.3 Attributes
| # | Attribute | Type | Description |
|---|---|---|---|
| IfcRoot (4) | |||
| 1 | GlobalId | IfcGloballyUniqueId |
Assignment of a globally unique identifier within the entire software world. |
| 2 | OwnerHistory | OPTIONAL IfcOwnerHistory |
Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object, |
| 3 | Name | OPTIONAL IfcLabel |
Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. |
| 4 | Description | OPTIONAL IfcText |
Optional description, provided for exchanging informative comments. |
| Click to show 4 hidden inherited attributes Click to hide 4 inherited attributes | |||
| IfcRelFillsElement (2) | |||
| 5 | RelatingOpeningElement | IfcOpeningElement |
Opening Element being filled by virtue of this relationship. |
| 6 | RelatedBuildingElement | IfcElement |
Reference to ~~building~~ element that occupies fully or partially the associated opening. |
5.4.3.53.4 Concept usage
| Concept | Usage | Description | |
|---|---|---|---|
| IfcRoot (2) | |||
| Revision Control | General |
Ownership, history, and merge state is captured using IfcOwnerHistory. |
|
| Software Identity | General |
IfcRoot assigns the globally unique ID. In addition it may provide for a name and a description about the concept. |
|
| Click to show 2 hidden inherited concepts Click to hide 2 inherited concepts | |||
5.4.3.53.5 Formal representation
ENTITY IfcRelFillsElement
SUBTYPE OF (IfcRelConnects);
RelatingOpeningElement : IfcOpeningElement;
RelatedBuildingElement : IfcElement;
END_ENTITY;
