5.4.3.59 IfcRelSpaceBoundary

5.4.3.59.1 Semantic definition

The space boundary defines the physical or virtual delimiter of a space by the relationship IfcRelSpaceBoundary to the surrounding elements.

• In the case of a physical space boundary, the placement and shape of the boundary may be given, and the building element, providing the boundary, is referenced,
• In the case of a virtual space boundary, the placement and shape of the boundary may be given, and a virtual element is referenced.

The IfcRelSpaceBoundary is defined as an objectified relationship that handles the element to space relationship by objectifying the relationship between an element and the space it bounds. It is given as a one-to-one relationship, but allows each element (including virtual elements and openings) to define many such relationship and each space to be defined by many such relationships.

Space boundaries are always defined as seen from the space. In general two basic types of space boundaries are distinguished:

• 1^st level space boundary: defined as boundaries of the space, not taking into account any change in building element or spaces on the other side.
• 2^nd level space boundary: defined as boundary taking any change in building element or spaces on the other side into account. It can be further distinguished into
  • 2^nd level type A: There is a space on the other side.
  • 2^nd level type B: There is a building element on the other side.

The exact definition of how space boundaries are broken down depends on the view definition, more detailed conventions on how space boundaries are decomposed can only be given at the domain or application type level.

• In an architectural or FM related view, a space boundary is defined totally from inside the space. This is a 1^st level space boundary.
• In a thermal view, the decomposition of the space boundary depends on the material of the providing building element and the adjacent spaces behind. This is a 2^nd level space boundary.

The differences between the 1^st and 2^nd level space boundaries is identified by:

• 1^st level: SELF\IfcRoot.Name = "1stLevel" SELF\IfcRootDescription = NIL
• 2^nd level: SELF\IfcRoot.Name = "2ndLevel" SELF\IfcRootDescription = "2a", or "2b"

Differentiation between physical and virtual space boundary is illustrated in Figure 5.4.3.59.E and Figure 5.4.3.59.F.

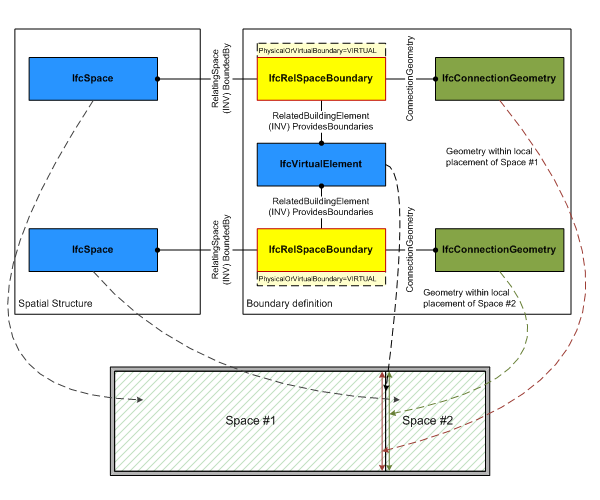

As shown in Figure 5.4.3.59.E, if the IfcRelSpaceBoundary is used to express a virtual boundary, the attribute PhysicalOrVirtualBoundary has to be set to VIRTUAL. The attribute RelatedBuildingElement shall point to an instance of IfcVirtualElement. If the correct location is of interest, the attribute ConnectionGeometry is required.

As shown in Figure 5.4.3.59.F, if the IfcRelSpaceBoundary is used to express a physical boundary between two spaces, the attribute PhysicalOrVirtualBoundary has to be set to PHYSICAL. The attribute RelatedBuildingElement has to be given and points to the element providing the space boundary. The attribute ConnectionGeometry may be inserted, in this case it describes the physical space boundary geometically, or it may be omited, in that case it describes a physical space boundary logically.

The IfcRelSpaceBoundary may have geometry attached. If geometry is not attached, the relationship between space and building element is handled only on a logical level. If geometry is attached, it is given within the local coordinate systems of the space.

The geometric representation (through the ConnectionGeometry attribute) is defined using either 2D curve geometry or 3D surface geometry for space boundaries. In most view definitions the 3D connection surface geometry is required.

• 1^st level space boundary:
  • only connection geometry for related space shall be provided
  • only surface connection geometry shall be provided
  • only the following surface representations are supported:
    • IfcSurfaceOfLinearExtrusion
    • IfcCurveBoundedPlane
    • IfcCurveBoundedSurface
    • IfcFaceBasedSurfaceModel
• 2^nd level space boundary:
  • only connection geometry for related space shall be provided
  • only surface connection geometry shall be provided
  • only the following surface representations are supported:
    • IfcCurveBoundedPlane with restrictions to have polygonal boundaries only
    • IfcFaceBasedSurfaceModel

Surface connection geometry

The following constraints apply to the surface connection geometry representation:

• planar boundaries:
  • IfcSurfaceOfLinearExtrusion defined by a SweptCurve being an IfcArbitraryOpenProfileDef with straight segments, or
  • IfcCurveBoundedPlane
• curved boundaries
  • IfcSurfaceOfLinearExtrusion defined by a SweptCurve being an IfcArbitraryOpenProfileDef with curves segments, or
  • IfcCurveBoundedSurface with a BasisSurface being a non planar surface, such as IfcCylindricalSurface, or
  • IfcFaceBasedSurfaceModel if already faceted.

Curve connection geometry

The following constraints apply to the 2D curve representation:

• Curve: IfcPolyline, IfcTrimmedCurve or IfcCompositeCurve

5.4.3.59.2 Entity inheritance

1. • IfcRoot
2. • IfcRelationship
   • IfcObjectDefinition
   • IfcPropertyDefinition
3. • IfcRelConnects
   • IfcRelAssigns
   • IfcRelAssociates
   • IfcRelDeclares
   • IfcRelDecomposes
   • IfcRelDefines
4. • IfcRelSpaceBoundary
   • IfcRelConnectsElements
   • IfcRelConnectsPortToElement
   • IfcRelConnectsPorts
   • IfcRelConnectsStructuralActivity
   • IfcRelConnectsStructuralMember
   • IfcRelContainedInSpatialStructure
   • IfcRelCoversBldgElements
   • IfcRelCoversSpaces
   • IfcRelFillsElement
   • IfcRelFlowControlElements
   • IfcRelInterferesElements
   • IfcRelPositions
   • IfcRelReferencedInSpatialStructure
   • IfcRelSequence
   • IfcRelServicesBuildings
5. • IfcRelSpaceBoundary1stLevel

5.4.3.59.3 Attributes

5.4.3.59.4 Formal propositions

((PhysicalOrVirtualBoundary = IfcPhysicalOrVirtualEnum.Physical)
  AND (NOT('IFC4X3.IFCVIRTUALELEMENT' IN TYPEOF(RelatedBuildingElement))))
OR
((PhysicalOrVirtualBoundary = IfcPhysicalOrVirtualEnum.Virtual)
  AND (('IFC4X3.IFCVIRTUALELEMENT' IN TYPEOF(RelatedBuildingElement))
  OR   ('IFC4X3.IFCOPENINGELEMENT' IN TYPEOF(RelatedBuildingElement))))
OR
(PhysicalOrVirtualBoundary = IfcPhysicalOrVirtualEnum.NotDefined)

5.4.3.59.5 Concept usage

5.4.3.59.6 Formal representation

ENTITY IfcRelSpaceBoundary
 SUPERTYPE OF (ONEOF
	(IfcRelSpaceBoundary1stLevel))
 SUBTYPE OF (IfcRelConnects);
	RelatingSpace : IfcSpaceBoundarySelect;
	RelatedBuildingElement : IfcElement;
	ConnectionGeometry : OPTIONAL IfcConnectionGeometry;
	PhysicalOrVirtualBoundary : IfcPhysicalOrVirtualEnum;
	InternalOrExternalBoundary : IfcInternalOrExternalEnum;
 WHERE
	CorrectPhysOrVirt : ((PhysicalOrVirtualBoundary = IfcPhysicalOrVirtualEnum.Physical)
  AND (NOT('IFC4X3.IFCVIRTUALELEMENT' IN TYPEOF(RelatedBuildingElement))))
OR
((PhysicalOrVirtualBoundary = IfcPhysicalOrVirtualEnum.Virtual)
  AND (('IFC4X3.IFCVIRTUALELEMENT' IN TYPEOF(RelatedBuildingElement))
  OR   ('IFC4X3.IFCOPENINGELEMENT' IN TYPEOF(RelatedBuildingElement))))
OR
(PhysicalOrVirtualBoundary = IfcPhysicalOrVirtualEnum.NotDefined);
END_ENTITY;

5.4.3.59.7 References

• IfcElement
• IfcExternalSpatialElement
• IfcRelConnects
• IfcRelSpaceBoundary1stLevel
• IfcRelSpaceBoundary2ndLevel
• IfcSpace
