IfcDoorPanelOperationEnum

Item	SPF	XML	Change	Description
IFC2x3 to IFC4
IfcDoorPanelOperationEnum			MOVED	Schema changed from IFCSHAREDBLDGELEMENTS to IFCARCHITECTUREDOMAIN.

Semantic definitions at the type

Type definition

This enumeration defines the basic ways how individual door panels operate as shown in Figure 275.

Enumerator	Illustration
Swinging
DoubleActing
Sliding
Folding
Revolving
Rollingup
FixedPanel
UserDefined
NotDefined

Figure 275 — Door operations

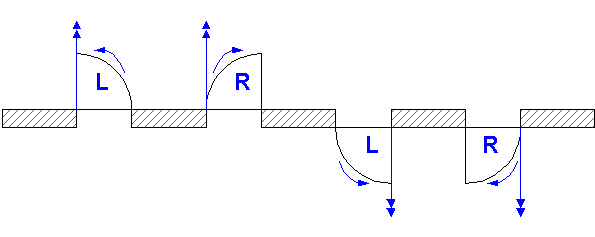

The opening direction of the door panels is given by the local placement of the IfcDoor. The positive y-axis determines the direction as shown in Figure 276.

Figure 276 — Door panel operations

NOTE Figures (symbolic representation) depend on the national building code. These figures are only shown as illustrations

HISTORY New enumeration in IFC2.0.

IFC4 CHANGE Enumerator FIXEDPANEL added.

Enumeration definition

Constant	Description
SWINGING
DOUBLE_ACTING
SLIDING
FOLDING
REVOLVING
ROLLINGUP
FIXEDPANEL
USERDEFINED
NOTDEFINED

Formal representations

XSD Specification

 <xs:simpleType name="IfcDoorPanelOperationEnum">

  <xs:restriction base="xs:string">

   <xs:enumeration value="swinging"/>

   <xs:enumeration value="double_acting"/>

   <xs:enumeration value="sliding"/>

   <xs:enumeration value="folding"/>

   <xs:enumeration value="revolving"/>

   <xs:enumeration value="rollingup"/>

   <xs:enumeration value="fixedpanel"/>

   <xs:enumeration value="userdefined"/>

   <xs:enumeration value="notdefined"/>

  </xs:restriction>

 </xs:simpleType>

EXPRESS Specification


TYPE IfcDoorPanelOperationEnum = ENUMERATION OF (

 SWINGING,
 DOUBLE_ACTING,
 SLIDING,
 FOLDING,
 REVOLVING,
 ROLLINGUP,
 FIXEDPANEL,
 USERDEFINED,
 NOTDEFINED);
END_TYPE;


 EXPRESS-G diagram

	Door Panel Operation Enum
	Énumération du fonctionnement du panneau de porte
