IfcBoundedSurface

Natural language names
deBegrenzte Oberfläche
enBounded Surface
frSurface englobée
Change log
ItemSPFXMLChangeDescription
IFC2x3 to IFC4
    IfcBoundedSurfaceMODIFIEDInstantiation changed to ABSTRACT.
Semantic definitions at the entity
Entity definition

An IfcBoundedSurface is a surface of finite area.

NOTE  Definition according to ISO/CD 10303-42:1992
A bounded surface is a surface of finite area with identifiable boundaries.
NOTE  Entity adapted from bounded_surface defined in ISO10303-42.
HISTORY  New entity in IFC2x
IFC4 CHANGE Entity made abstract.

Informal Propositions:

  1. A bounded surface has finite non-zero surface area.
  2. A bounded surface has boundary curves.
Inherited definitions from supertypes

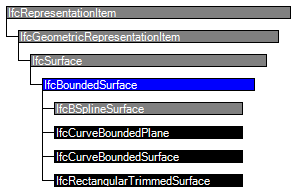

Entity inheritance IfcBSplineSurface IfcCurveBoundedPlane IfcCurveBoundedSurface IfcRectangularTrimmedSurface IfcSurface IfcGeometricRepresentationItem IfcRepresentationItem
Attribute inheritance
#AttributeTypeCardinalityDescriptionC
IfcRepresentationItem
LayerAssignmentIfcPresentationLayerAssignment
@AssignedItems
S[0:1]Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items. X
StyledByItemIfcStyledItem
@Item
S[0:1]Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve. X
IfcGeometricRepresentationItem
IfcSurface
Dim
:=3
IfcDimensionCount[1:1]The space dimensionality of IfcSurface. It is always a three-dimensional geometric representation item. X
IfcBoundedSurface
Formal representations
XSD Specification
 <xs:element name="IfcBoundedSurface" type="ifc:IfcBoundedSurface" abstract="true" substitutionGroup="ifc:IfcSurface" nillable="true"/>
 <xs:complexType name="IfcBoundedSurface" abstract="true">
  <xs:complexContent>
   <xs:extension base="ifc:IfcSurface"/>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcBoundedSurface
 ABSTRACT SUPERTYPE OF(ONEOF(IfcBSplineSurface, IfcCurveBoundedPlane, IfcCurveBoundedSurface, IfcRectangularTrimmedSurface))
 SUBTYPE OF (IfcSurface);
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram
