IfcBSplineSurface

Natural language names
deBézier-Spline-Fläche
enBSpline Surface
frSurface Bspline
Change log
ItemSPFXMLChangeDescription
IFC2x3 to IFC4
    IfcBSplineSurfaceADDED
Semantic definitions at the entity
Entity definition

The IfcBSplineSurface is a general form of rational or polynomial parametric surface.

NOTE  Definition according to ISO/CD 10303-42:1992
A b_spline_surface is a general form of rational or polynomial parametric surface which is represented by control points, basis functions, and possibly, weights. As with the corresponding curve entity it has some special subtypes where some of the data can be derived.
  1. The symbology used here is:
    K1 = upper_index_on_u_control_points
    K2 = upper_index_on_v_control_points
    Pij = control_points
    wij = weights
    d1 = u_degree
    d2 = v_degree

  2. The control points are ordered as
    P00, P01, P02, ......, PK1(K2-1), PK1K2
    The weights, in the case of the rational subtype, are ordered similarly.

  3. For each parameter, s = u or v, if k is the upper index on the control points and d is the degree for s, the knot array is an array of (k + d + 2) real numbers [s-d, ...., sk+1], such that for all indices j in [-d, k]; sjsj+1. This array is obtained from the appropriate u_knots or v_knots list by repeating each multiple knot according to the multiplicity.

    Nid, the ith normalised B-spline basis function of degree d, is defined on the subset [si-d, ...., si+1] of this array.

  4. Let L denote the number of distinct values amongst the knots in the knot list; L will be referred to as the ‘upper index on knots’. Let mj denote the multiplicity (i.e., number of repetitions) of the jth distinct knot value. Then:
    formula
    All knot multiplicities except the first and the last shall be in the range 1, ...., d; the first and last may have a maximum value of d+1. In evaluating the basis functions, a knot u of, e.g., multiplicity 3 is interpreted as a sequence u, u, u, in the knot array.

  5. The surface form is used to identify specific quadric surface types (which shall have degree two), ruled surfaces and surfaces of revolution. As with the b-spline curve, the surface form is informational only and the spline data takes precedence.

  6. The surface is to be interpreted as follows: In the polynomial case the surface is given by the equation:
    formula
    In the rational case the surface equation is:
    formula
NOTE  Entity adapted from b_spline_surface defined in ISO10303-42.
HISTORY  New entity in IFC4.
Attribute definitions
#AttributeTypeCardinalityDescription C
1UDegreeIfcInteger[1:1] Algebraic degree of basis functions in u.X
2VDegreeIfcInteger[1:1] Algebraic degree of basis functions in v.X
3ControlPointsListIfcCartesianPointL[2:?]L[2:?] This is a list of lists of control points.X
4SurfaceFormIfcBSplineSurfaceForm[1:1] Indicator of special surface types.X
5UClosedIfcLogical[1:1] Indication of whether the surface is closed in the u direction; this is for information only.X
6VClosedIfcLogical[1:1] Indication of whether the surface is closed in the v direction; this is for information only.X
7SelfIntersectIfcLogical[1:1] Flag to indicate whether, or not, surface is self-intersecting; this is for information only.X
UUpper
:=SIZEOF(ControlPointsList) - 1
IfcInteger[1:1]Upper index on control points in u direction. X
VUpper
:=SIZEOF(ControlPointsList[1]) - 1
IfcInteger[1:1]Upper index on control points in v direction. X
ControlPoints
:=IfcMakeArrayOfArray(ControlPointsList, 0,UUpper,0,VUpper)
IfcCartesianPointA[0:UUpper]A[0:VUpper]Array (two-dimensional) of control points defining surface geometry. This array is constructed from the control points list. X
Inherited definitions from supertypes

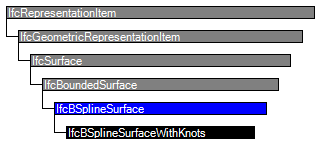

Entity inheritance IfcBSplineSurfaceWithKnots IfcBoundedSurface IfcSurface IfcGeometricRepresentationItem IfcRepresentationItem
Attribute inheritance
#AttributeTypeCardinalityDescriptionC
IfcRepresentationItem
LayerAssignmentIfcPresentationLayerAssignment
@AssignedItems
S[0:1]Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items. X
StyledByItemIfcStyledItem
@Item
S[0:1]Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve. X
IfcGeometricRepresentationItem
IfcSurface
Dim
:=3
IfcDimensionCount[1:1]The space dimensionality of IfcSurface. It is always a three-dimensional geometric representation item. X
IfcBoundedSurface
IfcBSplineSurface
1UDegreeIfcInteger[1:1] Algebraic degree of basis functions in u.X
2VDegreeIfcInteger[1:1] Algebraic degree of basis functions in v.X
3ControlPointsListIfcCartesianPointL[2:?]L[2:?] This is a list of lists of control points.X
4SurfaceFormIfcBSplineSurfaceForm[1:1] Indicator of special surface types.X
5UClosedIfcLogical[1:1] Indication of whether the surface is closed in the u direction; this is for information only.X
6VClosedIfcLogical[1:1] Indication of whether the surface is closed in the v direction; this is for information only.X
7SelfIntersectIfcLogical[1:1] Flag to indicate whether, or not, surface is self-intersecting; this is for information only.X
UUpper
:=SIZEOF(ControlPointsList) - 1
IfcInteger[1:1]Upper index on control points in u direction. X
VUpper
:=SIZEOF(ControlPointsList[1]) - 1
IfcInteger[1:1]Upper index on control points in v direction. X
ControlPoints
:=IfcMakeArrayOfArray(ControlPointsList, 0,UUpper,0,VUpper)
IfcCartesianPointA[0:UUpper]A[0:VUpper]Array (two-dimensional) of control points defining surface geometry. This array is constructed from the control points list. X
Formal representations
XSD Specification
 <xs:element name="IfcBSplineSurface" type="ifc:IfcBSplineSurface" abstract="true" substitutionGroup="ifc:IfcBoundedSurface" nillable="true"/>
 <xs:complexType name="IfcBSplineSurface" abstract="true">
  <xs:complexContent>
   <xs:extension base="ifc:IfcBoundedSurface">
    <xs:sequence>
     <xs:element name="ControlPointsList">
      <xs:complexType>
       <xs:sequence>
        <xs:element ref="ifc:IfcCartesianPoint" minOccurs="4" maxOccurs="unbounded"/>
       </xs:sequence>
       <xs:attribute ref="ifc:itemType" fixed="ifc:IfcCartesianPoint"/>
       <xs:attribute ref="ifc:cType" fixed="list list"/>
       <xs:attribute ref="ifc:arraySize" use="optional"/>
      </xs:complexType>
     </xs:element>
    </xs:sequence>
    <xs:attribute name="UDegree" type="ifc:IfcInteger" use="optional"/>
    <xs:attribute name="VDegree" type="ifc:IfcInteger" use="optional"/>
    <xs:attribute name="SurfaceForm" type="ifc:IfcBSplineSurfaceForm" use="optional"/>
    <xs:attribute name="UClosed" type="ifc:IfcLogical" use="optional"/>
    <xs:attribute name="VClosed" type="ifc:IfcLogical" use="optional"/>
    <xs:attribute name="SelfIntersect" type="ifc:IfcLogical" use="optional"/>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcBSplineSurface
 ABSTRACT SUPERTYPE OF(IfcBSplineSurfaceWithKnots)
 SUBTYPE OF (IfcBoundedSurface);
  UDegree : IfcInteger;
  VDegree : IfcInteger;
  ControlPointsList : LIST [2:?] OF LIST [2:?] OF IfcCartesianPoint;
  SurfaceForm : IfcBSplineSurfaceForm;
  UClosed : IfcLogical;
  VClosed : IfcLogical;
  SelfIntersect : IfcLogical;
 DERIVE
  UUpper : IfcInteger := SIZEOF(ControlPointsList) - 1;
  VUpper : IfcInteger := SIZEOF(ControlPointsList[1]) - 1;
  ControlPoints : ARRAY [0:UUpper] OF ARRAY [0:VUpper] OF IfcCartesianPoint := IfcMakeArrayOfArray(ControlPointsList, 0,UUpper,0,VUpper);
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram
