IfcCircle

Natural language names
deKreis
enCircle
frCercle
Semantic definitions at the entity
Entity definition

An IfcCircle is a curve consisting of a set of points having equal distance from the center.

NOTE  A circular arc segment is defined by using the IfcTrimmedCurve with BasisCurve being an IfcCircle.

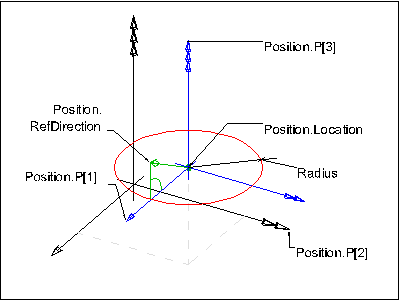

Figure 340 illustrates the definition of IfcCircle within a three-dimensional position coordinate system placed within the object coordinate system of an element.

axis1 placement

Figure 340 — Circle layout



NOTE Definition according to ISO/CD 10303-42:1992
A circle is defined by a radius and the location and orientation of the circle. Interpretation of data should be as follows:
C = SELF\IfcConic.Position.Location
x = SELF\IfcConic.Position.P[1]
y = SELF\IfcConic.Position.P[2]
z = SELF\IfcConic.Position.P[3]
R = Radius

and the circle is parameterized as

formula

The parameterization range is 0 ≤ u ≤ 2π (0 ≤ u ≤ 360 degree).
In the placement coordinate system defined above, the circle is the equation C = 0, where

formula

The positive sense of the circle at any point is in the tangent direction, T, to the curve at the point, where

formula
NOTE  Entity adapted from circle defined in ISO 10303-42
HISTORY  New entity in IFC1.0
Attribute definitions
#AttributeTypeCardinalityDescription C
2RadiusIfcPositiveLengthMeasure[1:1] The radius of the circle, which shall be greater than zero.X
Inherited definitions from supertypes

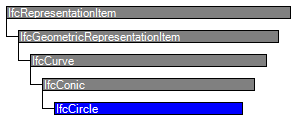

Entity inheritance IfcConic IfcCurve IfcGeometricRepresentationItem IfcRepresentationItem
Attribute inheritance
#AttributeTypeCardinalityDescriptionC
IfcRepresentationItem
LayerAssignmentIfcPresentationLayerAssignment
@AssignedItems
S[0:1]Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items. X
StyledByItemIfcStyledItem
@Item
S[0:1]Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve. X
IfcGeometricRepresentationItem
IfcCurve
Dim
:=IfcCurveDim(SELF)
IfcDimensionCount[1:1]The space dimensionality of this abstract class, defined differently for all subtypes, i.e. for IfcLine, IfcConic and IfcBoundedCurve. X
IfcConic
1PositionIfcAxis2Placement[1:1] The location and orientation of the conic. Further details of the interpretation of this attribute are given for the individual subtypes." X
IfcCircle
2RadiusIfcPositiveLengthMeasure[1:1] The radius of the circle, which shall be greater than zero.X
Formal representations
XSD Specification
 <xs:element name="IfcCircle" type="ifc:IfcCircle" substitutionGroup="ifc:IfcConic" nillable="true"/>
 <xs:complexType name="IfcCircle">
  <xs:complexContent>
   <xs:extension base="ifc:IfcConic">
    <xs:attribute name="Radius" type="ifc:IfcPositiveLengthMeasure" use="optional"/>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcCircle
 SUBTYPE OF (IfcConic);
  Radius : IfcPositiveLengthMeasure;
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram
