IfcConic

Natural language names
deKonische Form
enConic
frConique
Semantic definitions at the entity
Entity definition

An IfcConic is a parameterized planar curve.

NOTE  Definition according to ISO/CD 10303-42:1992
A conic is a planar curve which could be produced by intersecting a plane with a cone. A conic is defined in terms of its intrinsic geometric properties rather than being described in terms of other geometry. A conic entity always has a placement coordinate system defined by axis2_placement; the parametric representation is defined in terms of this placement coordinate system.
NOTE Entity adapted from conic defined in ISO 10303-42
HISTORY  New entity in IFC1.0
Attribute definitions
#AttributeTypeCardinalityDescription C
1PositionIfcAxis2Placement[1:1] The location and orientation of the conic. Further details of the interpretation of this attribute are given for the individual subtypes." X
Inherited definitions from supertypes

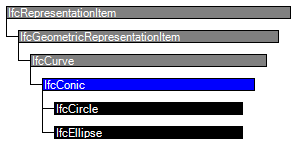

Entity inheritance IfcCircle IfcEllipse IfcCurve IfcGeometricRepresentationItem IfcRepresentationItem
Attribute inheritance
#AttributeTypeCardinalityDescriptionC
IfcRepresentationItem
LayerAssignmentIfcPresentationLayerAssignment
@AssignedItems
S[0:1]Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items. X
StyledByItemIfcStyledItem
@Item
S[0:1]Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve. X
IfcGeometricRepresentationItem
IfcCurve
Dim
:=IfcCurveDim(SELF)
IfcDimensionCount[1:1]The space dimensionality of this abstract class, defined differently for all subtypes, i.e. for IfcLine, IfcConic and IfcBoundedCurve. X
IfcConic
1PositionIfcAxis2Placement[1:1] The location and orientation of the conic. Further details of the interpretation of this attribute are given for the individual subtypes." X
Formal representations
XSD Specification
 <xs:element name="IfcConic" type="ifc:IfcConic" abstract="true" substitutionGroup="ifc:IfcCurve" nillable="true"/>
 <xs:complexType name="IfcConic" abstract="true">
  <xs:complexContent>
   <xs:extension base="ifc:IfcCurve">
    <xs:sequence>
     <xs:element name="Position">
      <xs:complexType>
       <xs:group ref="ifc:IfcAxis2Placement"/>
      </xs:complexType>
     </xs:element>
    </xs:sequence>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcConic
 ABSTRACT SUPERTYPE OF(ONEOF(IfcCircle, IfcEllipse))
 SUBTYPE OF (IfcCurve);
  Position : IfcAxis2Placement;
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram
