| Item | SPF | XML | Change | Description | IFC2x3 to IFC4 |
|---|---|---|---|---|
| IfcDistributionCircuit | ADDED |
A distribution circuit is a partition of a distribution system that is conditionally switched such as an electrical circuit.
HISTORY New entity in IFC4.
IFC4 CHANGE For electrical power systems, IfcElectricalCircuit has been used for low-voltage (12-1000 V) power circuits and has been replaced by IfcDistributionCircuit in IFC4; IfcDistributionSystem with PredefinedType 'ELECTRICAL' should be used for overall power systems, and IfcDistributionCircuit with PredefinedType 'ELECTRICAL' should be used for each switched circuit.
Composition Use Definition
An IfcDistributionCircuit may aggregate an IfcDistributionSystem using the IfcRelAggregates relationship where RelatingObject refers to the IfcDistributionSystem and RelatedObjects includes one or more IfcDistributionCircuit groups.
An IfcDistributionCircuit may be aggregated into sub-circuits using the IfcRelAggregates relationship where RelatingObject refers to the parent IfcDistributionCircuit and RelatedObjects refers to one or more IfcDistributionCircuit sub-circuits.
Assignment Use Definition
An IfcDistributionCircuit should be assigned to an IfcDistributionPort on an IfcFlowController element indicating the host or origination of the system using the IfcRelAssignsToProduct relationship.
Each device whose operation is conditional based upon the state of the circuit is assigned to the IfcDistributionCircuit via the IfcRelAssignsToGroup relationship. An IfcDistributionElement may belong to multiple systems or circuits, however only one IfcDistributionSystem or IfcDistributionCircuit of a particular PredefinedType.
| # | Attribute | Type | Cardinality | Description | C |
|---|---|---|---|---|---|
| IfcRoot | |||||
| 1 | GlobalId | IfcGloballyUniqueId | [1:1] | Assignment of a globally unique identifier within the entire software world. | X |
| 2 | OwnerHistory | IfcOwnerHistory | [0:1] |
Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE only the last modification in stored - either as addition, deletion or modification. | X |
| 3 | Name | IfcLabel | [0:1] | Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. | X |
| 4 | Description | IfcText | [0:1] | Optional description, provided for exchanging informative comments. | X |
| IfcObjectDefinition | |||||
| HasAssignments | IfcRelAssigns @RelatedObjects | S[0:?] | Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. | X | |
| Nests | IfcRelNests @RelatedObjects | S[0:1] | References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only). | X | |
| IsNestedBy | IfcRelNests @RelatingObject | S[0:?] | References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types). | X | |
| HasContext | IfcRelDeclares @RelatedDefinitions | S[0:1] | References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object. | X | |
| IsDecomposedBy | IfcRelAggregates @RelatingObject | S[0:?] | References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts). | X | |
| Decomposes | IfcRelAggregates @RelatedObjects | S[0:1] | References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only). | X | |
| HasAssociations | IfcRelAssociates @RelatedObjects | S[0:?] | Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. | X | |
| IfcObject | |||||
| 5 | ObjectType | IfcLabel | [0:1] |
The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.
| X |
| IsDeclaredBy | IfcRelDefinesByObject @RelatedObjects | S[0:1] | Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes. | X | |
| Declares | IfcRelDefinesByObject @RelatingObject | S[0:?] | Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes. | X | |
| IsTypedBy | IfcRelDefinesByType @RelatedObjects | S[0:1] | Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type. | X | |
| IsDefinedBy | IfcRelDefinesByProperties @RelatedObjects | S[0:?] | Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object. | X | |
| IfcGroup | |||||
| IsGroupedBy | IfcRelAssignsToGroup @RelatingGroup | S[0:?] | Reference to the relationship IfcRelAssignsToGroup that assigns the one to many group members to the IfcGroup object. | X | |
| IfcSystem | |||||
| ServicesBuildings | IfcRelServicesBuildings @RelatingSystem | S[0:1] | Reference to the | X | |
| IfcDistributionSystem | |||||
| 6 | LongName | IfcLabel | [0:1] |
Long name for a distribution system, used for informal purposes. It should be used, if available, in conjunction with the inherited Name attribute.
NOTE In many scenarios the Name attribute refers to the short name or number of a distribution system or branch circuit, and the LongName refers to a descriptive name. | X |
| 7 | PredefinedType | IfcDistributionSystemEnum | [0:1] | Predefined types of distribution systems. | X |
| IfcDistributionCircuit | |||||
| # | Concept | Model View |
|---|---|---|
| IfcRoot | ||
| Software Identity | Common Use Definitions | |
| Revision Control | Common Use Definitions | |
| IfcObject | ||
| Object Occurrence Predefined Type | Common Use Definitions | |
| IfcGroup | ||
| IfcSystem | ||
| IfcDistributionSystem | ||
| Property Sets for Objects | Common Use Definitions | |
| Aggregation | Common Use Definitions | |
| Group Assignment | Common Use Definitions | |
<xs:element name="IfcDistributionCircuit" type="ifc:IfcDistributionCircuit" substitutionGroup="ifc:IfcDistributionSystem" nillable="true"/>
<xs:complexType name="IfcDistributionCircuit">
<xs:complexContent>
<xs:extension base="ifc:IfcDistributionSystem"/>
</xs:complexContent>
</xs:complexType>
ENTITY IfcDistributionCircuit
SUBTYPE OF (IfcDistributionSystem);
END_ENTITY;

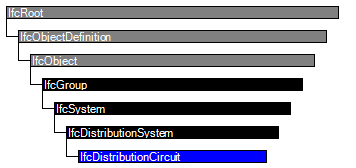

EXPRESS-G diagram
