IfcStructuralLoadSingleDisplacement

Semantic definitions at the entity

Entity definition

Instances of the entity IfcStructuralLoadSingleDisplacement shall be used to define displacements.

HISTORY New entity in IFC2x2.

Attribute definitions

#	Attribute	Type	Cardinality	Description	C
2	DisplacementX	IfcLengthMeasure	[0:1]	Displacement in x-direction.	X
3	DisplacementY	IfcLengthMeasure	[0:1]	Displacement in y-direction.	X
4	DisplacementZ	IfcLengthMeasure	[0:1]	Displacement in z-direction.	X
5	RotationalDisplacementRX	IfcPlaneAngleMeasure	[0:1]	Rotation about the x-axis.	X
6	RotationalDisplacementRY	IfcPlaneAngleMeasure	[0:1]	Rotation about the y-axis.	X
7	RotationalDisplacementRZ	IfcPlaneAngleMeasure	[0:1]	Rotation about the z-axis.	X

Inherited definitions from supertypes

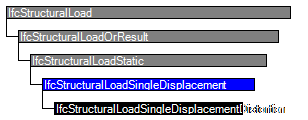

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	C
IfcStructuralLoad
1	Name	IfcLabel	[0:1]	Optionally defines a name for this load.	X
IfcStructuralLoadOrResult
IfcStructuralLoadStatic
IfcStructuralLoadSingleDisplacement
2	DisplacementX	IfcLengthMeasure	[0:1]	Displacement in x-direction.	X
3	DisplacementY	IfcLengthMeasure	[0:1]	Displacement in y-direction.	X
4	DisplacementZ	IfcLengthMeasure	[0:1]	Displacement in z-direction.	X
5	RotationalDisplacementRX	IfcPlaneAngleMeasure	[0:1]	Rotation about the x-axis.	X
6	RotationalDisplacementRY	IfcPlaneAngleMeasure	[0:1]	Rotation about the y-axis.	X
7	RotationalDisplacementRZ	IfcPlaneAngleMeasure	[0:1]	Rotation about the z-axis.	X

Formal representations

XSD Specification

 <xs:element name="IfcStructuralLoadSingleDisplacement" type="ifc:IfcStructuralLoadSingleDisplacement" substitutionGroup="ifc:IfcStructuralLoadStatic" nillable="true"/>

 <xs:complexType name="IfcStructuralLoadSingleDisplacement">

  <xs:complexContent>

   <xs:extension base="ifc:IfcStructuralLoadStatic">

    <xs:attribute name="DisplacementX" type="ifc:IfcLengthMeasure" use="optional"/>

    <xs:attribute name="DisplacementY" type="ifc:IfcLengthMeasure" use="optional"/>

    <xs:attribute name="DisplacementZ" type="ifc:IfcLengthMeasure" use="optional"/>

    <xs:attribute name="RotationalDisplacementRX" type="ifc:IfcPlaneAngleMeasure" use="optional"/>

    <xs:attribute name="RotationalDisplacementRY" type="ifc:IfcPlaneAngleMeasure" use="optional"/>

    <xs:attribute name="RotationalDisplacementRZ" type="ifc:IfcPlaneAngleMeasure" use="optional"/>

   </xs:extension>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcStructuralLoadSingleDisplacement

 SUPERTYPE OF(IfcStructuralLoadSingleDisplacementDistortion)

 SUBTYPE OF (IfcStructuralLoadStatic);

  DisplacementX : OPTIONAL IfcLengthMeasure;

  DisplacementY : OPTIONAL IfcLengthMeasure;

  DisplacementZ : OPTIONAL IfcLengthMeasure;

  RotationalDisplacementRX : OPTIONAL IfcPlaneAngleMeasure;

  RotationalDisplacementRY : OPTIONAL IfcPlaneAngleMeasure;

  RotationalDisplacementRZ : OPTIONAL IfcPlaneAngleMeasure;

END_ENTITY;

 EXPRESS-G diagram

	Verschiebung und/ oder Verdrehung
	Structural Load Single Displacement
