IfcStructuralLoadSingleDisplacementDistortion

Semantic definitions at the entity

Entity definition

Defines a displacement with warping.

HISTORY New entity in IFC2x2.

Attribute definitions

#	Attribute	Type	Cardinality	Description	C
8	Distortion	IfcCurvatureMeasure	[0:1]	The distortion curvature (warping, i.e. a cross-sectional deplanation) given to the displacement load.	X

Inherited definitions from supertypes

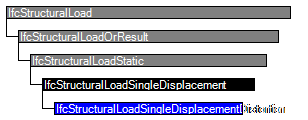

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	C
IfcStructuralLoad
1	Name	IfcLabel	[0:1]	Optionally defines a name for this load.	X
IfcStructuralLoadOrResult
IfcStructuralLoadStatic
IfcStructuralLoadSingleDisplacement
2	DisplacementX	IfcLengthMeasure	[0:1]	Displacement in x-direction.	X
3	DisplacementY	IfcLengthMeasure	[0:1]	Displacement in y-direction.	X
4	DisplacementZ	IfcLengthMeasure	[0:1]	Displacement in z-direction.	X
5	RotationalDisplacementRX	IfcPlaneAngleMeasure	[0:1]	Rotation about the x-axis.	X
6	RotationalDisplacementRY	IfcPlaneAngleMeasure	[0:1]	Rotation about the y-axis.	X
7	RotationalDisplacementRZ	IfcPlaneAngleMeasure	[0:1]	Rotation about the z-axis.	X
IfcStructuralLoadSingleDisplacementDistortion
8	Distortion	IfcCurvatureMeasure	[0:1]	The distortion curvature (warping, i.e. a cross-sectional deplanation) given to the displacement load.	X

Formal representations

XSD Specification

 <xs:element name="IfcStructuralLoadSingleDisplacementDistortion" type="ifc:IfcStructuralLoadSingleDisplacementDistortion" substitutionGroup="ifc:IfcStructuralLoadSingleDisplacement" nillable="true"/>

 <xs:complexType name="IfcStructuralLoadSingleDisplacementDistortion">

  <xs:complexContent>

   <xs:extension base="ifc:IfcStructuralLoadSingleDisplacement">

    <xs:attribute name="Distortion" type="ifc:IfcCurvatureMeasure" use="optional"/>

   </xs:extension>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcStructuralLoadSingleDisplacementDistortion

 SUBTYPE OF (IfcStructuralLoadSingleDisplacement);

  Distortion : OPTIONAL IfcCurvatureMeasure;

END_ENTITY;

 EXPRESS-G diagram

	Verschiebung und/ oder Verdrehung und/ oder Verwölbung
	Structural Load Single Displacement Distortion
