Natural language names
 | Einzellast |
 | Structural Load Single Force |
| Einzellast |
| Structural Load Single Force |
Instances of the entity IfcStructuralLoadSingleForce shall be used to define the forces and moments of an action operating on a single point.
HISTORY New entity in IFC2x2.

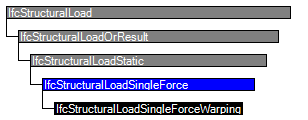

| # | Attribute | Type | Cardinality | Description | C |
|---|---|---|---|---|---|
| 2 | ForceX | IfcForceMeasure | [0:1] | Force value in x-direction. | X |
| 3 | ForceY | IfcForceMeasure | [0:1] | Force value in y-direction. | X |
| 4 | ForceZ | IfcForceMeasure | [0:1] | Force value in z-direction. | X |
| 5 | MomentX | IfcTorqueMeasure | [0:1] | Moment about the x-axis. | X |
| 6 | MomentY | IfcTorqueMeasure | [0:1] | Moment about the y-axis. | X |
| 7 | MomentZ | IfcTorqueMeasure | [0:1] | Moment about the z-axis. | X |
| # | Attribute | Type | Cardinality | Description | C |
|---|---|---|---|---|---|
| IfcStructuralLoad | |||||
| 1 | Name | IfcLabel | [0:1] | Optionally defines a name for this load. | X |
| IfcStructuralLoadOrResult | |||||
| IfcStructuralLoadStatic | |||||
| IfcStructuralLoadSingleForce | |||||
| 2 | ForceX | IfcForceMeasure | [0:1] | Force value in x-direction. | X |
| 3 | ForceY | IfcForceMeasure | [0:1] | Force value in y-direction. | X |
| 4 | ForceZ | IfcForceMeasure | [0:1] | Force value in z-direction. | X |
| 5 | MomentX | IfcTorqueMeasure | [0:1] | Moment about the x-axis. | X |
| 6 | MomentY | IfcTorqueMeasure | [0:1] | Moment about the y-axis. | X |
| 7 | MomentZ | IfcTorqueMeasure | [0:1] | Moment about the z-axis. | X |
<xs:element name="IfcStructuralLoadSingleForce" type="ifc:IfcStructuralLoadSingleForce" substitutionGroup="ifc:IfcStructuralLoadStatic" nillable="true"/>
<xs:complexType name="IfcStructuralLoadSingleForce">
<xs:complexContent>
<xs:extension base="ifc:IfcStructuralLoadStatic">
<xs:attribute name="ForceX" type="ifc:IfcForceMeasure" use="optional"/>
<xs:attribute name="ForceY" type="ifc:IfcForceMeasure" use="optional"/>
<xs:attribute name="ForceZ" type="ifc:IfcForceMeasure" use="optional"/>
<xs:attribute name="MomentX" type="ifc:IfcTorqueMeasure" use="optional"/>
<xs:attribute name="MomentY" type="ifc:IfcTorqueMeasure" use="optional"/>
<xs:attribute name="MomentZ" type="ifc:IfcTorqueMeasure" use="optional"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
ENTITY IfcStructuralLoadSingleForce
SUPERTYPE OF(IfcStructuralLoadSingleForceWarping)
SUBTYPE OF (IfcStructuralLoadStatic);
ForceX : OPTIONAL IfcForceMeasure;
ForceY : OPTIONAL IfcForceMeasure;
ForceZ : OPTIONAL IfcForceMeasure;
MomentX : OPTIONAL IfcTorqueMeasure;
MomentY : OPTIONAL IfcTorqueMeasure;
MomentZ : OPTIONAL IfcTorqueMeasure;
END_ENTITY;
EXPRESS-G diagram
