The abstract entity IfcStructuralActivity combines the definition of actions (such as forces, displacements, etc.) and reactions (support reactions, internal forces, deflections, etc.) which are specified by using the basic load definitions from the IfcStructuralLoadResource.
The differentiation between actions and reactions is realized by instantiating objects either from subclasses of IfcStructuralAction or IfcStructuralReaction respectively. They inherit commonly needed attributes from the abstract superclass IfcStructuralActivity, notably the relationship which connects actions or reactions with connections, analysis members, or elements (subtypes of IfcStructuralItem or IfcElement).
NOTE Instances of IfcStructuralActivity which are connected with an IfcElement are subject to agreements outside the scope of this specification.
NOTE The semantics of IfcStructuralActivity are only fully defined if an activity instance is connected with exactly one structural item. The inverse attribute AssignedToStructuralItem can only be empty in incomplete models or in conceptual models which are not yet ready for analysis.
HISTORY New entity in IFC2x2.
IFC4 CHANGE Cardinality of attribute AssignedToStructuralItem relaxed from 1 to 0..1 in order to allow for schema-compliant incomplete models as well as conceptual models without load—item relationships.
Coordinate Systems:
The following coordinate systems are distinguished:
Representation items in topology representations are always given within the ObjectPlacement, i.e. in so-called global coordinates (global with respect to the IfcStructuralAnalysisModel to which this activity belongs).
Locations of the load objects in the AppliedLoad attribute (if of type IfcStructuralLoadConfiguration) are always given in local coordinates.
Directions of the load objects in the AppliedLoad attribute refer to global or local coordinates according to the GlobalOrLocal attribute.
The ObjectPlacement and Representation are sometimes not explicitly instantiated; instead they may be implied as described below. Global and local coordinate systems are then determined in the same way as with explicit placement and representation.
Topology Use Definitions:
Instances of IfcStructuralActivity which are connected with a structural item of same dimensionality, i.e.
shall not have an ObjectPlacement nor a Representation. It is implied that the placement and representation of the IfcStructuralActivity is the same as the ones of the IfcStructuralItem.
Instances of IfcStructuralActivity which are connected with
shall have a topology representation as specified below. It includes a placement and a product representation. The IfcProductRepresentation shall be given by an item in a Representation of type IfcTopologyRepresentation.
Instances of IfcStructuralActivity which are connected with
shall have a shape representation as specified below. It includes a placement and a product representation. The IfcProductRepresentation shall be given by items in a Representation of type IfcShapeRepresentation. Shape representation and topology representation may be combined.
Local Placement
The local placement for IfcStructuralActivity is defined in its supertype IfcProduct. It is defined by the IfcLocalPlacement, which establishes a global coordinate system which shall be common to all items and activities in an IfcStructuralAnalysisModel.
Topology Representation
Instances of IfcStructuralActivity which act on parts of a surface item shall have a topology representation given by a face with underlying surface geometry, IfcFaceSurface, which should be the single item of IfcTopologyRepresentation.Items. The surface establishes a local coordinate system of the activity:
- RepresentationIdentifier: 'Reference'
- RepresentationType: 'Face'
Instances of IfcStructuralActivity which act on a curve on a surface item shall have a topology representation given by an edge (IfcEdge or subtype), which should be the single item of IfcTopologyRepresentation.Items. The curve geometry shall be compatible with the surface geometry of the connected item. In conjunction with this surface, the curve establishes a local coordinate system of the activity:
- RepresentationIdentifier: 'Reference'
- RepresentationType: 'Edge'
NOTE While an IfcEdge (or IfcOrientedEdge with underlying IfcEdge) does not provide an explicit underlying curve geometry, it may be used to imply an underlying straight line as reference curve with the origin of the curve parameter at the start vertex point.
Instances of IfcStructuralActivity which act on a single point on a curve or surface item shall have a topology representation given by an IfcVertexPoint, which should be the single item of IfcTopologyRepresentation.Items. The point geometry shall be compatible with the curve or surface geometry of the connected item. The local coordinate system of the activity is oriented by the curve or surface geometry of the connected item as described above for activities with edge or face topology.
- RepresentationIdentifier: 'Reference'
- RepresentationType: 'Vertex'
Shape Representation
Instances of IfcStructuralActivity which act on a surface item and are specified by isocontours (level sets) shall have a shape representation given by a set of curves on a surface, IfcPCurve. The basis surface shall comply with or preferably be identical with the surface of the structural item to which the activity is connected. The representation identifier and type of this geometric representation is:
- RepresentationIdentifier: 'Level set'
- RepresentationType: 'GeometricCurveSet'
| # | Attribute | Type | Cardinality | Description | G |
|---|---|---|---|---|---|
| 8 | AppliedLoad | IfcStructuralLoad |
Load or result resource object which defines the load type, direction, and load values.
In case of activities which are variably distributed over curves or surfaces, IfcStructuralLoadConfiguration is used which provides a list of load samples and their locations within the load distribution, measured in local coordinates of the curve or surface on which this activity acts. The contents of this load or result distribution may be further restricted by definitions at subtypes of IfcStructuralActivity. | X | |
| 9 | GlobalOrLocal | IfcGlobalOrLocalEnum |
Indicates whether the load directions refer to the global coordinate system (global to
the analysis model, i.e. as established by IfcStructuralAnalysisModel.SharedPlacement)
or to the local coordinate system (local to the activity or connected item, as established by
an explicit or implied representation and its parameter space).
NOTE, the informal definition of IfcRepresentationResource.IfcGlobalOrLocalEnum doe s not distinguish between "global coordinate system" and "world coordinate system". On the other hand, this distinction is necessary in the IfcStructuralAnalysisDomain where the shared "global" coordinate system of an analysis model may very well not be the same as the project-wide world coordinate system. NOTE In the scope of IfcStructuralActivity.GlobalOrLocal, the meaning of GLOBAL_COORDS is therefore not to be taken as world coordinate system but as the analysis model specific shared coordinate system. In contrast, LOCAL_COORDS is to be taken as coordinates which are local to individual structural items and activities, as established by subclass-specific geometry use definitions. | X | |
| AssignedToStructuralItem | IfcRelConnectsStructuralActivity @RelatedStructuralActivity | S[0:1] | Reference to the IfcRelConnectsStructuralActivity relationship by which activities are connected with structural items. | X |
| # | Attribute | Type | Cardinality | Description | G |
|---|---|---|---|---|---|
| IfcRoot | |||||
| 1 | GlobalId | IfcGloballyUniqueId | Assignment of a globally unique identifier within the entire software world. | X | |
| 2 | OwnerHistory | IfcOwnerHistory | ? |
Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE only the last modification in stored - either as addition, deletion or modification. IFC4 CHANGE The attribute has been changed to be OPTIONAL. | X |
| 3 | Name | IfcLabel | ? | Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. | X |
| 4 | Description | IfcText | ? | Optional description, provided for exchanging informative comments. | X |
| IfcObjectDefinition | |||||
| HasAssignments | IfcRelAssigns @RelatedObjects | S[0:?] | Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. | X | |
| Nests | IfcRelNests @RelatedObjects | S[0:1] | References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE The inverse attribute datatype has been added and separated from Decomposes defined at IfcObjectDefinition. | X | |
| IsNestedBy | IfcRelNests @RelatingObject | S[0:?] | References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).
IFC4 CHANGE The inverse attribute datatype has been added and separated from IsDecomposedBy defined at IfcObjectDefinition. | X | |
| HasContext | IfcRelDeclares @RelatedDefinitions | S[0:1] | References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.
IFC4 CHANGE The inverse attribute datatype has been added. | X | |
| IsDecomposedBy | IfcRelAggregates @RelatingObject | S[0:?] | References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).
IFC4 CHANGE The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates. | X | |
| Decomposes | IfcRelAggregates @RelatedObjects | S[0:1] | References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates. | X | |
| HasAssociations | IfcRelAssociates @RelatedObjects | S[0:?] | Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. | X | |
| IfcObject | |||||
| 5 | ObjectType | IfcLabel | ? |
The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.
| X |
| IsDeclaredBy | IfcRelDefinesByObject @RelatedObjects | S[0:1] | Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.
IFC4 CHANGE New inverse relationship, change made with upward compatibility for file based exchange. | X | |
| Declares | IfcRelDefinesByObject @RelatingObject | S[0:?] | Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.
IFC4 CHANGE New inverse relationship, change made with upward compatibility for file based exchange. | X | |
| IsTypedBy | IfcRelDefinesByType @RelatedObjects | S[0:1] | Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type.
IFC4 CHANGE New inverse relationship, the link to IfcRelDefinesByType had previously be included in the inverse relationship IfcRelDefines. Change made with upward compatibility for file based exchange. | X | |
| IsDefinedBy | IfcRelDefinesByProperties @RelatedObjects | S[0:?] | Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object.
IFC4 CHANGE The data type has been changed from IfcRelDefines to IfcRelDefinesByProperties with upward compatibility for file based exchange. | X | |
| IfcProduct | |||||
| 6 | ObjectPlacement | IfcObjectPlacement | ? | Placement of the product in space, the placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constraint (e.g. relative to grid axes). It is determined by the various subtypes of IfcObjectPlacement, which includes the axis placement information to determine the transformation for the object coordinate system. | X |
| 7 | Representation | IfcProductRepresentation | ? | Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement. | X |
| ReferencedBy | IfcRelAssignsToProduct @RelatingProduct | S[0:?] | Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product. | X | |
| IfcStructuralActivity | |||||
| 8 | AppliedLoad | IfcStructuralLoad |
Load or result resource object which defines the load type, direction, and load values.
In case of activities which are variably distributed over curves or surfaces, IfcStructuralLoadConfiguration is used which provides a list of load samples and their locations within the load distribution, measured in local coordinates of the curve or surface on which this activity acts. The contents of this load or result distribution may be further restricted by definitions at subtypes of IfcStructuralActivity. | X | |
| 9 | GlobalOrLocal | IfcGlobalOrLocalEnum |
Indicates whether the load directions refer to the global coordinate system (global to
the analysis model, i.e. as established by IfcStructuralAnalysisModel.SharedPlacement)
or to the local coordinate system (local to the activity or connected item, as established by
an explicit or implied representation and its parameter space).
NOTE, the informal definition of IfcRepresentationResource.IfcGlobalOrLocalEnum doe s not distinguish between "global coordinate system" and "world coordinate system". On the other hand, this distinction is necessary in the IfcStructuralAnalysisDomain where the shared "global" coordinate system of an analysis model may very well not be the same as the project-wide world coordinate system. NOTE In the scope of IfcStructuralActivity.GlobalOrLocal, the meaning of GLOBAL_COORDS is therefore not to be taken as world coordinate system but as the analysis model specific shared coordinate system. In contrast, LOCAL_COORDS is to be taken as coordinates which are local to individual structural items and activities, as established by subclass-specific geometry use definitions. | X | |
| AssignedToStructuralItem | IfcRelConnectsStructuralActivity @RelatedStructuralActivity | S[0:1] | Reference to the IfcRelConnectsStructuralActivity relationship by which activities are connected with structural items. | X | |
| # | Concept | Template | Model View |
|---|---|---|---|
| IfcRoot | |||
| Identity | Software Identity | General Usage | |
| Revision Control | Revision Control | General Usage | |
| IfcObjectDefinition | |||
| Classification Association | Classification Association | General Usage | |
| IfcObject | |||
| Object User Identity | Object User Identity | General Usage | |
| Object Predefined Type | Object Predefined Type | General Usage | |
| Object Typing | Object Typing | General Usage | |
| Property Sets for Objects | Property Sets for Objects | General Usage | |
| Property Sets with Override | Property Sets with Override | General Usage | |
| IfcProduct | |||
| Product Placement | Product Placement | General Usage | |
| Product Geometric Representation | Product Geometric Representation | General Usage | |
<xs:element name="IfcStructuralActivity" type="ifc:IfcStructuralActivity" abstract="true" substitutionGroup="ifc:IfcProduct" nillable="true"/>
<xs:complexType name="IfcStructuralActivity" abstract="true">
<xs:complexContent>
<xs:extension base="ifc:IfcProduct">
<xs:sequence>
<xs:element name="AppliedLoad" type="ifc:IfcStructuralLoad" nillable="true"/>
</xs:sequence>
<xs:attribute name="GlobalOrLocal" type="ifc:IfcGlobalOrLocalEnum" use="optional"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
ENTITY IfcStructuralActivity
ABSTRACT SUPERTYPE OF(ONEOF(IfcStructuralAction, IfcStructuralReaction))
SUBTYPE OF (IfcProduct);
AppliedLoad : IfcStructuralLoad;
GlobalOrLocal : IfcGlobalOrLocalEnum;
INVERSE
AssignedToStructuralItem : SET [0:1] OF IfcRelConnectsStructuralActivity FOR RelatedStructuralActivity;
END_ENTITY;
References: IfcRelConnectsStructuralActivity

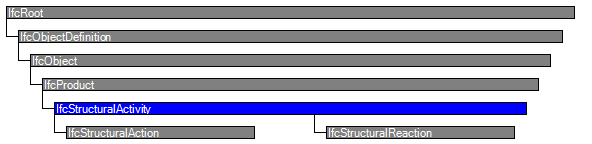

EXPRESS-G diagram
