Handles.ArrowCap 箭头

static function ArrowCap (controlID : int, position : Vector3, rotation : Quaternion, size : float) : void

Description描述

Draw an arrow like those used by the move tool.

绘制箭头，像那些用于移动工具。

Note: Use HandleUtility.GetHandleSize where you might want to have constant screen-sized handles.

注意：使用HandleUtility.GetHandleSize你可能希望有恒定屏幕大小的控制柄。

Handles.ArrowCap 箭头

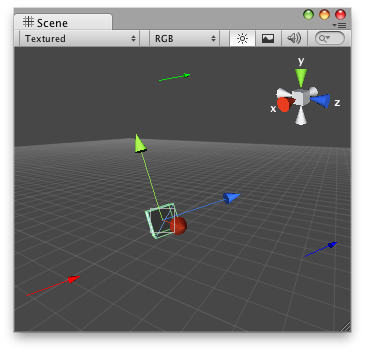

Arrow Cap in the Scene View.
在场景视图中的箭头控制柄

// Draw one Arrow on each axis of any GameObject
// that has the "DummyArrowCapScript.js" script attached.
//在带有DummyArrowCapScript.js脚本的任意游戏物体每个轴上绘制一个箭头
@CustomEditor (DummyArrowCapScript)
class ArrowCap extends Editor {

	var arrowSize : float = 1;

	function OnSceneGUI () {
		Handles.color = Color.red;
		Handles.ArrowCap(0,
			target.transform.position + Vector3(5,0,0),
			target.transform.rotation,
			arrowSize);
		Handles.color = Color.green;
		Handles.ArrowCap(0,
			target.transform.position + Vector3(0,5,0),
			target.transform.rotation,
			arrowSize);
		Handles.color = Color.blue;
		Handles.ArrowCap(0,
			target.transform.position + Vector3(0,0,5),
			target.transform.rotation,
			arrowSize);
		}
}

And the script attached to this Handle:

该脚本附加到这个控制柄物体：

//DummyArrowCapScript.js
Debug.Log("I have ArrowCap Handles attached to this transform!");

最后修改：2011年7月8日 Friday 16:30
