Handles.CircleCap 圆形

static function CircleCap (controlID : int, position : Vector3, rotation : Quaternion, size : float) : void

Description描述

Draw a camera-facing Circle. Pass this into handle functions.

绘制圆形，传递到控制柄函数。

Note: Use HandleUtility.GetHandleSize where you might want to have constant screen-sized handles.

注意：使用HandleUtility.GetHandleSize你可能希望有恒定屏幕大小的控制柄。

Handles.CircleCap 圆形

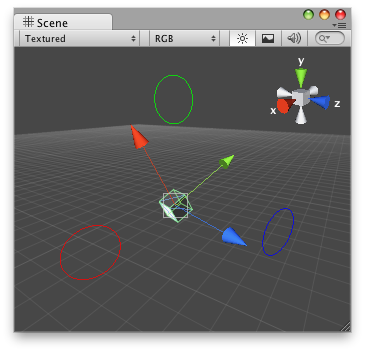

Circle Cap in the scene view.
在场景视图中的圆形控制柄

// Draw one Circle on each axis of any GameObject that
// has the "DummyCircleCapScript.js" script attached.
//在带有DummyCircleCapScript.js脚本的任意游戏物体每个轴上绘制一个圆形
@CustomEditor (DummyCircleCapScript)
class CircleCap extends Editor {

	var circleSize : float = 1;

	function OnSceneGUI () {
		Handles.color = Color.red;
		Handles.CircleCap(0,
			target.transform.position + Vector3(5,0,0),
			target.transform.rotation,
			circleSize);
		Handles.color = Color.green;
		Handles.CircleCap(0,
			target.transform.position + Vector3(0,5,0),
			target.transform.rotation,
			circleSize);
		Handles.color = Color.blue;
		Handles.CircleCap(0,
			target.transform.position + Vector3(0,0,5),
			target.transform.rotation,
			circleSize);
	}
}

And the script attached to this Handle:

该脚本附加到这个控制柄物体：

//DummyCircleCapScript.js

Debug.Log("I have CircleCap Handles attached to this transform!");

最后修改：2011年7月8日 Friday 16:29
