IfcElementarySurface

Natural language names
deelementare Fläche
enElementary Surface
frSurface élémentaire
Semantic definitions at the entity
Entity definition

An IfcElementarySurface in the common supertype of analytical surfaces.

NOTE  Definition according to ISO/CD 10303-42:1992
An elementary surface (IfcElementarySurface) is a simple analytic surface with defined parametric representation.
NOTE  Entity adapted from elementary_surface defined in ISO 10303-42.
HISTORY  New entity in IFC1.5
Attribute definitions
#AttributeTypeCardinalityDescription C
1PositionIfcAxis2Placement3D[1:1] The position and orientation of the surface. This attribute is used in the definition of the parameterization of the surface. X
Inherited definitions from supertypes

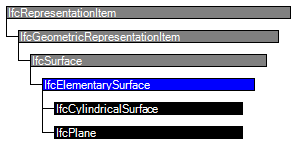

Entity inheritance IfcCylindricalSurface IfcPlane IfcSurface IfcGeometricRepresentationItem IfcRepresentationItem
Attribute inheritance
#AttributeTypeCardinalityDescriptionC
IfcRepresentationItem
LayerAssignmentIfcPresentationLayerAssignment
@AssignedItems
S[0:1]Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items. X
StyledByItemIfcStyledItem
@Item
S[0:1]Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve. X
IfcGeometricRepresentationItem
IfcSurface
Dim
:=3
IfcDimensionCount[1:1]The space dimensionality of IfcSurface. It is always a three-dimensional geometric representation item. X
IfcElementarySurface
1PositionIfcAxis2Placement3D[1:1] The position and orientation of the surface. This attribute is used in the definition of the parameterization of the surface. X
Formal representations
XSD Specification
 <xs:element name="IfcElementarySurface" type="ifc:IfcElementarySurface" abstract="true" substitutionGroup="ifc:IfcSurface" nillable="true"/>
 <xs:complexType name="IfcElementarySurface" abstract="true">
  <xs:complexContent>
   <xs:extension base="ifc:IfcSurface">
    <xs:sequence>
     <xs:element name="Position" type="ifc:IfcAxis2Placement3D" nillable="true"/>
    </xs:sequence>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcElementarySurface
 ABSTRACT SUPERTYPE OF(ONEOF(IfcCylindricalSurface, IfcPlane))
 SUBTYPE OF (IfcSurface);
  Position : IfcAxis2Placement3D;
END_ENTITY;
