IfcPlane

Semantic definitions at the entity

Entity definition

The planar surface is an unbounded surface in the direction of x and y. Bounded planar surfaces are defined by using a subtype of IfcBoundedSurface with BasisSurface being a plane.

NOTE Definition according to ISO/CD 10303-42:1992
A plane is an unbounded surface with a constant normal. A plane is defined by a point on the plane and the normal direction to the plane. The data is to be interpreted as follows:
   C = Position.Location
   x = Position.P[1]
   y = Position.P[2]
   z = Position.P[3] => normal to plane
and the surface is parameterized as:

where the parametric range is -∞ < u,v < ∞. In the above parameterization the length unit for the unit vectors x and y is derived from the context of the plane.

NOTE A rectangular bounded planar surface can be defined by an IfcRectangularTrimmedSurface with BasisSurface being the plane and U1 = left bound in x, U2 = right bound in x, V1 = lower bound in y, V2 = upper bound in y if viewed into the direction of the negative normal. (assuming the Usense and Vsense agree to the sense of the basis surface).

The inherited attributes are interpreted as

SELF\IfcElementarySurface.Position defines the location and orientation of the planar surface.
SELF\IfcElementarySurface.Position.Location defines a point on the planar surface.
SELF\IfcElementarySurface.Position.P[3] defines the normal of the planar surface.

NOTE Entity adapted from plane in ISO 10303-42.

HISTORY New entity in IFC1.5

Inherited definitions from supertypes

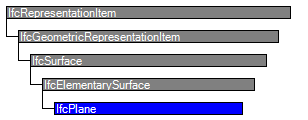

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	C
IfcRepresentationItem
	LayerAssignment	IfcPresentationLayerAssignment @AssignedItems	S[0:1]	Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items.	X
	StyledByItem	IfcStyledItem @Item	S[0:1]	Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve.	X
IfcGeometricRepresentationItem
IfcSurface
	Dim :=3	IfcDimensionCount	[1:1]	The space dimensionality of IfcSurface. It is always a three-dimensional geometric representation item.	X
IfcElementarySurface
1	Position	IfcAxis2Placement3D	[1:1]	The position and orientation of the surface. This attribute is used in the definition of the parameterization of the surface.	X
IfcPlane

Formal representations

XSD Specification

 <xs:element name="IfcPlane" type="ifc:IfcPlane" substitutionGroup="ifc:IfcElementarySurface" nillable="true"/>

 <xs:complexType name="IfcPlane">

  <xs:complexContent>

   <xs:extension base="ifc:IfcElementarySurface"/>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcPlane

 SUBTYPE OF (IfcElementarySurface);

END_ENTITY;
