IfcTypeProduct

Item	Change	Description
IFC2x3 to IFC4
IfcTypeProduct
OwnerHistory	MODIFIED	Instantiation changed to OPTIONAL.
ApplicableOccurrence	MODIFIED	Type changed from IfcLabel to IfcIdentifier.

Semantic definitions at the entity

Entity definition

IfcTypeProduct defines a type definition of a product without being already inserted into a project structure (without having a placement), and not being included in the geometric representation context of the project. It is used to define a product specification, that is, the specific product information that is common to all occurrences of that product type.

An IfcTypeProduct may have a list of property set attached and an optional set of product representations. Values of these properties and the representation maps are common to all occurrences of that product type. The type-occurrence relationship is realized using the objectified relationship IfcRelDefinesByType.

NOTE The product representations are defined as representation maps, which may be assigned by a product instance through the representation item(s) being an IfcShapeRepresentation and having Items of type IfcMappedItem.

The representations at the occurrence level (represented by subtypes of IfcProduct) can override the specific representations at the type level:

for geometric representations, a Cartesian transformation operator can be applied at the occurrence level.
for property sets, a property within an occurrence property set, assigned at the product occurrence, overrides the same property assigned to the product type.

An IfcTypeProduct may be exchanged without being already assigned to subtypes of IfcProduct.

HISTORY New entity in IFC2x.

IFC4 CHANGE The entity IfcTypeProduct shall not be instantiated from IFC4 onwards. It will be changed into an ABSTRACT supertype in future releases of IFC.

Attribute definitions

#	Attribute	Type	Cardinality	Description	C
7	RepresentationMaps	IfcRepresentationMap	~L[1:?]	List of unique representation maps. Each representation map describes a block definition of the shape of the product style. By providing more than one representation map, a multi-view block definition can be given.	X
8	Tag	IfcLabel	[0:1]	The tag (or label) identifier at the particular type of a product, e.g. the article number (like the EAN). It is the identifier at the specific level.	X
	ReferencedBy	IfcRelAssignsToProduct @RelatingProduct	S[0:?]	Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product type.	X

Formal Propositions

Rule	Description
ApplicableOccurrence	The product type (or style), if assigned to an object, shall only be assigned to object being a sub type of IfcProduct.

Inherited definitions from supertypes

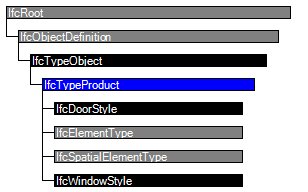

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	C
IfcRoot
1	GlobalId	IfcGloballyUniqueId	[1:1]	Assignment of a globally unique identifier within the entire software world.	X
2	OwnerHistory	IfcOwnerHistory	[0:1]	Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object, NOTE only the last modification in stored - either as addition, deletion or modification.	X
3	Name	IfcLabel	[0:1]	Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule.	X
4	Description	IfcText	[0:1]	Optional description, provided for exchanging informative comments.	X
IfcObjectDefinition
	HasAssignments	IfcRelAssigns @RelatedObjects	S[0:?]	Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.	X
	Nests	IfcRelNests @RelatedObjects	S[0:1]	References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).	X
	IsNestedBy	IfcRelNests @RelatingObject	S[0:?]	References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).	X
	HasContext	IfcRelDeclares @RelatedDefinitions	S[0:1]	References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.	X
	IsDecomposedBy	IfcRelAggregates @RelatingObject	S[0:?]	References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).	X
	Decomposes	IfcRelAggregates @RelatedObjects	S[0:1]	References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).	X
	HasAssociations	IfcRelAssociates @RelatedObjects	S[0:?]	Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.	X
IfcTypeObject
5	ApplicableOccurrence	IfcIdentifier	[0:1]	The attribute optionally defines the data type of the occurrence object, to which the assigned type object can relate. If not present, no instruction is given to which occurrence object the type object is applicable. The following conventions are used: The IFC entity name of the applicable occurrence using the IFC naming convention, CamelCase with IFC prefix It can be optionally followed by the predefined type after the separator "/" (forward slash), using uppercase If one type object is applicable to many occurrence objects, then those occurrence object names should be separate by comma "," forming a comma separated string. EXAMPLE Refering to a furniture as applicable occurrence entity would be expressed as 'IfcFurnishingElement', refering to a brace as applicable entity would be expressed as 'IfcMember/BRACE', refering to a wall and wall standard case would be expressed as 'IfcWall, IfcWallStandardCase'.	X
6	HasPropertySets	IfcPropertySetDefinition	S[1:?]	Set ~~list~~ of unique property sets, that are associated with the object type and are common to all object occurrences referring to this object type.	X
	Types	IfcRelDefinesByType @RelatingType	S[0:1]	Reference to the relationship IfcRelDefinedByType and thus to those occurrence objects, which are defined by this type.	X
IfcTypeProduct
7	RepresentationMaps	IfcRepresentationMap	~L[1:?]	List of unique representation maps. Each representation map describes a block definition of the shape of the product style. By providing more than one representation map, a multi-view block definition can be given.	X
8	Tag	IfcLabel	[0:1]	The tag (or label) identifier at the particular type of a product, e.g. the article number (like the EAN). It is the identifier at the specific level.	X
	ReferencedBy	IfcRelAssignsToProduct @RelatingProduct	S[0:?]	Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product type.	X

Definitions applying to Common Use Definitions

Instance diagram

Concept usage

Product Type Shape

The Product Type Shape concept applies to this entity.

The RepresentationMaps define the type product shape and multiple geometric representations can be assigned. If a product occurrence is assigned to the type by using the IfcRelDefinesByType relationship, then these occurrences have to reference the representation maps. The reference is created by one or multiple IfcShapeRepresentation's having an IfcMappedItem as Items, that places the IfcRepresentationMap of the type product into the spatial contexts, i.e. by using an Cartesian transformation operator to transform the IfcRepresentationMap into the object coordinate system of the product occurrence.

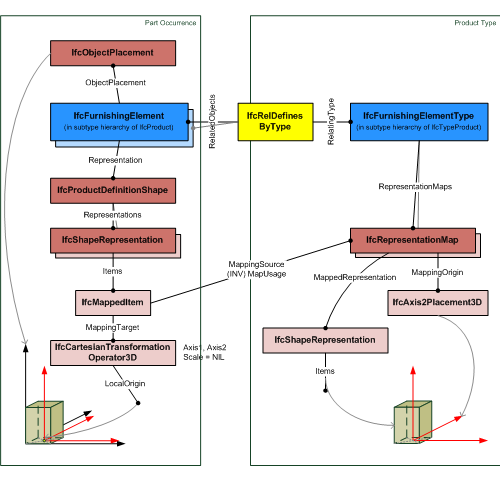

Figure 127 illustrates an example of referencing a representation map by the shape representation of a product occurrence. Here the Cartesian transformation operator only uses translation, but no rotation, mirroring, or scaling.

Figure 127 — Product type geometry with single placement

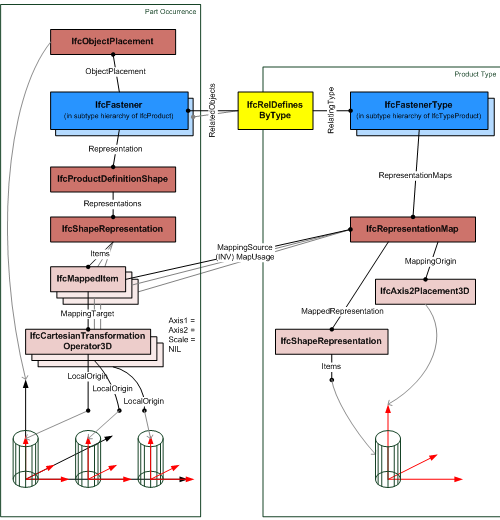

Figure 128 illustrates an example of referencing a representation multiple times map by the shape representation of a product occurrence. Here the Cartesian transformation operator only uses translation, but no rotation, mirroring, or scaling. The different translation values determine the pattern of the multiple placement.

Figure 128 — Product type geometry with multiple placement

Concept inheritance

#	Concept	Model View
IfcRoot
	Software Identity	Common Use Definitions
	Revision Control	Common Use Definitions
IfcTypeProduct
	Product Type Shape	Common Use Definitions

Formal representations

XSD Specification

 <xs:element name="IfcTypeProduct" type="ifc:IfcTypeProduct" substitutionGroup="ifc:IfcTypeObject" nillable="true"/>

 <xs:complexType name="IfcTypeProduct">

  <xs:complexContent>

   <xs:extension base="ifc:IfcTypeObject">

    <xs:sequence>

     <xs:element name="RepresentationMaps" nillable="true" minOccurs="0">

      <xs:complexType>

       <xs:sequence>

        <xs:element ref="ifc:IfcRepresentationMap" maxOccurs="unbounded"/>

       </xs:sequence>

       <xs:attribute ref="ifc:itemType" fixed="ifc:IfcRepresentationMap"/>

       <xs:attribute ref="ifc:cType" fixed="list-unique"/>

       <xs:attribute ref="ifc:arraySize" use="optional"/>

      </xs:complexType>

     </xs:element>

    </xs:sequence>

    <xs:attribute name="Tag" type="ifc:IfcLabel" use="optional"/>

   </xs:extension>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcTypeProduct

 SUPERTYPE OF(ONEOF(IfcDoorStyle, IfcElementType, IfcSpatialElementType, IfcWindowStyle))

 SUBTYPE OF (IfcTypeObject);

  RepresentationMaps : OPTIONAL LIST [1:?] OF UNIQUE IfcRepresentationMap;

  Tag : OPTIONAL IfcLabel;

 INVERSE

  ReferencedBy : SET OF IfcRelAssignsToProduct FOR RelatingProduct;

 WHERE

  ApplicableOccurrence : NOT(EXISTS(SELF\IfcTypeObject.Types[1])) OR
(SIZEOF(QUERY(temp <* SELF\IfcTypeObject.Types[1].RelatedObjects |
  NOT('IFCKERNEL.IFCPRODUCT' IN TYPEOF(temp)))
) = 0);
END_ENTITY;

 EXPRESS-G diagram
