IfcTypeResource

Item	SPF	XML	Change	Description
IFC2x3 to IFC4
IfcTypeResource			ADDED

Semantic definitions at the entity

Entity definition

IfcTypeResource defines a specific (or type) definition of a resource. It is used to define a resource specification (the specific resource, that is common to all occurrences that are defined for that resource) and could act as a resource template.

An IfcTypeResource may have a list of property sets attached. Values of these properties are common to all occurrences of that resource type. The type occurrence relationship is realized using the objectified relationship IfcRelDefinesByType.

Subtypes of IfcTypeResource may be exchanged without being already assigned to subtypes of IfcResource.

HISTORY New entity in IFC4.

Attribute definitions

#	Attribute	Type	Cardinality	Description	C
7	Identification	IfcIdentifier	[0:1]	An identifying designation given to a resource type.	X
8	LongDescription	IfcText	[0:1]	An long description, or text, describing the resource in detail. NOTE The inherited SELF\IfcRoot.Description attribute is used as the short description.	X
9	ResourceType	IfcLabel	[0:1]	The type denotes a particular type that indicates the resource further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute 'PredefinedType' is set to USERDEFINED.	X
	ResourceOf	IfcRelAssignsToResource @RelatingResource	S[0:?]	Set of relationships to other objects, e.g. products, processes, controls, resources or actors to which this resource type is a resource.	X

Inherited definitions from supertypes

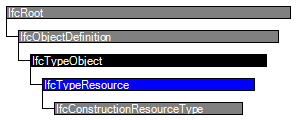

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	C
IfcRoot
1	GlobalId	IfcGloballyUniqueId	[1:1]	Assignment of a globally unique identifier within the entire software world.	X
2	OwnerHistory	IfcOwnerHistory	[0:1]	Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object, NOTE only the last modification in stored - either as addition, deletion or modification.	X
3	Name	IfcLabel	[0:1]	Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule.	X
4	Description	IfcText	[0:1]	Optional description, provided for exchanging informative comments.	X
IfcObjectDefinition
	HasAssignments	IfcRelAssigns @RelatedObjects	S[0:?]	Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.	X
	Nests	IfcRelNests @RelatedObjects	S[0:1]	References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).	X
	IsNestedBy	IfcRelNests @RelatingObject	S[0:?]	References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).	X
	HasContext	IfcRelDeclares @RelatedDefinitions	S[0:1]	References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.	X
	IsDecomposedBy	IfcRelAggregates @RelatingObject	S[0:?]	References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).	X
	Decomposes	IfcRelAggregates @RelatedObjects	S[0:1]	References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).	X
	HasAssociations	IfcRelAssociates @RelatedObjects	S[0:?]	Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.	X
IfcTypeObject
5	ApplicableOccurrence	IfcIdentifier	[0:1]	The attribute optionally defines the data type of the occurrence object, to which the assigned type object can relate. If not present, no instruction is given to which occurrence object the type object is applicable. The following conventions are used: The IFC entity name of the applicable occurrence using the IFC naming convention, CamelCase with IFC prefix It can be optionally followed by the predefined type after the separator "/" (forward slash), using uppercase If one type object is applicable to many occurrence objects, then those occurrence object names should be separate by comma "," forming a comma separated string. EXAMPLE Refering to a furniture as applicable occurrence entity would be expressed as 'IfcFurnishingElement', refering to a brace as applicable entity would be expressed as 'IfcMember/BRACE', refering to a wall and wall standard case would be expressed as 'IfcWall, IfcWallStandardCase'.	X
6	HasPropertySets	IfcPropertySetDefinition	S[1:?]	Set ~~list~~ of unique property sets, that are associated with the object type and are common to all object occurrences referring to this object type.	X
	Types	IfcRelDefinesByType @RelatingType	S[0:1]	Reference to the relationship IfcRelDefinedByType and thus to those occurrence objects, which are defined by this type.	X
IfcTypeResource
7	Identification	IfcIdentifier	[0:1]	An identifying designation given to a resource type.	X
8	LongDescription	IfcText	[0:1]	An long description, or text, describing the resource in detail. NOTE The inherited SELF\IfcRoot.Description attribute is used as the short description.	X
9	ResourceType	IfcLabel	[0:1]	The type denotes a particular type that indicates the resource further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute 'PredefinedType' is set to USERDEFINED.	X
	ResourceOf	IfcRelAssignsToResource @RelatingResource	S[0:?]	Set of relationships to other objects, e.g. products, processes, controls, resources or actors to which this resource type is a resource.	X

Definitions applying to Common Use Definitions

Concept inheritance

#	Concept	Model View
IfcRoot
	Software Identity	Common Use Definitions
	Revision Control	Common Use Definitions

Formal representations

XSD Specification

 <xs:element name="IfcTypeResource" type="ifc:IfcTypeResource" abstract="true" substitutionGroup="ifc:IfcTypeObject" nillable="true"/>

 <xs:complexType name="IfcTypeResource" abstract="true">

  <xs:complexContent>

   <xs:extension base="ifc:IfcTypeObject">

    <xs:attribute name="Identification" type="ifc:IfcIdentifier" use="optional"/>

    <xs:attribute name="LongDescription" type="ifc:IfcText" use="optional"/>

    <xs:attribute name="ResourceType" type="ifc:IfcLabel" use="optional"/>

   </xs:extension>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcTypeResource

 ABSTRACT SUPERTYPE OF(IfcConstructionResourceType)

 SUBTYPE OF (IfcTypeObject);

  Identification : OPTIONAL IfcIdentifier;

  LongDescription : OPTIONAL IfcText;

  ResourceType : OPTIONAL IfcLabel;

 INVERSE

  ResourceOf : SET OF IfcRelAssignsToResource FOR RelatingResource;

END_ENTITY;

 EXPRESS-G diagram
