IfcConstructionResourceType

Item	SPF	XML	Change	Description
IFC2x3 to IFC4
IfcConstructionResourceType			ADDED

Semantic definitions at the entity

Entity definition

IfcConstructionResourceType is an abstract generalization of the different resource types used in construction projects, mainly labor, material, equipment and product resource types, plus subcontracted resource types and aggregations such as a crew resource type.

A resource type represents a model of "use of something" and does not necessarily correspond to a specific type of object such as a person or vehicle, but represents possible usages of such objects such as general labor or an equipment fleet. A resource type can either represent usage in general (consumption attributes defined but no task type assignment) or a task-specific resource type (production attributes defined and having an IfcTask assignment).

A construction resource type captures common productivities and cost rates for applying resources to particular task types.

HISTORY New entity in IFC4.

Composition use definition

Resource types may be decomposed into nested resource types indicating productivities when applying the resource to specific task types using the IfcRelNests relationship where IfcRelNests.RelatingObject refers to the general resource type and IfcRelNests.RelatedObjects refers to one or more task-specific productivities. For example, an IfcLaborResourceType may be defined for "Carpenter" which may have a nested IfcLaborResourceType for "Carpenter - Wall Framing" and another nested IfcLaborResourceType for "Carpenter - Drywall", each of which may have productivities based according to specific task types (IfcTaskType).

Assignment use definition

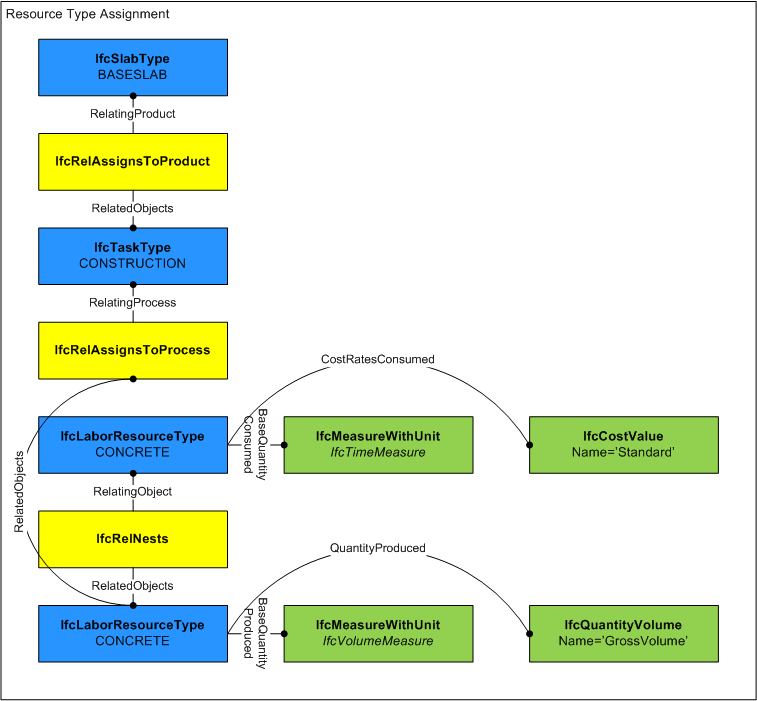

Resource types may be assigned to process types (IfcTypeProcess subtypes) using the IfcRelAssignsToProcess relationship as shown in Figure 294. Such relationship indicates that the resource type applies to the process type for the use indicated (e.g. IfcTaskType.PredefinedType). Such relationship enables a scenario of placing an IfcProduct of a particular IfcTypeProduct, querying for a set of IfcTypeProcess process types for constructing such product (e.g. IfcTaskTypeEnum.CONSTRUCTION), querying each IfcTypeProcess for a set of IfcTypeResource resource types for carrying out the process, and finally choosing an IfcTypeProcess and IfcTypeResource combination resulting in the shortest time for instantiated IfcTask occurrence(s) and/or lowest-cost for instantiated IfcConstructionResource occurrence(s).

Figure 294 — Construction resource type assignment

Attribute definitions

#	Attribute	Type	Cardinality	Description	C
10	BaseCosts	IfcAppliedValue	L[1:?]	Indicates the unit costs and environmental impacts for which accrued amounts should be calculated. Such unit costs may be split into Name designations (e.g. 'Standard', 'Overtime'), and may contain a hierarchy of cost values that apply at different dates (using IfcCostValue.ApplicableDate and IfcCostValue.FixedUntilDate).	X
11	BaseQuantity	IfcPhysicalQuantity	[0:1]	Identifies the quantity for which the BaseQuantityProduced applies. The Name of the IfcPhysicalQuantity identifies the quantity definition being measured, e.g. "GrossVolume". For production-based resources (e.g. carpentry labor), this value refers to quantities on IfcProduct(s) to which the assigned IfcTask is assigned. For duration-based resources (e.g. safety inspector, fuel for equipment), this value refers to quantities that may be assigned to occurrences of the assigned IfcTaskType.	X

Inherited definitions from supertypes

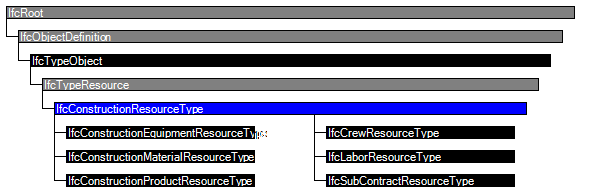

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	C
IfcRoot
1	GlobalId	IfcGloballyUniqueId	[1:1]	Assignment of a globally unique identifier within the entire software world.	X
2	OwnerHistory	IfcOwnerHistory	[0:1]	Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object, NOTE only the last modification in stored - either as addition, deletion or modification.	X
3	Name	IfcLabel	[0:1]	Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule.	X
4	Description	IfcText	[0:1]	Optional description, provided for exchanging informative comments.	X
IfcObjectDefinition
	HasAssignments	IfcRelAssigns @RelatedObjects	S[0:?]	Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.	X
	Nests	IfcRelNests @RelatedObjects	S[0:1]	References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).	X
	IsNestedBy	IfcRelNests @RelatingObject	S[0:?]	References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).	X
	HasContext	IfcRelDeclares @RelatedDefinitions	S[0:1]	References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.	X
	IsDecomposedBy	IfcRelAggregates @RelatingObject	S[0:?]	References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).	X
	Decomposes	IfcRelAggregates @RelatedObjects	S[0:1]	References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).	X
	HasAssociations	IfcRelAssociates @RelatedObjects	S[0:?]	Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.	X
IfcTypeObject
5	ApplicableOccurrence	IfcIdentifier	[0:1]	The attribute optionally defines the data type of the occurrence object, to which the assigned type object can relate. If not present, no instruction is given to which occurrence object the type object is applicable. The following conventions are used: The IFC entity name of the applicable occurrence using the IFC naming convention, CamelCase with IFC prefix It can be optionally followed by the predefined type after the separator "/" (forward slash), using uppercase If one type object is applicable to many occurrence objects, then those occurrence object names should be separate by comma "," forming a comma separated string. EXAMPLE Refering to a furniture as applicable occurrence entity would be expressed as 'IfcFurnishingElement', refering to a brace as applicable entity would be expressed as 'IfcMember/BRACE', refering to a wall and wall standard case would be expressed as 'IfcWall, IfcWallStandardCase'.	X
6	HasPropertySets	IfcPropertySetDefinition	S[1:?]	Set ~~list~~ of unique property sets, that are associated with the object type and are common to all object occurrences referring to this object type.	X
	Types	IfcRelDefinesByType @RelatingType	S[0:1]	Reference to the relationship IfcRelDefinedByType and thus to those occurrence objects, which are defined by this type.	X
IfcTypeResource
7	Identification	IfcIdentifier	[0:1]	An identifying designation given to a resource type.	X
8	LongDescription	IfcText	[0:1]	An long description, or text, describing the resource in detail. NOTE The inherited SELF\IfcRoot.Description attribute is used as the short description.	X
9	ResourceType	IfcLabel	[0:1]	The type denotes a particular type that indicates the resource further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute 'PredefinedType' is set to USERDEFINED.	X
	ResourceOf	IfcRelAssignsToResource @RelatingResource	S[0:?]	Set of relationships to other objects, e.g. products, processes, controls, resources or actors to which this resource type is a resource.	X
IfcConstructionResourceType
10	BaseCosts	IfcAppliedValue	L[1:?]	Indicates the unit costs and environmental impacts for which accrued amounts should be calculated. Such unit costs may be split into Name designations (e.g. 'Standard', 'Overtime'), and may contain a hierarchy of cost values that apply at different dates (using IfcCostValue.ApplicableDate and IfcCostValue.FixedUntilDate).	X
11	BaseQuantity	IfcPhysicalQuantity	[0:1]	Identifies the quantity for which the BaseQuantityProduced applies. The Name of the IfcPhysicalQuantity identifies the quantity definition being measured, e.g. "GrossVolume". For production-based resources (e.g. carpentry labor), this value refers to quantities on IfcProduct(s) to which the assigned IfcTask is assigned. For duration-based resources (e.g. safety inspector, fuel for equipment), this value refers to quantities that may be assigned to occurrences of the assigned IfcTaskType.	X

Definitions applying to Common Use Definitions

Concept inheritance

#	Concept	Model View
IfcRoot
	Software Identity	Common Use Definitions
	Revision Control	Common Use Definitions

Formal representations

XSD Specification

 <xs:element name="IfcConstructionResourceType" type="ifc:IfcConstructionResourceType" abstract="true" substitutionGroup="ifc:IfcTypeResource" nillable="true"/>

 <xs:complexType name="IfcConstructionResourceType" abstract="true">

  <xs:complexContent>

   <xs:extension base="ifc:IfcTypeResource">

    <xs:sequence>

     <xs:element name="BaseCosts" nillable="true" minOccurs="0">

      <xs:complexType>

       <xs:sequence>

        <xs:element ref="ifc:IfcAppliedValue" maxOccurs="unbounded"/>

       </xs:sequence>

       <xs:attribute ref="ifc:itemType" fixed="ifc:IfcAppliedValue"/>

       <xs:attribute ref="ifc:cType" fixed="list"/>

       <xs:attribute ref="ifc:arraySize" use="optional"/>

      </xs:complexType>

     </xs:element>

     <xs:element name="BaseQuantity" type="ifc:IfcPhysicalQuantity" nillable="true" minOccurs="0"/>

    </xs:sequence>

   </xs:extension>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcConstructionResourceType

 ABSTRACT SUPERTYPE OF(ONEOF(IfcConstructionEquipmentResourceType, IfcConstructionMaterialResourceType, IfcConstructionProductResourceType, IfcCrewResourceType, IfcLaborResourceType, IfcSubContractResourceType))

 SUBTYPE OF (IfcTypeResource);

  BaseCosts : OPTIONAL LIST [1:?] OF IfcAppliedValue;

  BaseQuantity : OPTIONAL IfcPhysicalQuantity;

END_ENTITY;

 EXPRESS-G diagram
