Natural language names
 | Komponente der Gebäudeautomation (allgemein) |
 | Distribution Control Element |
 | Élément de circuit de distribution |
| Komponente der Gebäudeautomation (allgemein) |
| Distribution Control Element |
| Élément de circuit de distribution |
| Item | SPF | XML | Change | Description | IFC2x3 to IFC4 |
|---|---|---|---|---|
| IfcDistributionControlElement | ||||
| OwnerHistory | MODIFIED | Instantiation changed to OPTIONAL. | ||
| ControlElementId | X | DELETED | IFC4 Addendum 1 | |
| IfcDistributionControlElement | ||||
| HasCoverings | ADDED |
The distribution element IfcDistributionControlElement defines occurrence elements of a building automation control system that are used to impart control over elements of a distribution system.
IfcDistributionControlElement defines elements of a building automation control system. These are typically used to control distribution system elements to maintain variables such as temperature, humidity, pressure, flow, power, or lighting levels, through the modulation, staging or sequencing of mechanical or electrical devices. The three general functional categories of control elements are as follows:
Since IfcDistributionControlElement and its subtypes typically relate to many different distribution flow elements (IfcDistributionFlowElement), the objectified relationship IfcRelFlowControlElements has been provided to relate control and flow elements as required.
The key distinction between IfcDistributionFlowElement and IfcDistributionControlElement is whether it is internal or external to the flow system, respectively. For example, the distinction between IfcFlowMeter (subtype of IfcDistributionFlowElement measuring a flow quantity) and IfcFlowInstrument (subtype of IfcDistributionControlElement measuring a flow quality), is based on this principal. A physical device that connects within the flow system in which it measures (having inlet/outlet pipes for the measured substance) follows the IfcDistributionFlowElement hierarchy (and therefore IfcFlowMeter which measures the flow internally). Otherwise, if it monitors/controls but does not connect inline within the flow system (it is external or is a component of another device), then it follows the IfcDistributionControlElement hierarchy (and therefore IfcFlowInstrument which may display various attributes through connected sensors).
HISTORY New entity in IFC2.0.
IFC4 CHANGE Attribute ControlElementId attribute deleted; replaced by classification usage. Ports are now primarily defined using IfcRelNests to enable definition of ports at type definitions (both forward and backward compatible), provide a logical order, and reduce the number of relationship objects needed. The relationship IfcRelConnectsPortToElement is still supported, however is now specific to dynamically connected ports.
| # | Attribute | Type | Cardinality | Description | C |
|---|---|---|---|---|---|
| AssignedToFlowElement | IfcRelFlowControlElements @RelatedControlElements | S[0:1] | Reference through the relationship object to related distribution flow elements. | X |
| # | Attribute | Type | Cardinality | Description | C |
|---|---|---|---|---|---|
| IfcRoot | |||||
| 1 | GlobalId | IfcGloballyUniqueId | [1:1] | Assignment of a globally unique identifier within the entire software world. | X |
| 2 | OwnerHistory | IfcOwnerHistory | [0:1] |
Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE only the last modification in stored - either as addition, deletion or modification. | X |
| 3 | Name | IfcLabel | [0:1] | Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. | X |
| 4 | Description | IfcText | [0:1] | Optional description, provided for exchanging informative comments. | X |
| IfcObjectDefinition | |||||
| HasAssignments | IfcRelAssigns @RelatedObjects | S[0:?] | Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. | X | |
| Nests | IfcRelNests @RelatedObjects | S[0:1] | References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only). | X | |
| IsNestedBy | IfcRelNests @RelatingObject | S[0:?] | References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types). | X | |
| HasContext | IfcRelDeclares @RelatedDefinitions | S[0:1] | References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object. | X | |
| IsDecomposedBy | IfcRelAggregates @RelatingObject | S[0:?] | References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts). | X | |
| Decomposes | IfcRelAggregates @RelatedObjects | S[0:1] | References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only). | X | |
| HasAssociations | IfcRelAssociates @RelatedObjects | S[0:?] | Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. | X | |
| IfcObject | |||||
| 5 | ObjectType | IfcLabel | [0:1] |
The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.
| X |
| IsDeclaredBy | IfcRelDefinesByObject @RelatedObjects | S[0:1] | Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes. | X | |
| Declares | IfcRelDefinesByObject @RelatingObject | S[0:?] | Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes. | X | |
| IsTypedBy | IfcRelDefinesByType @RelatedObjects | S[0:1] | Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type. | X | |
| IsDefinedBy | IfcRelDefinesByProperties @RelatedObjects | S[0:?] | Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object. | X | |
| IfcProduct | |||||
| 6 | ObjectPlacement | IfcObjectPlacement | [0:1] | Placement of the product in space, the placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constraint (e.g. relative to grid axes). It is determined by the various subtypes of IfcObjectPlacement, which includes the axis placement information to determine the transformation for the object coordinate system. | X |
| 7 | Representation | IfcProductRepresentation | [0:1] | Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement. | X |
| ReferencedBy | IfcRelAssignsToProduct @RelatingProduct | S[0:?] | Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product. | X | |
| IfcElement | |||||
| 8 | Tag | IfcIdentifier | [0:1] | The tag (or label) identifier at the particular instance of a product, e.g. the serial number, or the position number. It is the identifier at the occurrence level. | X |
| FillsVoids | IfcRelFillsElement @RelatedBuildingElement | S[0:1] | Reference to the IfcRelFillsElement Relationship that puts the element as a filling into the opening created within another element. | X | |
| ConnectedTo | IfcRelConnectsElements @RelatingElement | S[0:?] | Reference to the element connection relationship. The relationship then refers to the other element to which this element is connected to. | X | |
| IsInterferedByElements | IfcRelInterferesElements @RelatedElement | S[0:?] | Reference to the interference relationship to indicate the element that is interfered. The relationship, if provided, indicates that this element has an interference with one or many other elements.
NOTE There is no indication of precedence between IsInterferedByElements and InterferesElements. | X | |
| InterferesElements | IfcRelInterferesElements @RelatingElement | S[0:?] | Reference to the interference relationship to indicate the element that interferes. The relationship, if provided, indicates that this element has an interference with one or many other elements.
NOTE There is no indication of precedence between IsInterferedByElements and InterferesElements. | X | |
| HasProjections | IfcRelProjectsElement @RelatingElement | S[0:?] | Projection relationship that adds a feature (using a Boolean union) to the IfcBuildingElement. | X | |
| ReferencedInStructures | IfcRelReferencedInSpatialStructure @RelatedElements | S[0:?] | Reference relationship to the spatial structure element, to which the element is additionally associated. This relationship may not be hierarchical, an element may be referenced by zero, one or many spatial structure elements. | X | |
| HasOpenings | IfcRelVoidsElement @RelatingBuildingElement | S[0:?] | Reference to the IfcRelVoidsElement relationship that creates an opening in an element. An element can incorporate zero-to-many openings. For each opening, that voids the element, a new relationship IfcRelVoidsElement is generated. | X | |
| IsConnectionRealization | IfcRelConnectsWithRealizingElements @RealizingElements | S[0:?] | Reference to the connection relationship with realizing element. The relationship, if provided, assigns this element as the realizing element to the connection, which provides the physical manifestation of the connection relationship. | X | |
| ProvidesBoundaries | IfcRelSpaceBoundary @RelatedBuildingElement | S[0:?] | Reference to space boundaries by virtue of the objectified relationship IfcRelSpaceBoundary. It defines the concept of an element bounding spaces. | X | |
| ConnectedFrom | IfcRelConnectsElements @RelatedElement | S[0:?] | Reference to the element connection relationship. The relationship then refers to the other element that is connected to this element. | X | |
| ContainedInStructure | IfcRelContainedInSpatialStructure @RelatedElements | S[0:1] | Containment relationship to the spatial structure element, to which the element is primarily associated. This containment relationship has to be hierachical, i.e. an element may only be assigned directly to zero or one spatial structure. | X | |
| HasCoverings | IfcRelCoversBldgElements @RelatingBuildingElement | S[0:?] | Reference to IfcCovering by virtue of the objectified relationship IfcRelCoversBldgElement. It defines the concept of an element having coverings associated. | X | |
| IfcDistributionElement | |||||
| HasPorts | IfcRelConnectsPortToElement @RelatedElement | S[0:?] | Reference to the element to port connection relationship. The relationship then refers to the port which is contained in this element. | X | |
| IfcDistributionControlElement | |||||
| AssignedToFlowElement | IfcRelFlowControlElements @RelatedControlElements | S[0:1] | Reference through the relationship object to related distribution flow elements. | X | |
Object Typing
The Object Typing concept applies to this entity as shown in Table 206.
| |||
Table 206 — IfcDistributionControlElement Object Typing |
Classification Association
The Classification Association concept applies to this entity as shown in Table 207.
| ||||||||||||||||||||||||||||||||
Table 207 — IfcDistributionControlElement Classification Association |
In addition to general product and project classification (UniFormat, etc.), classifications may also be applied to indicate a device address or addressing scheme according to system-based device instance classification.

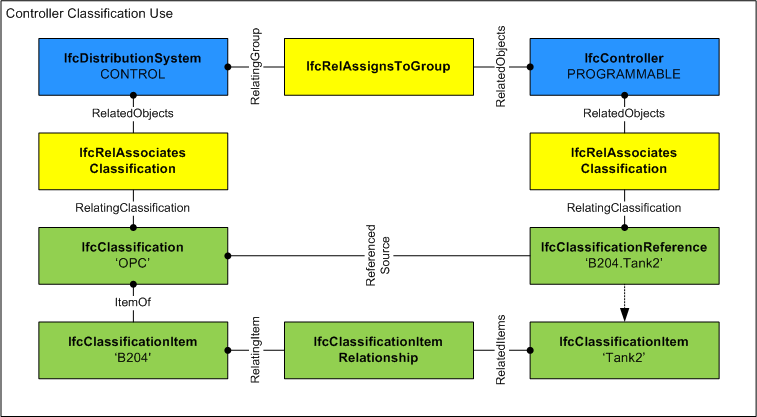

Figure 260 illustrates classification usage.
 |
Figure 260 — Distribution control classification |
Product Assignment
The Product Assignment concept applies to this entity as shown in Table 208.
| ||||||||
Table 208 — IfcDistributionControlElement Product Assignment |
The IfcDistributionControlElement may be assigned to the following entities using relationships as indicated:
| # | Concept | Model View |
|---|---|---|
| IfcRoot | ||
| Software Identity | Common Use Definitions | |
| Revision Control | Common Use Definitions | |
| IfcObject | ||
| Object Occurrence Predefined Type | Common Use Definitions | |
| IfcElement | ||
| Product Local Placement | Common Use Definitions | |
| Box Geometry | Common Use Definitions | |
| FootPrint Geometry | Common Use Definitions | |
| Body SurfaceOrSolidModel Geometry | Common Use Definitions | |
| Body SurfaceModel Geometry | Common Use Definitions | |
| Body Tessellation Geometry | Common Use Definitions | |
| Body Brep Geometry | Common Use Definitions | |
| Body AdvancedBrep Geometry | Common Use Definitions | |
| Body CSG Geometry | Common Use Definitions | |
| Mapped Geometry | Common Use Definitions | |
| Mesh Geometry | Common Use Definitions | |
| IfcDistributionElement | ||
| Property Sets for Objects | Common Use Definitions | |
| Quantity Sets | Common Use Definitions | |
| Spatial Containment | Common Use Definitions | |
| IfcDistributionControlElement | ||
| Object Typing | Common Use Definitions | |
| Classification Association | Common Use Definitions | |
| Product Assignment | Common Use Definitions | |
Instance diagram <xs:element name="IfcDistributionControlElement" type="ifc:IfcDistributionControlElement" substitutionGroup="ifc:IfcDistributionElement" nillable="true"/>
<xs:complexType name="IfcDistributionControlElement">
<xs:complexContent>
<xs:extension base="ifc:IfcDistributionElement"/>
</xs:complexContent>
</xs:complexType>

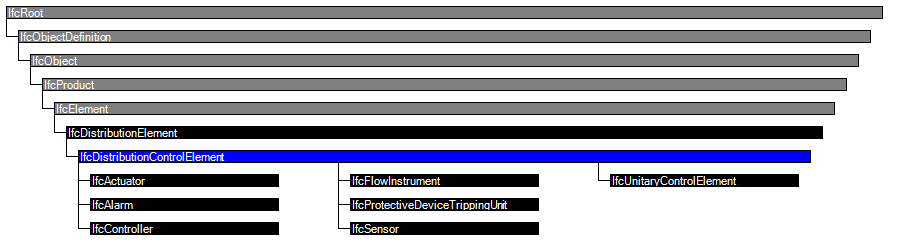

ENTITY IfcDistributionControlElement
SUPERTYPE OF(ONEOF(IfcActuator, IfcAlarm, IfcController, IfcFlowInstrument, IfcProtectiveDeviceTrippingUnit, IfcSensor, IfcUnitaryControlElement))
SUBTYPE OF (IfcDistributionElement);
INVERSE
AssignedToFlowElement : SET [0:1] OF IfcRelFlowControlElements FOR RelatedControlElements;
END_ENTITY;
