IfcDistributionFlowElement

#	Attribute	Type	Cardinality	Description	C
	HasControlElements	IfcRelFlowControlElements @RelatingFlowElement	S[0:1]	Reference to the relationship object that relates control elements.	X

Inherited definitions from supertypes

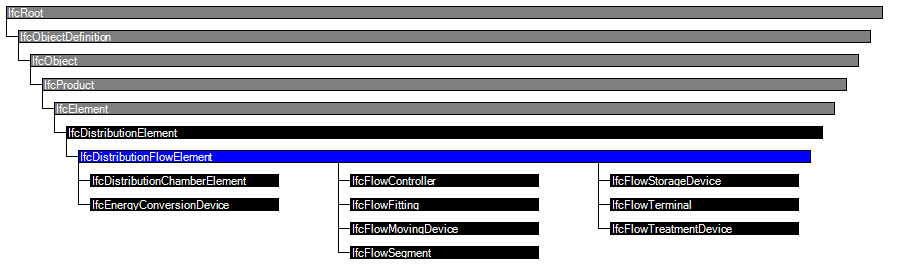

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	C
IfcRoot
1	GlobalId	IfcGloballyUniqueId	[1:1]	Assignment of a globally unique identifier within the entire software world.	X
2	OwnerHistory	IfcOwnerHistory	[0:1]	Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object, NOTE only the last modification in stored - either as addition, deletion or modification.	X
3	Name	IfcLabel	[0:1]	Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule.	X
4	Description	IfcText	[0:1]	Optional description, provided for exchanging informative comments.	X
IfcObjectDefinition
	HasAssignments	IfcRelAssigns @RelatedObjects	S[0:?]	Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.	X
	Nests	IfcRelNests @RelatedObjects	S[0:1]	References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).	X
	IsNestedBy	IfcRelNests @RelatingObject	S[0:?]	References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).	X
	HasContext	IfcRelDeclares @RelatedDefinitions	S[0:1]	References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.	X
	IsDecomposedBy	IfcRelAggregates @RelatingObject	S[0:?]	References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).	X
	Decomposes	IfcRelAggregates @RelatedObjects	S[0:1]	References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).	X
	HasAssociations	IfcRelAssociates @RelatedObjects	S[0:?]	Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.	X
IfcObject
5	ObjectType	IfcLabel	[0:1]	The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.	X
	IsDeclaredBy	IfcRelDefinesByObject @RelatedObjects	S[0:1]	Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.	X
	Declares	IfcRelDefinesByObject @RelatingObject	S[0:?]	Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.	X
	IsTypedBy	IfcRelDefinesByType @RelatedObjects	S[0:1]	Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type.	X
	IsDefinedBy	IfcRelDefinesByProperties @RelatedObjects	S[0:?]	Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object.	X
IfcProduct
6	ObjectPlacement	IfcObjectPlacement	[0:1]	Placement of the product in space, the placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constraint (e.g. relative to grid axes). It is determined by the various subtypes of IfcObjectPlacement, which includes the axis placement information to determine the transformation for the object coordinate system.	X
7	Representation	IfcProductRepresentation	[0:1]	Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement.	X
	ReferencedBy	IfcRelAssignsToProduct @RelatingProduct	S[0:?]	Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product.	X
IfcElement
8	Tag	IfcIdentifier	[0:1]	The tag (or label) identifier at the particular instance of a product, e.g. the serial number, or the position number. It is the identifier at the occurrence level.	X
	FillsVoids	IfcRelFillsElement @RelatedBuildingElement	S[0:1]	Reference to the IfcRelFillsElement Relationship that puts the element as a filling into the opening created within another element.	X
	ConnectedTo	IfcRelConnectsElements @RelatingElement	S[0:?]	Reference to the element connection relationship. The relationship then refers to the other element to which this element is connected to.	X
	IsInterferedByElements	IfcRelInterferesElements @RelatedElement	S[0:?]	Reference to the interference relationship to indicate the element that is interfered. The relationship, if provided, indicates that this element has an interference with one or many other elements. NOTE There is no indication of precedence between IsInterferedByElements and InterferesElements.	X
	InterferesElements	IfcRelInterferesElements @RelatingElement	S[0:?]	Reference to the interference relationship to indicate the element that interferes. The relationship, if provided, indicates that this element has an interference with one or many other elements. NOTE There is no indication of precedence between IsInterferedByElements and InterferesElements.	X
	HasProjections	IfcRelProjectsElement @RelatingElement	S[0:?]	Projection relationship that adds a feature (using a Boolean union) to the IfcBuildingElement.	X
	ReferencedInStructures	IfcRelReferencedInSpatialStructure @RelatedElements	S[0:?]	Reference relationship to the spatial structure element, to which the element is additionally associated. This relationship may not be hierarchical, an element may be referenced by zero, one or many spatial structure elements.	X
	HasOpenings	IfcRelVoidsElement @RelatingBuildingElement	S[0:?]	Reference to the IfcRelVoidsElement relationship that creates an opening in an element. An element can incorporate zero-to-many openings. For each opening, that voids the element, a new relationship IfcRelVoidsElement is generated.	X
	IsConnectionRealization	IfcRelConnectsWithRealizingElements @RealizingElements	S[0:?]	Reference to the connection relationship with realizing element. The relationship, if provided, assigns this element as the realizing element to the connection, which provides the physical manifestation of the connection relationship.	X
	ProvidesBoundaries	IfcRelSpaceBoundary @RelatedBuildingElement	S[0:?]	Reference to space boundaries by virtue of the objectified relationship IfcRelSpaceBoundary. It defines the concept of an element bounding spaces.	X
	ConnectedFrom	IfcRelConnectsElements @RelatedElement	S[0:?]	Reference to the element connection relationship. The relationship then refers to the other element that is connected to this element.	X
	ContainedInStructure	IfcRelContainedInSpatialStructure @RelatedElements	S[0:1]	Containment relationship to the spatial structure element, to which the element is primarily associated. This containment relationship has to be hierachical, i.e. an element may only be assigned directly to zero or one spatial structure.	X
	HasCoverings	IfcRelCoversBldgElements @RelatingBuildingElement	S[0:?]	Reference to IfcCovering by virtue of the objectified relationship IfcRelCoversBldgElement. It defines the concept of an element having coverings associated.	X
IfcDistributionElement
	HasPorts	IfcRelConnectsPortToElement @RelatedElement	S[0:?]	Reference to the element to port connection relationship. The relationship then refers to the port which is contained in this element.	X
IfcDistributionFlowElement
	HasControlElements	IfcRelFlowControlElements @RelatingFlowElement	S[0:1]	Reference to the relationship object that relates control elements.	X

Definitions applying to Common Use Definitions

Instance diagram

Concept usage

Object Typing

The Object Typing concept applies to this entity as shown in Table 210.

Type
IfcDistributionFlowElementType
IfcDistributionElementType

Table 210 — IfcDistributionFlowElement Object Typing

Property Sets for Objects

The Property Sets for Objects concept applies to this entity as shown in Table 211.

PredefinedType

Name

Properties

Pset_SoundGeneration

Pset_ElectricalDeviceCommon

Single Value

Name	Value
PowerFactor	IfcNormalisedRatioMeasure
NumberOfPoles	IfcInteger
HasProtectiveEarth	IfcBoolean
IP_Code	IfcLabel

Bounded Value

Name	Value	Value
RatedCurrent	IfcElectricCurrentMeasure	IfcElectricCurrentMeasure
RatedVoltage	IfcElectricVoltageMeasure	IfcElectricVoltageMeasure
NominalFrequencyRange	IfcFrequencyMeasure	IfcFrequencyMeasure

Enumerated Value

Name	Value	Value
ConductorFunction	IfcLabel	IfcLabel
InsulationStandardClass	IfcLabel	IfcLabel

Pset_EnvironmentalImpactIndicators

Single Value

Name	Value
Reference	IfcIdentifier
FunctionalUnitReference	IfcLabel
Unit	IfcText
ExpectedServiceLife	IfcTimeMeasure
TotalPrimaryEnergyConsumptionPerUnit	IfcEnergyMeasure
WaterConsumptionPerUnit	IfcVolumeMeasure
HazardousWastePerUnit	IfcMassMeasure
NonHazardousWastePerUnit	IfcMassMeasure
ClimateChangePerUnit	IfcMassMeasure
AtmosphericAcidificationPerUnit	IfcMassMeasure
RenewableEnergyConsumptionPerUnit	IfcEnergyMeasure
NonRenewableEnergyConsumptionPerUnit	IfcEnergyMeasure
ResourceDepletionPerUnit	IfcMassMeasure
InertWastePerUnit	IfcMassMeasure
RadioactiveWastePerUnit	IfcMassMeasure
StratosphericOzoneLayerDestructionPerUnit	IfcMassMeasure
PhotochemicalOzoneFormationPerUnit	IfcMassMeasure
EutrophicationPerUnit	IfcMassMeasure

Enumerated Value

Name	Value	Value
LifeCyclePhase	IfcLabel	IfcLabel

Pset_EnvironmentalImpactValues

Single Value

Name	Value
TotalPrimaryEnergyConsumption	IfcEnergyMeasure
WaterConsumption	IfcVolumeMeasure
HazardousWaste	IfcMassMeasure
NonHazardousWaste	IfcMassMeasure
ClimateChange	IfcMassMeasure
AtmosphericAcidification	IfcMassMeasure
RenewableEnergyConsumption	IfcEnergyMeasure
NonRenewableEnergyConsumption	IfcEnergyMeasure
ResourceDepletion	IfcMassMeasure
InertWaste	IfcMassMeasure
RadioactiveWaste	IfcMassMeasure
StratosphericOzoneLayerDestruction	IfcMassMeasure
PhotochemicalOzoneFormation	IfcMassMeasure
Eutrophication	IfcMassMeasure
LeadInTime	IfcDuration
Duration	IfcDuration
LeadOutTime

Pset_Condition

Single Value

Name	Value
AssessmentDate	IfcDate
AssessmentCondition	IfcLabel
AssessmentDescription	IfcText

Pset_ManufacturerOccurrence

Single Value

Name	Value
AcquisitionDate	IfcDate
BarCode	IfcIdentifier
SerialNumber	IfcIdentifier
BatchReference	IfcIdentifier

Enumerated Value

Name	Value	Value
AssemblyPlace	IfcLabel	IfcLabel

Pset_ManufacturerTypeInformation

Single Value

Name	Value
GlobalTradeItemNumber	IfcIdentifier
ArticleNumber	IfcIdentifier
ModelReference	IfcLabel
ModelLabel	IfcLabel
Manufacturer	IfcLabel
ProductionYear	IfcLabel

Enumerated Value

Name	Value	Value
AssemblyPlace	IfcLabel	IfcLabel

Pset_ServiceLife

Single Value

Name	Value
MeanTimeBetweenFailure	IfcDuration

Bounded Value

Name	Value	Value
ServiceLifeDuration	IfcDuration	IfcDuration

Pset_Warranty

Single Value

Name	Value
WarrantyIdentifier	IfcIdentifier
WarrantyStartDate	IfcDate
WarrantyEndDate	IfcDate
IsExtendedWarranty	IfcBoolean
WarrantyPeriod	IfcTimeMeasure
WarrantyContent	IfcText
Exclusions	IfcText

Table 211 — IfcDistributionFlowElement Property Sets for Objects

Axis Geometry

The Axis Geometry concept applies to this entity as shown in Table 212.

Identifier	Type	Items

Table 212 — IfcDistributionFlowElement Axis Geometry

This represents the 3D flow path of the item having IfcShapeRepresentation.RepresentationType of 'Curve3D' and containing a single IfcBoundedCurve subtype such as IfcPolyline, IfcTrimmedCurve, or IfcCompositeCurve. For elements containing directional ports (IfcDistributionPort with FlowDirection of SOURCE or SINK), the direction of the curve indicates direction of flow where a SINK port is positioned at the start of the curve and a SOURCE port is positioned at the end of the curve. This representation is most applicable to flow segments (pipes, ducts, cables), however may be used at other elements to define a primary flow path if applicable.

Clearance Geometry

The Clearance Geometry concept applies to this entity as shown in Table 213.

Identifier	Type	Items

Table 213 — IfcDistributionFlowElement Clearance Geometry

This represents the 3D clearance volume of the item having RepresentationType of 'Surface3D'. Such clearance region indicates space that should not intersect with the 'Body' representation of other elements, though may intersect with the 'Clearance' representation of other elements. The particular use of clearance space may be for safety, maintenance, or other purposes.

Concept inheritance

#	Concept	Model View
IfcRoot
	Software Identity	Common Use Definitions
	Revision Control	Common Use Definitions
IfcObject
	Object Occurrence Predefined Type	Common Use Definitions
IfcElement
	Product Local Placement	Common Use Definitions
	Box Geometry	Common Use Definitions
	FootPrint Geometry	Common Use Definitions
	Body SurfaceOrSolidModel Geometry	Common Use Definitions
	Body SurfaceModel Geometry	Common Use Definitions
	Body Tessellation Geometry	Common Use Definitions
	Body Brep Geometry	Common Use Definitions
	Body AdvancedBrep Geometry	Common Use Definitions
	Body CSG Geometry	Common Use Definitions
	Mapped Geometry	Common Use Definitions
	Mesh Geometry	Common Use Definitions
IfcDistributionElement
	Quantity Sets	Common Use Definitions
	Spatial Containment	Common Use Definitions
IfcDistributionFlowElement
	Object Typing	Common Use Definitions
	Property Sets for Objects	Common Use Definitions
	Axis Geometry	Common Use Definitions
	Clearance Geometry	Common Use Definitions

Formal representations

XSD Specification

 <xs:element name="IfcDistributionFlowElement" type="ifc:IfcDistributionFlowElement" substitutionGroup="ifc:IfcDistributionElement" nillable="true"/>

 <xs:complexType name="IfcDistributionFlowElement">

  <xs:complexContent>

   <xs:extension base="ifc:IfcDistributionElement"/>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcDistributionFlowElement

 SUPERTYPE OF(ONEOF(IfcDistributionChamberElement, IfcEnergyConversionDevice, IfcFlowController, IfcFlowFitting, IfcFlowMovingDevice, IfcFlowSegment, IfcFlowStorageDevice, IfcFlowTerminal, IfcFlowTreatmentDevice))

 SUBTYPE OF (IfcDistributionElement);

 INVERSE

  HasControlElements : SET [0:1] OF IfcRelFlowControlElements FOR RelatingFlowElement;

END_ENTITY;

 EXPRESS-G diagram

Link to this page

	Komponente der TGA (allgemein)
	Distribution Flow Element
	Elément de distribution de fluide

Item	Change	Description
IFC2x3 to IFC4
IfcDistributionFlowElement
OwnerHistory	MODIFIED	Instantiation changed to OPTIONAL.
IFC4 Addendum 1
IfcDistributionFlowElement
HasCoverings	ADDED
