A permit is a permission to perform work in places and on artifacts where regulatory, security or other access restrictions apply.
HISTORY New entity in IFC2x2.
IFC4 CHANGE Attribute PermitID renamed to Identification and promoted to supertype IfcControl, attributes PredefinedType, Status, and LongDescription added.
| # | Attribute | Type | Cardinality | Description | G |
|---|---|---|---|---|---|
| 7 | PredefinedType | IfcPermitTypeEnum | ? |
Identifies the predefined types of permit that can be granted.
IFC4 CHANGE The attribute has been added. | X |
| 8 | Status | IfcLabel | ? |
The status currently assigned to the permit.
IFC4 CHANGE The attribute has been added. | X |
| 9 | LongDescription | IfcText | ? |
Detailed description of the request.

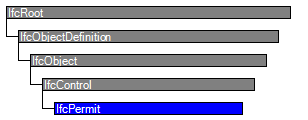

IFC4 CHANGE The attribute has been added. | X |
| # | Attribute | Type | Cardinality | Description | G |
|---|---|---|---|---|---|
| IfcRoot | |||||
| 1 | GlobalId | IfcGloballyUniqueId | Assignment of a globally unique identifier within the entire software world. | X | |
| 2 | OwnerHistory | IfcOwnerHistory | ? |
Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE only the last modification in stored - either as addition, deletion or modification. IFC4 CHANGE The attribute has been changed to be OPTIONAL. | X |
| 3 | Name | IfcLabel | ? | Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. | X |
| 4 | Description | IfcText | ? | Optional description, provided for exchanging informative comments. | X |
| IfcObjectDefinition | |||||
| HasAssignments | IfcRelAssigns @RelatedObjects | S[0:?] | Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. | X | |
| Nests | IfcRelNests @RelatedObjects | S[0:1] | References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE The inverse attribute datatype has been added and separated from Decomposes defined at IfcObjectDefinition. | X | |
| IsNestedBy | IfcRelNests @RelatingObject | S[0:?] | References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).
IFC4 CHANGE The inverse attribute datatype has been added and separated from IsDecomposedBy defined at IfcObjectDefinition. | X | |
| HasContext | IfcRelDeclares @RelatedDefinitions | S[0:1] | References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.
IFC4 CHANGE The inverse attribute datatype has been added. | X | |
| IsDecomposedBy | IfcRelAggregates @RelatingObject | S[0:?] | References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).
IFC4 CHANGE The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates. | X | |
| Decomposes | IfcRelAggregates @RelatedObjects | S[0:1] | References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates. | X | |
| HasAssociations | IfcRelAssociates @RelatedObjects | S[0:?] | Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. | X | |
| IfcObject | |||||
| 5 | ObjectType | IfcLabel | ? |
The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.
| X |
| IsDeclaredBy | IfcRelDefinesByObject @RelatedObjects | S[0:1] | Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.
IFC4 CHANGE New inverse relationship, change made with upward compatibility for file based exchange. | X | |
| Declares | IfcRelDefinesByObject @RelatingObject | S[0:?] | Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.
IFC4 CHANGE New inverse relationship, change made with upward compatibility for file based exchange. | X | |
| IsTypedBy | IfcRelDefinesByType @RelatedObjects | S[0:1] | Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type.
IFC4 CHANGE New inverse relationship, the link to IfcRelDefinesByType had previously be included in the inverse relationship IfcRelDefines. Change made with upward compatibility for file based exchange. | X | |
| IsDefinedBy | IfcRelDefinesByProperties @RelatedObjects | S[0:?] | Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object.
IFC4 CHANGE The data type has been changed from IfcRelDefines to IfcRelDefinesByProperties with upward compatibility for file based exchange. | X | |
| IfcControl | |||||
| 6 | Identification | IfcIdentifier | ? |
An identifying designation given to a control
It is the identifier at the occurrence level.
IFC4 CHANGE Attribute unified by promoting from various subtypes of IfcControl. | X |
| Controls | IfcRelAssignsToControl @RelatingControl | S[0:?] | Reference to the relationship that associates the control to the object(s) being controlled. | X | |
| IfcPermit | |||||
| 7 | PredefinedType | IfcPermitTypeEnum | ? |
Identifies the predefined types of permit that can be granted.
IFC4 CHANGE The attribute has been added. | X |
| 8 | Status | IfcLabel | ? |
The status currently assigned to the permit.
IFC4 CHANGE The attribute has been added. | X |
| 9 | LongDescription | IfcText | ? |
Detailed description of the request.
IFC4 CHANGE The attribute has been added. | X |
Approval
The Approval Association concept applies to this entity.
Approvals may be associated to indicate the status of acceptance or rejection using the IfcRelAssociatesApproval relationship where RelatingApproval refers to an IfcApproval and RelatedObjects contains the IfcPermit. Approvals may be split into sub-approvals using IfcApprovalRelationship to track approval status separately for each party where RelatingApproval refers to the higher-level approval and RelatedApprovals contains one or more lower-level approvals. The hierarchy of approvals implies sequencing such that a higher-level approval is not executed until all of its lower-level approvals have been accepted.
Property Sets for Objects
The Property Sets for Objects concept template applies to this entity as shown in Table 246.
| |||||||||||||||||||
Table 246 — IfcPermit Property Sets for Objects |
Aggregation
The Aggregation concept template applies to this entity as shown in Table 247.
Table 247 — IfcPermit Aggregation |
Nesting
The Object Nesting concept template applies to this entity as shown in Table 248.
| ||||
Table 248 — IfcPermit Object Nesting |
Control Assignment
The Control Assignment concept applies to this entity.

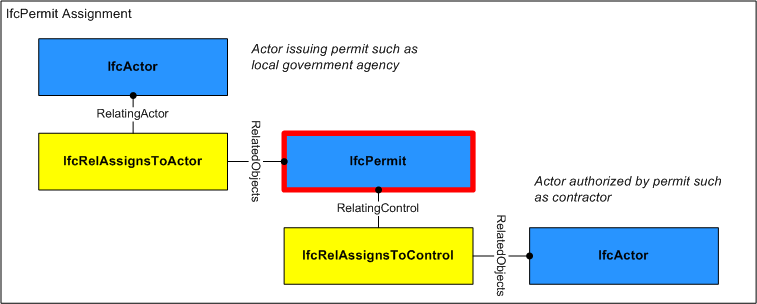

Figure 282 illustrates assignment relationships as indicated:
The IfcPermit may have assignments of its own using the IfcRelAssignsToControl relationship where RelatingControl refers to the IfcPermit and RelatedObjects contains one or more objects of the following types:
 |
Figure 282 — Permit assignment |
Instance diagram
<?xml version="1.0"?>
<ConceptRoot xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="6aeffc46-50b5-4e7a-a56c-7c91cdb34e5e" name="IfcPermit" status="sample" applicableRootEntity="IfcPermit">
<Applicability uuid="00000000-0000-0000-0000-000000000000" status="sample">
<Template ref="af1a7074-8690-44b2-80fe-9b46a17b8053" />
<TemplateRules operator="and" />
</Applicability>
<Concepts>
<Concept uuid="755429c9-c43c-4d41-b2c6-c7aee60b09ec" name="Approval" status="sample" override="false">
<Template ref="52561fda-4281-409d-aa07-da485302249e" />
</Concept>
<Concept uuid="371b9069-aaa5-43ec-8d19-ca124b4e1ed8" name="Property Sets for Objects" status="sample" override="false">
<Template ref="f74255a6-0c0e-4f31-84ad-24981db62461" />
<TemplateRules operator="and">
<TemplateRule Parameters="PsetName[Value]='Pset_Permit'" />
</TemplateRules>
</Concept>
<Concept uuid="47c03266-a28a-44d2-acda-b0518776af98" name="Aggregation" status="sample" override="false">
<Template ref="02eefcc6-b26c-4f20-9c7c-c30ae74eb9a9" />
<TemplateRules operator="and">
<TemplateRule Description="A work calendar may indicate the time period of the permit and allowed times when work may be performed. Such work calendar may have assigned resources indicating equipment or labor permitted at various times." Parameters="" />
<TemplateRule Description="A work schedule may indicate tasks and scheduled times where the work schedule type may designate whether tasks and/or times are planned or actual. Such work schedule may have assigned tasks indicating detail, where tasks may be assigned to products and may have assigned resources." Parameters="" />
</TemplateRules>
</Concept>
<Concept uuid="0e30797e-4df0-4c29-bd31-a3be6d04592d" name="Nesting" status="sample" override="false">
<Template ref="38ca8788-5e47-411c-8294-d56f9e9a5691" />
<TemplateRules operator="and">
<TemplateRule Description="A permit may be nested to indicate permit amendments, in order of issue." Parameters="Type[Type]='IfcPermit'" />
</TemplateRules>
</Concept>
<Concept uuid="f19ffd8d-fcec-4331-847a-657670348ae8" name="Control Assignment" status="sample" override="false">
<Template ref="813e73fe-5641-4648-a680-8887cf4359f1" />
</Concept>
</Concepts>
</ConceptRoot>
| # | Concept | Template | Model View |
|---|---|---|---|
| IfcRoot | |||
| Identity | Software Identity | General Usage | |
| Revision Control | Revision Control | General Usage | |
| IfcObjectDefinition | |||
| Classification Association | Classification Association | General Usage | |
| IfcObject | |||
| Object User Identity | Object User Identity | General Usage | |
| Object Predefined Type | Object Predefined Type | General Usage | |
| Object Typing | Object Typing | General Usage | |
| Property Sets with Override | Property Sets with Override | General Usage | |
| IfcPermit | |||
| Approval | Approval Association | General Usage | |
| Property Sets for Objects | Property Sets for Objects | General Usage | |
| Aggregation | Aggregation | General Usage | |
| Nesting | Object Nesting | General Usage | |
| Control Assignment | Control Assignment | General Usage | |
<xs:element name="IfcPermit" type="ifc:IfcPermit" substitutionGroup="ifc:IfcControl" nillable="true"/>
<xs:complexType name="IfcPermit">
<xs:complexContent>
<xs:extension base="ifc:IfcControl">
<xs:attribute name="PredefinedType" type="ifc:IfcPermitTypeEnum" use="optional"/>
<xs:attribute name="Status" type="ifc:IfcLabel" use="optional"/>
<xs:attribute name="LongDescription" type="ifc:IfcText" use="optional"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
ENTITY IfcPermit
SUBTYPE OF (IfcControl);
PredefinedType : OPTIONAL IfcPermitTypeEnum;
Status : OPTIONAL IfcLabel;
LongDescription : OPTIONAL IfcText;
END_ENTITY;
