IfcSlabStandardCase

Natural language names
deDecke / Dachfläche / Bodenplatte - Standard
enSlab Standard Case
frDalle standard
Change log
ItemSPFXMLChangeDescription
IFC2x3 to IFC4
    IfcSlabStandardCaseADDED
Semantic definitions at the entity
Entity definition

The standard slab, IfcSlabStandardCase, defines a slab with certain constraints for the provision of material usage, parameters and with certain constraints for the geometric representation. The IfcSlabStandardCase handles all cases of slabs, that:

The definitions of slab openings and niches are the same as given at the supertype IfcSlab. The same agreements to the special types of slabs, as defined in the PredefinedType attribute apply as well.

NOTE  If the IfcSlabStandardCase is of type Landing and is used within an IfcStair or IfcRamp, the special agreements to handle stair and ramp geometry will also affect the geometric representation of the IfcSlabStandardCase.
HISTORY  New entity in IFC4.
Formal Propositions
RuleDescription
HasMaterialLayerSetusageA valid instance of IfcSlabStandardCase relies on the provision of an IfcMaterialLayerSetUsage.
Inherited definitions from supertypes

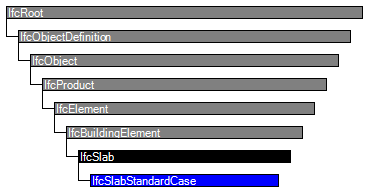

Entity inheritance IfcSlab IfcBuildingElement IfcElement IfcProduct IfcObject IfcObjectDefinition IfcRoot
Attribute inheritance
#AttributeTypeCardinalityDescriptionC
IfcRoot
1GlobalIdIfcGloballyUniqueId[1:1] Assignment of a globally unique identifier within the entire software world. X
2OwnerHistoryIfcOwnerHistory[0:1] Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE  only the last modification in stored - either as addition, deletion or modification.
X
3NameIfcLabel[0:1] Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. X
4DescriptionIfcText[0:1] Optional description, provided for exchanging informative comments.X
IfcObjectDefinition
HasAssignmentsIfcRelAssigns
@RelatedObjects
S[0:?]Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.X
NestsIfcRelNests
@RelatedObjects
S[0:1]References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only). X
IsNestedByIfcRelNests
@RelatingObject
S[0:?]References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types). X
HasContextIfcRelDeclares
@RelatedDefinitions
S[0:1]References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object. X
IsDecomposedByIfcRelAggregates
@RelatingObject
S[0:?]References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts). X
DecomposesIfcRelAggregates
@RelatedObjects
S[0:1]References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only). X
HasAssociationsIfcRelAssociates
@RelatedObjects
S[0:?]Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.X
IfcObject
5ObjectTypeIfcLabel[0:1] The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.
X
IsDeclaredByIfcRelDefinesByObject
@RelatedObjects
S[0:1]Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes. X
DeclaresIfcRelDefinesByObject
@RelatingObject
S[0:?]Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes. X
IsTypedByIfcRelDefinesByType
@RelatedObjects
S[0:1]Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type. X
IsDefinedByIfcRelDefinesByProperties
@RelatedObjects
S[0:?]Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object. X
IfcProduct
6ObjectPlacementIfcObjectPlacement[0:1] Placement of the product in space, the placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constraint (e.g. relative to grid axes). It is determined by the various subtypes of IfcObjectPlacement, which includes the axis placement information to determine the transformation for the object coordinate system.X
7RepresentationIfcProductRepresentation[0:1] Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement.X
ReferencedByIfcRelAssignsToProduct
@RelatingProduct
S[0:?]Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product.X
IfcElement
8TagIfcIdentifier[0:1] The tag (or label) identifier at the particular instance of a product, e.g. the serial number, or the position number. It is the identifier at the occurrence level.X
FillsVoidsIfcRelFillsElement
@RelatedBuildingElement
S[0:1]Reference to the IfcRelFillsElement Relationship that puts the element as a filling into the opening created within another element. X
ConnectedToIfcRelConnectsElements
@RelatingElement
S[0:?]Reference to the element connection relationship. The relationship then refers to the other element to which this element is connected to. X
IsInterferedByElementsIfcRelInterferesElements
@RelatedElement
S[0:?]Reference to the interference relationship to indicate the element that is interfered. The relationship, if provided, indicates that this element has an interference with one or many other elements.
NOTE  There is no indication of precedence between IsInterferedByElements and InterferesElements.
X
InterferesElementsIfcRelInterferesElements
@RelatingElement
S[0:?]Reference to the interference relationship to indicate the element that interferes. The relationship, if provided, indicates that this element has an interference with one or many other elements.
NOTE  There is no indication of precedence between IsInterferedByElements and InterferesElements.
X
HasProjectionsIfcRelProjectsElement
@RelatingElement
S[0:?]Projection relationship that adds a feature (using a Boolean union) to the IfcBuildingElement.X
ReferencedInStructuresIfcRelReferencedInSpatialStructure
@RelatedElements
S[0:?]Reference relationship to the spatial structure element, to which the element is additionally associated. This relationship may not be hierarchical, an element may be referenced by zero, one or many spatial structure elements. X
HasOpeningsIfcRelVoidsElement
@RelatingBuildingElement
S[0:?]Reference to the IfcRelVoidsElement relationship that creates an opening in an element. An element can incorporate zero-to-many openings. For each opening, that voids the element, a new relationship IfcRelVoidsElement is generated. X
IsConnectionRealizationIfcRelConnectsWithRealizingElements
@RealizingElements
S[0:?]Reference to the connection relationship with realizing element. The relationship, if provided, assigns this element as the realizing element to the connection, which provides the physical manifestation of the connection relationship. X
ProvidesBoundariesIfcRelSpaceBoundary
@RelatedBuildingElement
S[0:?]Reference to space boundaries by virtue of the objectified relationship IfcRelSpaceBoundary. It defines the concept of an element bounding spaces. X
ConnectedFromIfcRelConnectsElements
@RelatedElement
S[0:?]Reference to the element connection relationship. The relationship then refers to the other element that is connected to this element. X
ContainedInStructureIfcRelContainedInSpatialStructure
@RelatedElements
S[0:1]Containment relationship to the spatial structure element, to which the element is primarily associated. This containment relationship has to be hierachical, i.e. an element may only be assigned directly to zero or one spatial structure. X
HasCoveringsIfcRelCoversBldgElements
@RelatingBuildingElement
S[0:?]Reference to IfcCovering by virtue of the objectified relationship IfcRelCoversBldgElement. It defines the concept of an element having coverings associated.X
IfcBuildingElement
IfcSlab
9PredefinedTypeIfcSlabTypeEnum[0:1] Predefined generic type for a slab that is specified in an enumeration. There may be a property set given specifically for the predefined types.
NOTE  The PredefinedType shall only be used, if no IfcSlabType is assigned, providing its own IfcSlabType.PredefinedType.
X
IfcSlabStandardCase
Definitions applying to Common Use Definitions

 Instance diagram


Concept usage

Material Layer Set Usage

The Material Layer Set Usage concept applies to this entity.

Multi-layer slabs can be represented by refering to several IfcMaterialLayer's within the IfcMaterialLayerSet that is referenced from the IfcMaterialLayerSetUsage

Material information can also be given at the IfcSlabType, defining the common attribute data for all occurrences of the same type. It is then accessible by the inverse IsDefinedBy relationship pointing to IfcSlabType.HasAssociations and via IfcRelAssociatesMaterial.RelatingMaterial. The IfcSlabStandardCase defines in addition that the IfcSlabType should have a unique IfcMaterialLayerSet, that is referenced by the IfcMaterialLayerSetUsage assigned to all occurrences of this IfcSlabType.

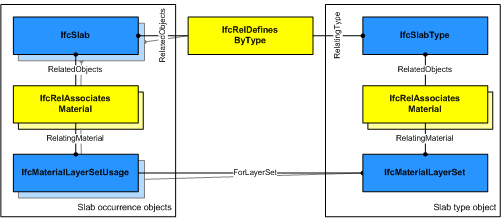

Material layer set and usage
EXAMPLE  Figure 236 illustrates assignment of IfcMaterialLayerSetUsage and IfcMaterialLayerSet to the IfcSlabStandardCase as the slab occurrence and to the IfcSlabType. The same IfcMaterialLayerSet shall be shared by many occurrences of IfcMaterialLayerSetUsage. This relationship shall be consistent to the relationship between the IfcSlabType and the IfcSlabStandardCase.

Figure 236 — Slab type definition



Figure 237 illustrates slab material usage, where the following conventions shall be met:

  • The reference coordinate system is the coordinate system established by the IfcExtrudedAreaSolid.Position.
  • The reference plane is the plane defined by the extruded profile of IfcExtrudedAreaSolid.SweptSolid. The IfcMaterialLayerSetUsage.OffsetFromReferenceLine is given as a distance from this plane.
  • The IfcMaterialLayerSetUsage.DirectionSense defines how the IfcMaterialLayer's are assigned to the reference plane. POSITIVE means in direction to the positive z-axis of the reference coordinate system.
  • The IfcMaterialLayerSetUsage.OffsetFromReferenceLine is the distance parallel to the reference plane and always perpendicular to the base (XY) plane of the reference coordinate system. This is independent of a potential non-perpendicular extrusion given by IfcExtrudedAreaSolid.ExtrudedDirection <> 0.,0.,1. A positive value of IfcMaterialLayerSetUsage.OffsetFromReferenceLine would then point into the positive z-axis of the reference coordinate system.
  • The Thickness of each IfcMaterialLayer shall be the parallel distance (measured perpendicular to the base plane). The TotalThickness of the IfcMaterialLayerSet is the sum of all layer thicknesses and in case of a perpendicular extrusion identical with IfcExtrudedAreaSolid.Depth
  • The IfcMaterialLayerSetUsage.LayerSetDirection is always AXIS3.
slab material layer set
roof slab material layer set

Figure 237 — Slab material layers



Product Local Placement

The Product Local Placement concept applies to this entity as shown in Table 171.

TypeRelativeDescription
IfcLocalPlacementIfcLocalPlacementRelative placement according to position and rotation relative to container.
IfcLocalPlacementAbsolute placement according to position and rotation of world coordinate system.
IfcGridPlacementPlacement according to grid intersection.

Table 171 — IfcSlabStandardCase Product Local Placement

The following restriction is imposed:

  • The local placement shall provide the location and directions for the standard slab, the x/y plane is the plane for the profile, and the z-axis is the extrusion axis for the slab body.


Body SweptSolid Geometry

The Body SweptSolid Geometry concept applies to this entity.

The following additional constraints apply to the swept solid representation:

  • Solid: IfcExtrudedAreaSolid is required,
  • Profile: IfcArbitraryClosedProfileDef, IfcRectangleProfileDef, IfcCircleProfileDef, IfcEllipseProfileDef shall be supported.
  • Extrusion: The profile can be extruded perpendicularly or non-perpendicularly to the plane of the swept profile.
  • Material: The definition of the IfcMaterialLayerSetUsage, particularly of the OffsetFromReferenceLine and the ForLayerSet.TotalThickness, has to be consistent to the 'SweptSolid' representation.



standard slab

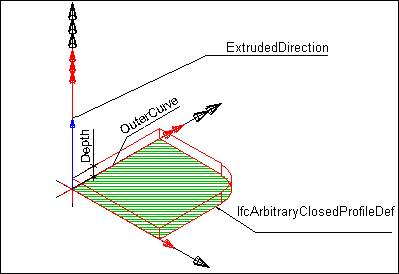

EXAMPLE  Figure 237 illustrates a 'SweptSolid' geometric representation. The following interpretation of dimension parameter applies for polygonal slabs (in ground floor view): IfcArbitraryClosedProfileDef.OuterCurve: closed bounded curve interpreted as area (or foot print) of the slab.

Figure 237 — Slab body extrusion




Body Clipping Geometry

The Body Clipping Geometry concept applies to this entity.

The following constraints apply to the 'Clipping' representation:

  • Solid: see 'SweptSolid' shape representation,
  • Profile: see 'SweptSolid' shape representation,
  • Extrusion: see 'SweptSolid' shape representation,
  • Material: see 'SweptSolid' shape representation,
  • Boolean result: The IfcBooleanClippingResult shall be supported, allowing for Boolean differences between the swept solid (here IfcExtrudedAreaSolid) and one or several IfcHalfSpaceSolid.



advanced slab

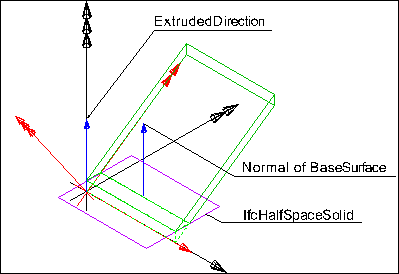

EXAMPLE  Figure 238 illustrates a 'Clipping' geometric representation with definition of a roof slab using advanced geometric representation. The profile is extruded non-perpendicular and the slab body is clipped at the eave.

Figure 238 — Slab body clipping




Concept inheritance

#ConceptModel View
IfcRoot
Software IdentityCommon Use Definitions
Revision ControlCommon Use Definitions
IfcObject
Object Occurrence Predefined TypeCommon Use Definitions
IfcElement
Box GeometryCommon Use Definitions
FootPrint GeometryCommon Use Definitions
Body SurfaceOrSolidModel GeometryCommon Use Definitions
Body SurfaceModel GeometryCommon Use Definitions
Body Tessellation GeometryCommon Use Definitions
Body Brep GeometryCommon Use Definitions
Body AdvancedBrep GeometryCommon Use Definitions
Body CSG GeometryCommon Use Definitions
Mapped GeometryCommon Use Definitions
Mesh GeometryCommon Use Definitions
IfcBuildingElement
Surface 3D GeometryCommon Use Definitions
IfcSlab
Object TypingCommon Use Definitions
Property Sets for ObjectsCommon Use Definitions
Quantity SetsCommon Use Definitions
Material Layer SetCommon Use Definitions
Spatial ContainmentCommon Use Definitions
Surface GeometryCommon Use Definitions
Element VoidingCommon Use Definitions
Product AssignmentCommon Use Definitions
IfcSlabStandardCase
Material Layer Set UsageCommon Use Definitions
Product Local PlacementCommon Use Definitions
Body SweptSolid GeometryCommon Use Definitions
Body Clipping GeometryCommon Use Definitions
Examples
Formal representations
XSD Specification
 <xs:element name="IfcSlabStandardCase" type="ifc:IfcSlabStandardCase" substitutionGroup="ifc:IfcSlab" nillable="true"/>
 <xs:complexType name="IfcSlabStandardCase">
  <xs:complexContent>
   <xs:extension base="ifc:IfcSlab"/>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcSlabStandardCase
 SUBTYPE OF (IfcSlab);
 WHERE
  HasMaterialLayerSetusage : SIZEOF (QUERY(temp <* USEDIN(SELF, 'IFCKERNEL.IFCRELASSOCIATES.RELATEDOBJECTS') | ('IFCPRODUCTEXTENSION.IFCRELASSOCIATESMATERIAL' IN TYPEOF(temp)) AND ('IFCMATERIALRESOURCE.IFCMATERIALLAYERSETUSAGE' IN TYPEOF(temp.RelatingMaterial)) )) = 1;
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram
