IfcDoorStandardCase

Item	Change	Description
IFC2x3 to IFC4
IfcDoorStandardCase	ADDED
IFC4x1 Release Candidate 3
IfcDoorStandardCase	MODIFIED	Status changed to Deprecated.

Inherited definitions from supertypes

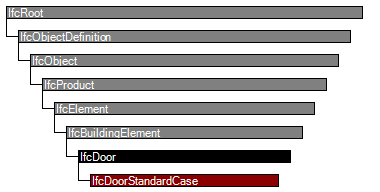

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	G
IfcRoot
1	GlobalId	IfcGloballyUniqueId		Assignment of a globally unique identifier within the entire software world.	X
2	OwnerHistory	IfcOwnerHistory	?	Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object, NOTE only the last modification in stored - either as addition, deletion or modification. IFC4 CHANGE The attribute has been changed to be OPTIONAL.	X
3	Name	IfcLabel	?	Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule.	X
4	Description	IfcText	?	Optional description, provided for exchanging informative comments.	X
IfcObjectDefinition
	HasAssignments	IfcRelAssigns @RelatedObjects	S[0:?]	Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.	X
	Nests	IfcRelNests @RelatedObjects	S[0:1]	References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only). IFC4 CHANGE The inverse attribute datatype has been added and separated from Decomposes defined at IfcObjectDefinition.	X
	IsNestedBy	IfcRelNests @RelatingObject	S[0:?]	References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types). IFC4 CHANGE The inverse attribute datatype has been added and separated from IsDecomposedBy defined at IfcObjectDefinition.	X
	HasContext	IfcRelDeclares @RelatedDefinitions	S[0:1]	References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object. IFC4 CHANGE The inverse attribute datatype has been added.	X
	IsDecomposedBy	IfcRelAggregates @RelatingObject	S[0:?]	References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts). IFC4 CHANGE The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates.	X
	Decomposes	IfcRelAggregates @RelatedObjects	S[0:1]	References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only). IFC4 CHANGE The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates.	X
	HasAssociations	IfcRelAssociates @RelatedObjects	S[0:?]	Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.	X
IfcObject
5	ObjectType	IfcLabel	?	The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.	X
	IsDeclaredBy	IfcRelDefinesByObject @RelatedObjects	S[0:1]	Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes. IFC4 CHANGE New inverse relationship, change made with upward compatibility for file based exchange.	X
	Declares	IfcRelDefinesByObject @RelatingObject	S[0:?]	Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes. IFC4 CHANGE New inverse relationship, change made with upward compatibility for file based exchange.	X
	IsTypedBy	IfcRelDefinesByType @RelatedObjects	S[0:1]	Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type. IFC4 CHANGE New inverse relationship, the link to IfcRelDefinesByType had previously be included in the inverse relationship IfcRelDefines. Change made with upward compatibility for file based exchange.	X
	IsDefinedBy	IfcRelDefinesByProperties @RelatedObjects	S[0:?]	Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object. IFC4 CHANGE The data type has been changed from IfcRelDefines to IfcRelDefinesByProperties with upward compatibility for file based exchange.	X
IfcProduct
6	ObjectPlacement	IfcObjectPlacement	?	Placement of the product in space, the placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constraint (e.g. relative to grid axes). It is determined by the various subtypes of IfcObjectPlacement, which includes the axis placement information to determine the transformation for the object coordinate system.	X
7	Representation	IfcProductRepresentation	?	Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement.	X
	ReferencedBy	IfcRelAssignsToProduct @RelatingProduct	S[0:?]	Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product.	X
IfcElement
8	Tag	IfcIdentifier	?	The tag (or label) identifier at the particular instance of a product, e.g. the serial number, or the position number. It is the identifier at the occurrence level.	X
	FillsVoids	IfcRelFillsElement @RelatedBuildingElement	S[0:1]	Reference to the IfcRelFillsElement Relationship that puts the element as a filling into the opening created within another element.	X
	ConnectedTo	IfcRelConnectsElements @RelatingElement	S[0:?]	Reference to the element connection relationship. The relationship then refers to the other element to which this element is connected to.	X
	IsInterferedByElements	IfcRelInterferesElements @RelatedElement	S[0:?]	Reference to the interference relationship to indicate the element that is interfered. The relationship, if provided, indicates that this element has an interference with one or many other elements. NOTE There is no indication of precedence between IsInterferedByElements and InterferesElements. IFC4 CHANGE New inverse relationship.	X
	InterferesElements	IfcRelInterferesElements @RelatingElement	S[0:?]	Reference to the interference relationship to indicate the element that interferes. The relationship, if provided, indicates that this element has an interference with one or many other elements. NOTE There is no indication of precedence between IsInterferedByElements and InterferesElements. IFC4 CHANGE New inverse relationship.	X
	HasProjections	IfcRelProjectsElement @RelatingElement	S[0:?]	Projection relationship that adds a feature (using a Boolean union) to the IfcBuildingElement.	X
	ReferencedInStructures	IfcRelReferencedInSpatialStructure @RelatedElements	S[0:?]	Reference relationship to the spatial structure element, to which the element is additionally associated. This relationship may not be hierarchical, an element may be referenced by zero, one or many spatial structure elements. IFC2x3 CHANGE The inverse attribute has been added with upward compatibility for file based exchange.	X
	HasOpenings	IfcRelVoidsElement @RelatingBuildingElement	S[0:?]	Reference to the IfcRelVoidsElement relationship that creates an opening in an element. An element can incorporate zero-to-many openings. For each opening, that voids the element, a new relationship IfcRelVoidsElement is generated.	X
	IsConnectionRealization	IfcRelConnectsWithRealizingElements @RealizingElements	S[0:?]	Reference to the connection relationship with realizing element. The relationship, if provided, assigns this element as the realizing element to the connection, which provides the physical manifestation of the connection relationship.	X
	ProvidesBoundaries	IfcRelSpaceBoundary @RelatedBuildingElement	S[0:?]	Reference to space boundaries by virtue of the objectified relationship IfcRelSpaceBoundary. It defines the concept of an element bounding spaces.	X
	ConnectedFrom	IfcRelConnectsElements @RelatedElement	S[0:?]	Reference to the element connection relationship. The relationship then refers to the other element that is connected to this element.	X
	ContainedInStructure	IfcRelContainedInSpatialStructure @RelatedElements	S[0:1]	Containment relationship to the spatial structure element, to which the element is primarily associated. This containment relationship has to be hierachical, i.e. an element may only be assigned directly to zero or one spatial structure.	X
	HasCoverings	IfcRelCoversBldgElements @RelatingBuildingElement	S[0:?]	Reference to IfcCovering by virtue of the objectified relationship IfcRelCoversBldgElement. It defines the concept of an element having coverings associated.	X
IfcBuildingElement
IfcDoor
9	OverallHeight	IfcPositiveLengthMeasure	?	Overall measure of the height, it reflects the Z Dimension of a bounding box, enclosing the ~~body of the~~ door opening. If omitted, the OverallHeight should be taken from the geometric representation of the IfcOpening in which the door is inserted. NOTE The body of the door might be taller then the door opening (e.g. in cases where the door lining includes a casing). In these cases the OverallHeight shall still be given as the door opening height, and not as the total height of the door lining.	X
10	OverallWidth	IfcPositiveLengthMeasure	?	Overall measure of the width, it reflects the X Dimension of a bounding box, enclosing the ~~body of the~~ door opening. If omitted, the OverallWidth should be taken from the geometric representation of the IfcOpening in which the door is inserted. NOTE The body of the door might be wider then the door opening (e.g. in cases where the door lining includes a casing). In these cases the OverallWidth shall still be given as the door opening width, and not as the total width of the door lining.	X
11	PredefinedType	IfcDoorTypeEnum	?	Predefined generic type for a door that is specified in an enumeration. There may be a property set given specificly for the predefined types. NOTE The PredefinedType shall only be used, if no IfcDoorType is assigned, providing its own IfcDoorType.PredefinedType. IFC4 CHANGE The attribute has been added at the end of the entity definition.	X
12	OperationType	IfcDoorTypeOperationEnum	?	Type defining the general layout and operation of the door type in terms of the partitioning of panels and panel operations. NOTE The OperationType shall only be used, if no type object IfcDoorType is assigned, providing its own IfcDoorType.OperationType. IFC4 CHANGE The attribute has been added at the end of the entity definition.	X
13	UserDefinedOperationType	IfcLabel	?	Designator for the user defined operation type, shall only be provided, if the value of OperationType is set to USERDEFINED.	X
IfcDoorStandardCase

Definitions applying to General Usage

Instance diagram

Concept usage

Profile 3D Geometry

The Profile 3D Geometry concept applies to this entity.

The door profile is represented by a three-dimensional closed curve within a particular shape representation. The profile is used to apply the parameter of the parametric door representation. The following attribute values for the IfcShapeRepresentation holding this geometric representation shall be used:

RepresentationIdentifier : 'Profile'
RepresentationType : 'Curve3D' or 'GeometricCurveSet', in case of 'GeometricCurveSet' only a single closed curve shall be contained in the set of IfcShapeRepresentation.Items.

The following additional constraints apply to the 'Profile' representation type:

Curve: being an IfcPolyline defining a rectangle.
Position: The curve shall lie in the xz plane of the object placement coordinate (the y coordinate values of the IfcCartesianPoint's shall be 0.).

EXAMPLE Figure 223 illustrates applying the door lining parameters to the door profile shape representation. The profile defines the outer boundary to which the door lining parameters relate as:

IfcDoorLiningProperties.LiningDepth starting at distance defined by LiningOffset going into the positive y direction.

IfcDoorLiningProperties.LiningThickness offset into the inner side of the rectangle.

IfcDoorLiningProperties.LiningOffset distance along the positive y direction to where the LiningDepth applies.

IfcDoorLiningProperties.ThresholdThickness starting at the bottom edge of the rectangle into the inner side of the rectangle

IfcDoorLiningProperties.ThresholdDepth starting at distance defined by LiningOffset going into the positive y direction.

IfcDoorLiningProperties.TransomOffset starting at the bottom edge of the rectangle (along local x axis) into the inner side of the rectangle, distance provided as percentage of overall height. Distance to the centre line of the transom.

Figure 223 — Door profile

mvdXML Specification


<?xml version="1.0"?>

<ConceptRoot xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="9d599596-3492-4df1-90a5-c03fc90439ea" name="IfcDoorStandardCase" status="sample" applicableRootEntity="IfcDoorStandardCase">

  <Applicability uuid="00000000-0000-0000-0000-000000000000" status="sample">

    <Template ref="2c5303c3-1449-4b3e-8162-e9f405f6e836" />

    <TemplateRules operator="and" />

  </Applicability>

  <Concepts>

    <Concept uuid="0d95222e-eff2-45ae-ad74-8102ad593373" name="Profile 3D Geometry" status="sample" override="false">

      <Template ref="1d897220-740d-4793-9a8d-5d2774c7bc00" />

    </Concept>

  </Concepts>

</ConceptRoot>

Concept inheritance

#	Concept	Template	Model View
IfcRoot
	Identity	Software Identity	General Usage
	Revision Control	Revision Control	General Usage
IfcObjectDefinition
	Classification Association	Classification Association	General Usage
IfcObject
	Object User Identity	Object User Identity	General Usage
	Object Predefined Type	Object Predefined Type	General Usage
	Property Sets with Override	Property Sets with Override	General Usage
IfcProduct
	Product Placement	Product Placement	General Usage
	Product Geometric Representation	Product Geometric Representation	General Usage
IfcElement
	CoG Geometry	CoG Geometry	General Usage
	Box Geometry	Box Geometry	General Usage
	FootPrint Geometry	FootPrint Geometry	General Usage
	Body SurfaceOrSolidModel Geometry	Body SurfaceOrSolidModel Geometry	General Usage
	Body SurfaceModel Geometry	Body SurfaceModel Geometry	General Usage
	Body Tessellation Geometry	Body Tessellation Geometry	General Usage
	Body Brep Geometry	Body Brep Geometry	General Usage
	Body AdvancedBrep Geometry	Body AdvancedBrep Geometry	General Usage
	Body CSG Geometry	Body CSG Geometry	General Usage
	Mapped Geometry	Mapped Geometry	General Usage
	Element Voiding	Element Voiding	General Usage
	Element Projecting	Element Projecting	General Usage
IfcBuildingElement
	Product Assignment	Product Assignment	General Usage
	Surface 3D Geometry	Surface 3D Geometry	General Usage
IfcDoor
	Door Attributes	Door Attributes	General Usage
	Object Typing	Object Typing	General Usage
	Property Sets for Objects	Property Sets for Objects	General Usage
	Quantity Sets	Quantity Sets	General Usage
	Material Constituent Set	Material Constituent Set	General Usage
	Product Local Placement	Product Local Placement	General Usage
	Spatial Containment	Spatial Containment	General Usage
IfcDoorStandardCase
	Profile 3D Geometry	Profile 3D Geometry	General Usage

IfcDoorStandardCase

Semantic definitions at the entity

Inherited definitions from supertypes

Definitions applying to General Usage

Formal representations

	Tür - Standard
	Door Standard Case
	porte standard
