 | Spannglied |
 | Tendon |
 | Cable |
| Item | SPF | XML | Change | Description | IFC2x3 to IFC4 |
|---|---|---|---|---|
| IfcTendon | ||||
| OwnerHistory | MODIFIED | Instantiation changed to OPTIONAL. | ||
| PredefinedType | MODIFIED | Instantiation changed to OPTIONAL. | ||
| NominalDiameter | MODIFIED | Instantiation changed to OPTIONAL. | ||
| CrossSectionArea | MODIFIED | Instantiation changed to OPTIONAL. | IFC4 Addendum 1 | |
| IfcTendon | ||||
| HasCoverings | ADDED |
A tendon is a steel element such as a wire, cable, bar, rod, or strand used to impart prestress to concrete when the element is tensioned.
NOTE Definition according to ISO 6707-1: steel bar(s) or groups of bars, strands or wires given a tensile stress that produces a compressive stress in prestressed concrete or masonry.
HISTORY New entity in IFC2x2.
IFC4 CHANGE Attribute PredefinedType made optional. NominalDiameter and CrossSectionArea made optional and deprecated; this information can now be provided by IfcTendonType. Description of FrictionCoefficient corrected.
| # | Attribute | Type | Cardinality | Description | G |
|---|---|---|---|---|---|
| 10 | PredefinedType | IfcTendonTypeEnum | ? |
Predefined generic types for a tendon.
IFC4 CHANGE Attribute made optional. | X |
| 11 | NominalDiameter | IfcPositiveLengthMeasure | ? |
The nominal diameter defining the cross-section size of the tendon.
IFC4 CHANGE Attribute made optional and deprecated. Use respective attribute at IfcTendonType instead. | X |
| 12 | CrossSectionArea | IfcAreaMeasure | ? |
The effective cross-section area of the tendon.

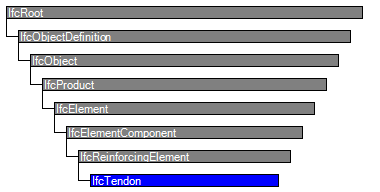

IFC4 CHANGE Attribute made optional and deprecated. Use respective attribute at IfcTendonType instead. | X |
| 13 | TensionForce | IfcForceMeasure | ? | The maximum allowed tension force that can be applied on the tendon. | X |
| 14 | PreStress | IfcPressureMeasure | ? | The prestress to be applied on the tendon. | X |
| 15 | FrictionCoefficient | IfcNormalisedRatioMeasure | ? | The friction coefficient between tendon and tendon sheet while the tendon is unbonded. | X |
| 16 | AnchorageSlip | IfcPositiveLengthMeasure | ? | The deformation of an anchor or slippage of tendons when the prestressing device is released. | X |
| 17 | MinCurvatureRadius | IfcPositiveLengthMeasure | ? | The smallest curvature radius calculated on the whole effective length of the tendon where the tension properties are still valid. | X |
| Rule | Description |
|---|---|
| CorrectPredefinedType | Either the PredefinedType attribute is unset (e.g. because an IfcTendonType is associated), or the inherited attribute ObjectType shall be provided, if the PredefinedType is set to USERDEFINED. |
| CorrectTypeAssigned | If this occurrence is defined by a type object, the latter has to be an IfcTendonType. |
| # | Attribute | Type | Cardinality | Description | G |
|---|---|---|---|---|---|
| IfcRoot | |||||
| 1 | GlobalId | IfcGloballyUniqueId | Assignment of a globally unique identifier within the entire software world. | X | |
| 2 | OwnerHistory | IfcOwnerHistory | ? |
Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE only the last modification in stored - either as addition, deletion or modification. IFC4 CHANGE The attribute has been changed to be OPTIONAL. | X |
| 3 | Name | IfcLabel | ? | Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. | X |
| 4 | Description | IfcText | ? | Optional description, provided for exchanging informative comments. | X |
| IfcObjectDefinition | |||||
| HasAssignments | IfcRelAssigns @RelatedObjects | S[0:?] | Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. | X | |
| Nests | IfcRelNests @RelatedObjects | S[0:1] | References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE The inverse attribute datatype has been added and separated from Decomposes defined at IfcObjectDefinition. | X | |
| IsNestedBy | IfcRelNests @RelatingObject | S[0:?] | References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).
IFC4 CHANGE The inverse attribute datatype has been added and separated from IsDecomposedBy defined at IfcObjectDefinition. | X | |
| HasContext | IfcRelDeclares @RelatedDefinitions | S[0:1] | References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.
IFC4 CHANGE The inverse attribute datatype has been added. | X | |
| IsDecomposedBy | IfcRelAggregates @RelatingObject | S[0:?] | References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).
IFC4 CHANGE The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates. | X | |
| Decomposes | IfcRelAggregates @RelatedObjects | S[0:1] | References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates. | X | |
| HasAssociations | IfcRelAssociates @RelatedObjects | S[0:?] | Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. | X | |
| IfcObject | |||||
| 5 | ObjectType | IfcLabel | ? |
The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.
| X |
| IsDeclaredBy | IfcRelDefinesByObject @RelatedObjects | S[0:1] | Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.
IFC4 CHANGE New inverse relationship, change made with upward compatibility for file based exchange. | X | |
| Declares | IfcRelDefinesByObject @RelatingObject | S[0:?] | Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.
IFC4 CHANGE New inverse relationship, change made with upward compatibility for file based exchange. | X | |
| IsTypedBy | IfcRelDefinesByType @RelatedObjects | S[0:1] | Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type.
IFC4 CHANGE New inverse relationship, the link to IfcRelDefinesByType had previously be included in the inverse relationship IfcRelDefines. Change made with upward compatibility for file based exchange. | X | |
| IsDefinedBy | IfcRelDefinesByProperties @RelatedObjects | S[0:?] | Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object.
IFC4 CHANGE The data type has been changed from IfcRelDefines to IfcRelDefinesByProperties with upward compatibility for file based exchange. | X | |
| IfcProduct | |||||
| 6 | ObjectPlacement | IfcObjectPlacement | ? | Placement of the product in space, the placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constraint (e.g. relative to grid axes). It is determined by the various subtypes of IfcObjectPlacement, which includes the axis placement information to determine the transformation for the object coordinate system. | X |
| 7 | Representation | IfcProductRepresentation | ? | Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement. | X |
| ReferencedBy | IfcRelAssignsToProduct @RelatingProduct | S[0:?] | Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product. | X | |
| IfcElement | |||||
| 8 | Tag | IfcIdentifier | ? | The tag (or label) identifier at the particular instance of a product, e.g. the serial number, or the position number. It is the identifier at the occurrence level. | X |
| FillsVoids | IfcRelFillsElement @RelatedBuildingElement | S[0:1] | Reference to the IfcRelFillsElement Relationship that puts the element as a filling into the opening created within another element. | X | |
| ConnectedTo | IfcRelConnectsElements @RelatingElement | S[0:?] | Reference to the element connection relationship. The relationship then refers to the other element to which this element is connected to. | X | |
| IsInterferedByElements | IfcRelInterferesElements @RelatedElement | S[0:?] | Reference to the interference relationship to indicate the element that is interfered. The relationship, if provided, indicates that this element has an interference with one or many other elements.
NOTE There is no indication of precedence between IsInterferedByElements and InterferesElements. IFC4 CHANGE New inverse relationship. | X | |
| InterferesElements | IfcRelInterferesElements @RelatingElement | S[0:?] | Reference to the interference relationship to indicate the element that interferes. The relationship, if provided, indicates that this element has an interference with one or many other elements.
NOTE There is no indication of precedence between IsInterferedByElements and InterferesElements. IFC4 CHANGE New inverse relationship. | X | |
| HasProjections | IfcRelProjectsElement @RelatingElement | S[0:?] | Projection relationship that adds a feature (using a Boolean union) to the IfcBuildingElement. | X | |
| ReferencedInStructures | IfcRelReferencedInSpatialStructure @RelatedElements | S[0:?] | Reference relationship to the spatial structure element, to which the element is additionally associated. This relationship may not be hierarchical, an element may be referenced by zero, one or many spatial structure elements.
IFC2x3 CHANGE The inverse attribute has been added with upward compatibility for file based exchange. | X | |
| HasOpenings | IfcRelVoidsElement @RelatingBuildingElement | S[0:?] | Reference to the IfcRelVoidsElement relationship that creates an opening in an element. An element can incorporate zero-to-many openings. For each opening, that voids the element, a new relationship IfcRelVoidsElement is generated. | X | |
| IsConnectionRealization | IfcRelConnectsWithRealizingElements @RealizingElements | S[0:?] | Reference to the connection relationship with realizing element. The relationship, if provided, assigns this element as the realizing element to the connection, which provides the physical manifestation of the connection relationship. | X | |
| ProvidesBoundaries | IfcRelSpaceBoundary @RelatedBuildingElement | S[0:?] | Reference to space boundaries by virtue of the objectified relationship IfcRelSpaceBoundary. It defines the concept of an element bounding spaces. | X | |
| ConnectedFrom | IfcRelConnectsElements @RelatedElement | S[0:?] | Reference to the element connection relationship. The relationship then refers to the other element that is connected to this element. | X | |
| ContainedInStructure | IfcRelContainedInSpatialStructure @RelatedElements | S[0:1] | Containment relationship to the spatial structure element, to which the element is primarily associated. This containment relationship has to be hierachical, i.e. an element may only be assigned directly to zero or one spatial structure. | X | |
| HasCoverings | IfcRelCoversBldgElements @RelatingBuildingElement | S[0:?] | Reference to IfcCovering by virtue of the objectified relationship IfcRelCoversBldgElement. It defines the concept of an element having coverings associated. | X | |
| IfcElementComponent | |||||
| IfcReinforcingElement | |||||
| 9 | SteelGrade | IfcLabel | ? |
Deprecated.
IFC4 CHANGE Attribute deprecated. Use material association at IfcReinforcingElementType instead. | X |
| IfcTendon | |||||
| 10 | PredefinedType | IfcTendonTypeEnum | ? |
Predefined generic types for a tendon.
IFC4 CHANGE Attribute made optional. | X |
| 11 | NominalDiameter | IfcPositiveLengthMeasure | ? |
The nominal diameter defining the cross-section size of the tendon.
IFC4 CHANGE Attribute made optional and deprecated. Use respective attribute at IfcTendonType instead. | X |
| 12 | CrossSectionArea | IfcAreaMeasure | ? |
The effective cross-section area of the tendon.
IFC4 CHANGE Attribute made optional and deprecated. Use respective attribute at IfcTendonType instead. | X |
| 13 | TensionForce | IfcForceMeasure | ? | The maximum allowed tension force that can be applied on the tendon. | X |
| 14 | PreStress | IfcPressureMeasure | ? | The prestress to be applied on the tendon. | X |
| 15 | FrictionCoefficient | IfcNormalisedRatioMeasure | ? | The friction coefficient between tendon and tendon sheet while the tendon is unbonded. | X |
| 16 | AnchorageSlip | IfcPositiveLengthMeasure | ? | The deformation of an anchor or slippage of tendons when the prestressing device is released. | X |
| 17 | MinCurvatureRadius | IfcPositiveLengthMeasure | ? | The smallest curvature radius calculated on the whole effective length of the tendon where the tension properties are still valid. | X |
Object Typing
The Object Typing concept template applies to this entity as shown in Table 665.
| ||||
Table 665 — IfcTendon Object Typing |
Property Sets
The Property Sets for Objects concept template applies to this entity as shown in Table 666.
Quantity Sets
The Quantity Sets concept template applies to this entity as shown in Table 667.
| ||||
Table 667 — IfcTendon Quantity Sets |
Placement
The Product Local Placement concept template applies to this entity as shown in Table 668.
| ||||||
Table 668 — IfcTendon Product Local Placement |
Body Geometry
The Body Geometry concept template applies to this entity as shown in Table 669.
|
|
Table 669 — IfcTendon Body Geometry |
Instance diagram
<?xml version="1.0"?>
<ConceptRoot xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="b9fbb3c9-0090-404d-91cf-c7a8a2db35b7" name="IfcTendon" status="sample" applicableRootEntity="IfcTendon">
<Applicability uuid="00000000-0000-0000-0000-000000000000" status="sample">
<Template ref="101dca07-c3bc-4542-aea2-184f737fb049" />
<TemplateRules operator="and" />
</Applicability>
<Concepts>
<Concept uuid="f5fb8d8b-7e71-438d-ab3a-ea8db886649c" name="Object Typing" status="sample" override="false">
<Template ref="35a2e10e-20df-40f4-ab2f-dacf0a6744f4" />
<TemplateRules operator="and">
<TemplateRule Parameters="RelatingType[Type]='IfcTendonType'" />
</TemplateRules>
</Concept>
<Concept uuid="02943234-7e83-494c-91aa-fd284f292b85" name="Property Sets" status="sample" override="false">
<Template ref="f74255a6-0c0e-4f31-84ad-24981db62461" />
</Concept>
<Concept uuid="0a5c40fb-94b9-482a-9a9d-9b51defee0f0" name="Quantity Sets" status="sample" override="false">
<Template ref="6652398e-6579-4460-8cb4-26295acfacc7" />
<TemplateRules operator="and">
<TemplateRule Parameters="QsetName[Value]='Qto_ReinforcingElementBaseQuantities'" />
</TemplateRules>
</Concept>
<Concept uuid="eec48f4e-1893-4ba7-82c7-08129761ea1d" name="Placement" status="sample" override="false">
<Template ref="cbe85b5f-7912-4a43-8bb7-1e63bf40b26d" />
</Concept>
<Concept uuid="27caeb44-cfd9-4ed4-ac5f-a3d649f00049" name="Body Geometry" status="sample" override="false">
<Template ref="c446bd16-2de3-4b97-b34f-4446ac0badc2" />
<TemplateRules operator="and">
<TemplateRule Parameters="" />
<TemplateRule Parameters="" />
</TemplateRules>
</Concept>
</Concepts>
</ConceptRoot>
| # | Concept | Template | Model View |
|---|---|---|---|
| IfcRoot | |||
| Identity | Software Identity | General Usage | |
| Revision Control | Revision Control | General Usage | |
| IfcObjectDefinition | |||
| Classification Association | Classification Association | General Usage | |
| IfcObject | |||
| Object User Identity | Object User Identity | General Usage | |
| Object Predefined Type | Object Predefined Type | General Usage | |
| Property Sets with Override | Property Sets with Override | General Usage | |
| IfcProduct | |||
| Product Placement | Product Placement | General Usage | |
| Product Geometric Representation | Product Geometric Representation | General Usage | |
| IfcElement | |||
| CoG Geometry | CoG Geometry | General Usage | |
| Box Geometry | Box Geometry | General Usage | |
| FootPrint Geometry | FootPrint Geometry | General Usage | |
| Body SurfaceOrSolidModel Geometry | Body SurfaceOrSolidModel Geometry | General Usage | |
| Body SurfaceModel Geometry | Body SurfaceModel Geometry | General Usage | |
| Body Tessellation Geometry | Body Tessellation Geometry | General Usage | |
| Body Brep Geometry | Body Brep Geometry | General Usage | |
| Body AdvancedBrep Geometry | Body AdvancedBrep Geometry | General Usage | |
| Body CSG Geometry | Body CSG Geometry | General Usage | |
| Element Voiding | Element Voiding | General Usage | |
| Element Projecting | Element Projecting | General Usage | |
| IfcElementComponent | |||
| Mapped Geometry | Mapped Geometry | General Usage | |
| IfcTendon | |||
| Object Typing | Object Typing | General Usage | |
| Property Sets | Property Sets for Objects | General Usage | |
| Quantity Sets | Quantity Sets | General Usage | |
| Placement | Product Local Placement | General Usage | |
| Body Geometry | Body Geometry | General Usage | |
<xs:element name="IfcTendon" type="ifc:IfcTendon" substitutionGroup="ifc:IfcReinforcingElement" nillable="true"/>
<xs:complexType name="IfcTendon">
<xs:complexContent>
<xs:extension base="ifc:IfcReinforcingElement">
<xs:attribute name="PredefinedType" type="ifc:IfcTendonTypeEnum" use="optional"/>
<xs:attribute name="NominalDiameter" type="ifc:IfcPositiveLengthMeasure" use="optional"/>
<xs:attribute name="CrossSectionArea" type="ifc:IfcAreaMeasure" use="optional"/>
<xs:attribute name="TensionForce" type="ifc:IfcForceMeasure" use="optional"/>
<xs:attribute name="PreStress" type="ifc:IfcPressureMeasure" use="optional"/>
<xs:attribute name="FrictionCoefficient" type="ifc:IfcNormalisedRatioMeasure" use="optional"/>
<xs:attribute name="AnchorageSlip" type="ifc:IfcPositiveLengthMeasure" use="optional"/>
<xs:attribute name="MinCurvatureRadius" type="ifc:IfcPositiveLengthMeasure" use="optional"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
ENTITY IfcTendon
SUBTYPE OF (IfcReinforcingElement);
PredefinedType : OPTIONAL IfcTendonTypeEnum;
NominalDiameter : OPTIONAL IfcPositiveLengthMeasure;
CrossSectionArea : OPTIONAL IfcAreaMeasure;
TensionForce : OPTIONAL IfcForceMeasure;
PreStress : OPTIONAL IfcPressureMeasure;
FrictionCoefficient : OPTIONAL IfcNormalisedRatioMeasure;
AnchorageSlip : OPTIONAL IfcPositiveLengthMeasure;
MinCurvatureRadius : OPTIONAL IfcPositiveLengthMeasure;
WHERE
CorrectPredefinedType : NOT(EXISTS(PredefinedType)) OR
(PredefinedType <> IfcTendonTypeEnum.USERDEFINED) OR
((PredefinedType = IfcTendonTypeEnum.USERDEFINED) AND EXISTS (SELF\IfcObject.ObjectType));
CorrectTypeAssigned : (SIZEOF(IsTypedBy) = 0) OR
('IFCSTRUCTURALELEMENTSDOMAIN.IfcTendonType' IN TYPEOF(SELF\IfcObject.IsTypedBy[1].RelatingType))
;
END_ENTITY;
Link to this page
