IfcJunctionBox

#	Attribute	Type	Cardinality	Description	C
9	PredefinedType	IfcJunctionBoxTypeEnum	[0:1]		X

Rule	Description
CorrectPredefinedType	Either the PredefinedType attribute is unset (e.g. because an IfcJunctionBoxType is associated), or the inherited attribute ObjectType shall be provided, if the PredefinedType is set to USERDEFINED.
CorrectTypeAssigned	Either there is no junction box type object associated, i.e. the IsTypedBy inverse relationship is not provided, or the associated type object has to be of type IfcJunctionBoxType.

Inherited definitions from supertypes

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	C
IfcRoot
1	GlobalId	IfcGloballyUniqueId	[1:1]	Assignment of a globally unique identifier within the entire software world.	X
2	OwnerHistory	IfcOwnerHistory	[0:1]	Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object, NOTE only the last modification in stored - either as addition, deletion or modification.	X
3	Name	IfcLabel	[0:1]	Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule.	X
4	Description	IfcText	[0:1]	Optional description, provided for exchanging informative comments.	X
IfcObjectDefinition
	HasAssignments	IfcRelAssigns @RelatedObjects	S[0:?]	Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.	X
	Nests	IfcRelNests @RelatedObjects	S[0:1]	References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).	X
	IsNestedBy	IfcRelNests @RelatingObject	S[0:?]	References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).	X
	HasContext	IfcRelDeclares @RelatedDefinitions	S[0:1]	References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.	X
	IsDecomposedBy	IfcRelAggregates @RelatingObject	S[0:?]	References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).	X
	Decomposes	IfcRelAggregates @RelatedObjects	S[0:1]	References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).	X
	HasAssociations	IfcRelAssociates @RelatedObjects	S[0:?]	Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.	X
IfcObject
5	ObjectType	IfcLabel	[0:1]	The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.	X
	IsDeclaredBy	IfcRelDefinesByObject @RelatedObjects	S[0:1]	Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.	X
	Declares	IfcRelDefinesByObject @RelatingObject	S[0:?]	Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.	X
	IsTypedBy	IfcRelDefinesByType @RelatedObjects	S[0:1]	Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type.	X
	IsDefinedBy	IfcRelDefinesByProperties @RelatedObjects	S[0:?]	Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object.	X
IfcProduct
6	ObjectPlacement	IfcObjectPlacement	[0:1]	Placement of the product in space, the placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constraint (e.g. relative to grid axes). It is determined by the various subtypes of IfcObjectPlacement, which includes the axis placement information to determine the transformation for the object coordinate system.	X
7	Representation	IfcProductRepresentation	[0:1]	Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement.	X
	ReferencedBy	IfcRelAssignsToProduct @RelatingProduct	S[0:?]	Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product.	X
IfcElement
8	Tag	IfcIdentifier	[0:1]	The tag (or label) identifier at the particular instance of a product, e.g. the serial number, or the position number. It is the identifier at the occurrence level.	X
	FillsVoids	IfcRelFillsElement @RelatedBuildingElement	S[0:1]	Reference to the IfcRelFillsElement Relationship that puts the element as a filling into the opening created within another element.	X
	ConnectedTo	IfcRelConnectsElements @RelatingElement	S[0:?]	Reference to the element connection relationship. The relationship then refers to the other element to which this element is connected to.	X
	IsInterferedByElements	IfcRelInterferesElements @RelatedElement	S[0:?]	Reference to the interference relationship to indicate the element that is interfered. The relationship, if provided, indicates that this element has an interference with one or many other elements. NOTE There is no indication of precedence between IsInterferedByElements and InterferesElements.	X
	InterferesElements	IfcRelInterferesElements @RelatingElement	S[0:?]	Reference to the interference relationship to indicate the element that interferes. The relationship, if provided, indicates that this element has an interference with one or many other elements. NOTE There is no indication of precedence between IsInterferedByElements and InterferesElements.	X
	HasProjections	IfcRelProjectsElement @RelatingElement	S[0:?]	Projection relationship that adds a feature (using a Boolean union) to the IfcBuildingElement.	X
	ReferencedInStructures	IfcRelReferencedInSpatialStructure @RelatedElements	S[0:?]	Reference relationship to the spatial structure element, to which the element is additionally associated. This relationship may not be hierarchical, an element may be referenced by zero, one or many spatial structure elements.	X
	HasOpenings	IfcRelVoidsElement @RelatingBuildingElement	S[0:?]	Reference to the IfcRelVoidsElement relationship that creates an opening in an element. An element can incorporate zero-to-many openings. For each opening, that voids the element, a new relationship IfcRelVoidsElement is generated.	X
	IsConnectionRealization	IfcRelConnectsWithRealizingElements @RealizingElements	S[0:?]	Reference to the connection relationship with realizing element. The relationship, if provided, assigns this element as the realizing element to the connection, which provides the physical manifestation of the connection relationship.	X
	ProvidesBoundaries	IfcRelSpaceBoundary @RelatedBuildingElement	S[0:?]	Reference to space boundaries by virtue of the objectified relationship IfcRelSpaceBoundary. It defines the concept of an element bounding spaces.	X
	ConnectedFrom	IfcRelConnectsElements @RelatedElement	S[0:?]	Reference to the element connection relationship. The relationship then refers to the other element that is connected to this element.	X
	ContainedInStructure	IfcRelContainedInSpatialStructure @RelatedElements	S[0:1]	Containment relationship to the spatial structure element, to which the element is primarily associated. This containment relationship has to be hierachical, i.e. an element may only be assigned directly to zero or one spatial structure.	X
	HasCoverings	IfcRelCoversBldgElements @RelatingBuildingElement	S[0:?]	Reference to IfcCovering by virtue of the objectified relationship IfcRelCoversBldgElement. It defines the concept of an element having coverings associated.	X
IfcDistributionElement
	HasPorts	IfcRelConnectsPortToElement @RelatedElement	S[0:?]	Reference to the element to port connection relationship. The relationship then refers to the port which is contained in this element.	X
IfcDistributionFlowElement
	HasControlElements	IfcRelFlowControlElements @RelatingFlowElement	S[0:1]	Reference to the relationship object that relates control elements.	X
IfcFlowFitting
IfcJunctionBox
9	PredefinedType	IfcJunctionBoxTypeEnum	[0:1]		X

Definitions applying to Common Use Definitions

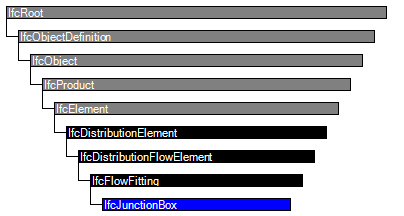

Instance diagram

Concept usage

Object Typing

The Object Typing concept applies to this entity as shown in Table 378.

Type
IfcJunctionBoxType
IfcDistributionFlowElementType
IfcDistributionElementType

Table 378 — IfcJunctionBox Object Typing

Property Sets for Objects

The Property Sets for Objects concept applies to this entity as shown in Table 379.

PredefinedType

Name

Properties

Pset_JunctionBoxTypeCommon

Single Value

Name	Value
Reference	IfcIdentifier
NumberOfGangs	IfcInteger
ClearDepth	IfcPositiveLengthMeasure
IsExternal	IfcBoolean
IP_Code	IfcLabel

Enumerated Value

Name	Value	Value
Status	IfcLabel	IfcLabel
ShapeType	IfcLabel	IfcLabel
PlacingType	IfcLabel	IfcLabel
MountingType	IfcLabel	IfcLabel

Pset_SoundGeneration

Pset_ElectricalDeviceCommon

Single Value

Name	Value
PowerFactor	IfcNormalisedRatioMeasure
NumberOfPoles	IfcInteger
HasProtectiveEarth	IfcBoolean
IP_Code	IfcLabel

Bounded Value

Name	Value	Value
RatedCurrent	IfcElectricCurrentMeasure	IfcElectricCurrentMeasure
RatedVoltage	IfcElectricVoltageMeasure	IfcElectricVoltageMeasure
NominalFrequencyRange	IfcFrequencyMeasure	IfcFrequencyMeasure

Enumerated Value

Name	Value	Value
ConductorFunction	IfcLabel	IfcLabel
InsulationStandardClass	IfcLabel	IfcLabel

Pset_EnvironmentalImpactIndicators

Single Value

Name	Value
Reference	IfcIdentifier
FunctionalUnitReference	IfcLabel
Unit	IfcText
ExpectedServiceLife	IfcTimeMeasure
TotalPrimaryEnergyConsumptionPerUnit	IfcEnergyMeasure
WaterConsumptionPerUnit	IfcVolumeMeasure
HazardousWastePerUnit	IfcMassMeasure
NonHazardousWastePerUnit	IfcMassMeasure
ClimateChangePerUnit	IfcMassMeasure
AtmosphericAcidificationPerUnit	IfcMassMeasure
RenewableEnergyConsumptionPerUnit	IfcEnergyMeasure
NonRenewableEnergyConsumptionPerUnit	IfcEnergyMeasure
ResourceDepletionPerUnit	IfcMassMeasure
InertWastePerUnit	IfcMassMeasure
RadioactiveWastePerUnit	IfcMassMeasure
StratosphericOzoneLayerDestructionPerUnit	IfcMassMeasure
PhotochemicalOzoneFormationPerUnit	IfcMassMeasure
EutrophicationPerUnit	IfcMassMeasure

Enumerated Value

Name	Value	Value
LifeCyclePhase	IfcLabel	IfcLabel

Pset_EnvironmentalImpactValues

Single Value

Name	Value
TotalPrimaryEnergyConsumption	IfcEnergyMeasure
WaterConsumption	IfcVolumeMeasure
HazardousWaste	IfcMassMeasure
NonHazardousWaste	IfcMassMeasure
ClimateChange	IfcMassMeasure
AtmosphericAcidification	IfcMassMeasure
RenewableEnergyConsumption	IfcEnergyMeasure
NonRenewableEnergyConsumption	IfcEnergyMeasure
ResourceDepletion	IfcMassMeasure
InertWaste	IfcMassMeasure
RadioactiveWaste	IfcMassMeasure
StratosphericOzoneLayerDestruction	IfcMassMeasure
PhotochemicalOzoneFormation	IfcMassMeasure
Eutrophication	IfcMassMeasure
LeadInTime	IfcDuration
Duration	IfcDuration
LeadOutTime

Pset_Condition

Single Value

Name	Value
AssessmentDate	IfcDate
AssessmentCondition	IfcLabel
AssessmentDescription	IfcText

Pset_ManufacturerOccurrence

Single Value

Name	Value
AcquisitionDate	IfcDate
BarCode	IfcIdentifier
SerialNumber	IfcIdentifier
BatchReference	IfcIdentifier

Enumerated Value

Name	Value	Value
AssemblyPlace	IfcLabel	IfcLabel

Pset_ManufacturerTypeInformation

Single Value

Name	Value
GlobalTradeItemNumber	IfcIdentifier
ArticleNumber	IfcIdentifier
ModelReference	IfcLabel
ModelLabel	IfcLabel
Manufacturer	IfcLabel
ProductionYear	IfcLabel

Enumerated Value

Name	Value	Value
AssemblyPlace	IfcLabel	IfcLabel

Pset_ServiceLife

Single Value

Name	Value
MeanTimeBetweenFailure	IfcDuration

Bounded Value

Name	Value	Value
ServiceLifeDuration	IfcDuration	IfcDuration

Pset_Warranty

Single Value

Name	Value
WarrantyIdentifier	IfcIdentifier
WarrantyStartDate	IfcDate
WarrantyEndDate	IfcDate
IsExtendedWarranty	IfcBoolean
WarrantyPeriod	IfcTimeMeasure
WarrantyContent	IfcText
Exclusions	IfcText

Table 379 — IfcJunctionBox Property Sets for Objects

Quantity Sets

The Quantity Sets concept applies to this entity as shown in Table 380.

Name
Qto_JunctionBoxBaseQuantities

Table 380 — IfcJunctionBox Quantity Sets

Material Constituents

The Material Constituents concept applies to this entity as shown in Table 381.

Name	Description
Casing	Material from which the casing is constructed.

Table 381 — IfcJunctionBox Material Constituents

Element Connectivity

The Element Connectivity concept applies to this entity as shown in Table 382.

Table 382 — IfcJunctionBox Element Connectivity

Element Filling

The Element Filling concept applies to this entity as shown in Table 383.

Type	Description
IfcCovering	Covering such as drywall applied to a wall or ceiling, for which the junction box fills.

Table 383 — IfcJunctionBox Element Filling

Element Nesting

The Element Nesting concept applies to this entity as shown in Table 384.

Type	PredefinedType	Description
IfcDistributionFlowElement		A switch, outlet, light fixture, or other component that may fit within one of the gangs of the junction box. Property sets may further define compatible objects based on form factor, voltage, and current.

Table 384 — IfcJunctionBox Element Nesting

IFC4 ADD1 CHANGE Junction boxes no longer have ports defined, but rely on element nesting for indicating containment of electrical devices.

Concept inheritance

#	Concept	Model View
IfcRoot
	Software Identity	Common Use Definitions
	Revision Control	Common Use Definitions
IfcObject
	Object Occurrence Predefined Type	Common Use Definitions
IfcElement
	Product Local Placement	Common Use Definitions
	Box Geometry	Common Use Definitions
	FootPrint Geometry	Common Use Definitions
	Body SurfaceOrSolidModel Geometry	Common Use Definitions
	Body SurfaceModel Geometry	Common Use Definitions
	Body Tessellation Geometry	Common Use Definitions
	Body Brep Geometry	Common Use Definitions
	Body AdvancedBrep Geometry	Common Use Definitions
	Body CSG Geometry	Common Use Definitions
	Mapped Geometry	Common Use Definitions
	Mesh Geometry	Common Use Definitions
IfcDistributionElement
	Spatial Containment	Common Use Definitions
IfcDistributionFlowElement
	Axis Geometry	Common Use Definitions
	Clearance Geometry	Common Use Definitions
IfcJunctionBox
	Object Typing	Common Use Definitions
	Property Sets for Objects	Common Use Definitions
	Quantity Sets	Common Use Definitions
	Material Constituents	Common Use Definitions
	Element Connectivity	Common Use Definitions
	Element Filling	Common Use Definitions
	Element Nesting	Common Use Definitions

Formal representations

XSD Specification

 <xs:element name="IfcJunctionBox" type="ifc:IfcJunctionBox" substitutionGroup="ifc:IfcFlowFitting" nillable="true"/>

 <xs:complexType name="IfcJunctionBox">

  <xs:complexContent>

   <xs:extension base="ifc:IfcFlowFitting">

    <xs:attribute name="PredefinedType" type="ifc:IfcJunctionBoxTypeEnum" use="optional"/>

   </xs:extension>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcJunctionBox

 SUBTYPE OF (IfcFlowFitting);

  PredefinedType : OPTIONAL IfcJunctionBoxTypeEnum;

 WHERE

  CorrectPredefinedType : NOT(EXISTS(PredefinedType)) OR
 (PredefinedType <> IfcJunctionBoxTypeEnum.USERDEFINED) OR
 ((PredefinedType = IfcJunctionBoxTypeEnum.USERDEFINED) AND EXISTS (SELF\IfcObject.ObjectType));
  CorrectTypeAssigned : (SIZEOF(IsTypedBy) = 0) OR
  ('IFCELECTRICALDOMAIN.IFCJUNCTIONBOXTYPE' IN TYPEOF(SELF\IfcObject.IsTypedBy[1].RelatingType));
END_ENTITY;

 EXPRESS-G diagram

Link to this page

Item	SPF	XML	Change	Description
IFC2x3 to IFC4
IfcJunctionBox			ADDED
IFC4 Addendum 1
IfcJunctionBox
HasCoverings			ADDED
