IfcPolygonalBoundedHalfSpace

Natural language names
deHalbraum - eingeschränkter Gültigkeitsbereich
enPolygonal Bounded Half Space
Change log
ItemSPFXMLChangeDescription
IFC4 Addendum 1
    IfcPolygonalBoundedHalfSpace
      AgreementFlagMODIFIEDType changed from BOOLEAN to IfcBoolean.
Semantic definitions at the entity
Entity definition

The polygonal bounded half space is a special subtype of a half space solid, where the material of the half space used in Boolean expressions is bounded by a polygonal boundary. The base surface of the half space is positioned by its normal relative to the object coordinate system (as defined at the supertype IfcHalfSpaceSolid), and its polygonal (with or without arc segments) boundary is defined in the XY plane of the position coordinate system established by the Position attribute, the subtraction body is extruded perpendicular to the XY plane of the position coordinate system, that is, into the direction of the positive Z axis defined by the Position attribute.

The boundary is defined by a 2 dimensional polyline (or 2 dimensional composite curve, consisting of straight segments and circular arc segments) within the XY plane of the position coordinate system. The side of the surface which is in the half space is determined by the surface normal and the agreement flag. If the agreement flag is TRUE, then the subset is the one the normal points away from. If the agreement flag is FALSE, then the subset is the one the normal points into.

NOTE  A polygonal bounded half space is not a subtype of IfcSolidModel, half space solids are only useful as operands in Boolean expressions.

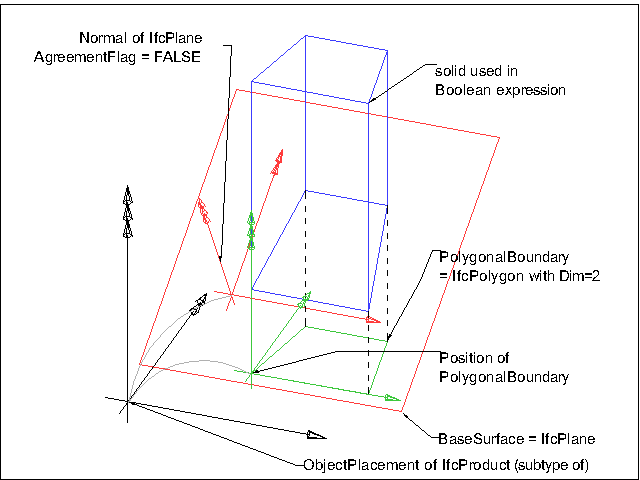

Figure 316 illustrates a polygonal bounded half space.

polygonal bounded halfspace
  • Black coordinates indicate the object coordinate system (usually provided by IfcLocalPlacement).
  • Green coordinates indicate the position coordinate system; the PolygonalBoundary is given within this coordinate system. It is provided by IfcPolygonalBoundedHalfSpace.Position. This coordinate system is relative to the object coordinate system. The extrusion direction of the subtraction body is the positive Z axis.
  • Red coordinates indicate the normal of the plane. It is provided by the BaseSurface (IfcSurface.Position). This normal is also relative to the object coordinate system.

Figure 316 — Polygonal half space geometry



The polygonal bounded half space is used to limit the volume of the half space in Boolean difference expressions. Only the part that is defined by a theoretical intersection between the half space solid and an extruded area solid, defined by extruding the polygonal boundary, is used for Boolean expressions.

The PolygonalBoundary defines the 2D polyline which bounds the effectiveness of the half space in Boolean expressions. The BaseSurface is defined by a plane, and the normal of the plane together with the AgreementFlag defines the side of the material of the half space.

HISTORY  New entity in IFC2x.

Informal Propositions:

  1. The IfcPolyline or the IfcCompositeCurve providing the PolygonalBoundary shall be closed.
  2. If the PolygonalBoundary is given by an IfcCompositeCurve, it shall only have IfcCompositeCurveSegment's of type IfcPolyline, or IfcTrimmedCurve (having a BasisCurve of type IfcLine, or IfcCircle)
  3. The BaseSurface defined at supertype IfcHalfSpaceSolid shall be of type IfcPlane
  4. The normal of the plane, being the BaseSurface, shall not be perpendicular to the z-axis of the position coordinate system
Attribute definitions
#AttributeTypeCardinalityDescription C
3PositionIfcAxis2Placement3D[1:1]

Definition of the position coordinate system for the bounding polyline and the base surface.

X
4PolygonalBoundaryIfcBoundedCurve[1:1] Two-dimensional polyline bounded curve, defined in the xy plane of the position coordinate system. X
Formal Propositions
RuleDescription
BoundaryDimThe bounding polyline should have the dimensionality of 2.
BoundaryTypeOnly bounded curves of type IfcCompositeCurve, or IfcPolyline are valid boundaries.
Inherited definitions from supertypes
Entity inheritance IfcHalfSpaceSolid IfcGeometricRepresentationItem IfcRepresentationItem
Attribute inheritance
#AttributeTypeCardinalityDescriptionC
IfcRepresentationItem
LayerAssignmentIfcPresentationLayerAssignment
@AssignedItems
S[0:1]Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items. X
StyledByItemIfcStyledItem
@Item
S[0:1]Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve. X
IfcGeometricRepresentationItem
IfcHalfSpaceSolid
1BaseSurfaceIfcSurface[1:1] Surface defining side of half space.X
2AgreementFlagIfcBoolean[1:1] The agreement flag is TRUE if the normal to the BaseSurface points away from the material of the IfcHalfSpaceSolid. Otherwise it is FALSE.X
Dim
:=3
IfcDimensionCount[1:1]The space dimensionality of this class, it is always 3 X
IfcPolygonalBoundedHalfSpace
3PositionIfcAxis2Placement3D[1:1]

Definition of the position coordinate system for the bounding polyline and the base surface.

X
4PolygonalBoundaryIfcBoundedCurve[1:1] Two-dimensional polyline bounded curve, defined in the xy plane of the position coordinate system. X
Formal representations
XSD Specification
 <xs:element name="IfcPolygonalBoundedHalfSpace" type="ifc:IfcPolygonalBoundedHalfSpace" substitutionGroup="ifc:IfcHalfSpaceSolid" nillable="true"/>
 <xs:complexType name="IfcPolygonalBoundedHalfSpace">
  <xs:complexContent>
   <xs:extension base="ifc:IfcHalfSpaceSolid">
    <xs:sequence>
     <xs:element name="Position" type="ifc:IfcAxis2Placement3D" nillable="true"/>
     <xs:element name="PolygonalBoundary" type="ifc:IfcBoundedCurve" nillable="true"/>
    </xs:sequence>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcPolygonalBoundedHalfSpace
 SUBTYPE OF (IfcHalfSpaceSolid);
  Position : IfcAxis2Placement3D;
  PolygonalBoundary : IfcBoundedCurve;
 WHERE
  BoundaryDim : PolygonalBoundary.Dim = 2;
  BoundaryType : SIZEOF(TYPEOF(PolygonalBoundary) * [ 'IFCGEOMETRYRESOURCE.IFCPOLYLINE', 'IFCGEOMETRYRESOURCE.IFCCOMPOSITECURVE'] ) = 1;
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram
