IfcEvaporativeCooler

Natural language names
deVerdunstungskühler
enEvaporative Cooler
frRefroidisseur évaporatif
Change log
ItemSPFXMLChangeDescription
IFC2x3 to IFC4
    IfcEvaporativeCoolerADDED
IFC4 Addendum 1
    IfcEvaporativeCooler
      HasCoveringsADDED
Semantic definitions at the entity
Entity definition

An evaporative cooler is a device that cools air by saturating it with water vapor.

HISTORY  New entity in IFC4
Attribute definitions
#AttributeTypeCardinalityDescription C
9PredefinedTypeIfcEvaporativeCoolerTypeEnum[0:1] X
Formal Propositions
RuleDescription
CorrectPredefinedTypeEither the PredefinedType attribute is unset (e.g. because an IfcEvaporativeCoolerType is associated), or the inherited attribute ObjectType shall be provided, if the PredefinedType is set to USERDEFINED.
CorrectTypeAssignedEither there is no evaporative cooler type object associated, i.e. the IsTypedBy inverse relationship is not provided, or the associated type object has to be of type IfcEvaporativeCoolerType.
Inherited definitions from supertypes

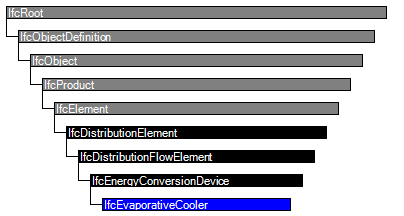

Entity inheritance IfcEnergyConversionDevice IfcDistributionFlowElement IfcDistributionElement IfcElement IfcProduct IfcObject IfcObjectDefinition IfcRoot
Attribute inheritance
#AttributeTypeCardinalityDescriptionC
IfcRoot
1GlobalIdIfcGloballyUniqueId[1:1] Assignment of a globally unique identifier within the entire software world. X
2OwnerHistoryIfcOwnerHistory[0:1] Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE  only the last modification in stored - either as addition, deletion or modification.
X
3NameIfcLabel[0:1] Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. X
4DescriptionIfcText[0:1] Optional description, provided for exchanging informative comments.X
IfcObjectDefinition
HasAssignmentsIfcRelAssigns
@RelatedObjects
S[0:?]Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.X
NestsIfcRelNests
@RelatedObjects
S[0:1]References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only). X
IsNestedByIfcRelNests
@RelatingObject
S[0:?]References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types). X
HasContextIfcRelDeclares
@RelatedDefinitions
S[0:1]References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object. X
IsDecomposedByIfcRelAggregates
@RelatingObject
S[0:?]References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts). X
DecomposesIfcRelAggregates
@RelatedObjects
S[0:1]References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only). X
HasAssociationsIfcRelAssociates
@RelatedObjects
S[0:?]Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.X
IfcObject
5ObjectTypeIfcLabel[0:1] The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.
X
IsDeclaredByIfcRelDefinesByObject
@RelatedObjects
S[0:1]Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes. X
DeclaresIfcRelDefinesByObject
@RelatingObject
S[0:?]Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes. X
IsTypedByIfcRelDefinesByType
@RelatedObjects
S[0:1]Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type. X
IsDefinedByIfcRelDefinesByProperties
@RelatedObjects
S[0:?]Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object. X
IfcProduct
6ObjectPlacementIfcObjectPlacement[0:1] Placement of the product in space, the placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constraint (e.g. relative to grid axes). It is determined by the various subtypes of IfcObjectPlacement, which includes the axis placement information to determine the transformation for the object coordinate system.X
7RepresentationIfcProductRepresentation[0:1] Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement.X
ReferencedByIfcRelAssignsToProduct
@RelatingProduct
S[0:?]Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product.X
IfcElement
8TagIfcIdentifier[0:1] The tag (or label) identifier at the particular instance of a product, e.g. the serial number, or the position number. It is the identifier at the occurrence level.X
FillsVoidsIfcRelFillsElement
@RelatedBuildingElement
S[0:1]Reference to the IfcRelFillsElement Relationship that puts the element as a filling into the opening created within another element. X
ConnectedToIfcRelConnectsElements
@RelatingElement
S[0:?]Reference to the element connection relationship. The relationship then refers to the other element to which this element is connected to. X
IsInterferedByElementsIfcRelInterferesElements
@RelatedElement
S[0:?]Reference to the interference relationship to indicate the element that is interfered. The relationship, if provided, indicates that this element has an interference with one or many other elements.
NOTE  There is no indication of precedence between IsInterferedByElements and InterferesElements.
X
InterferesElementsIfcRelInterferesElements
@RelatingElement
S[0:?]Reference to the interference relationship to indicate the element that interferes. The relationship, if provided, indicates that this element has an interference with one or many other elements.
NOTE  There is no indication of precedence between IsInterferedByElements and InterferesElements.
X
HasProjectionsIfcRelProjectsElement
@RelatingElement
S[0:?]Projection relationship that adds a feature (using a Boolean union) to the IfcBuildingElement.X
ReferencedInStructuresIfcRelReferencedInSpatialStructure
@RelatedElements
S[0:?]Reference relationship to the spatial structure element, to which the element is additionally associated. This relationship may not be hierarchical, an element may be referenced by zero, one or many spatial structure elements. X
HasOpeningsIfcRelVoidsElement
@RelatingBuildingElement
S[0:?]Reference to the IfcRelVoidsElement relationship that creates an opening in an element. An element can incorporate zero-to-many openings. For each opening, that voids the element, a new relationship IfcRelVoidsElement is generated. X
IsConnectionRealizationIfcRelConnectsWithRealizingElements
@RealizingElements
S[0:?]Reference to the connection relationship with realizing element. The relationship, if provided, assigns this element as the realizing element to the connection, which provides the physical manifestation of the connection relationship. X
ProvidesBoundariesIfcRelSpaceBoundary
@RelatedBuildingElement
S[0:?]Reference to space boundaries by virtue of the objectified relationship IfcRelSpaceBoundary. It defines the concept of an element bounding spaces. X
ConnectedFromIfcRelConnectsElements
@RelatedElement
S[0:?]Reference to the element connection relationship. The relationship then refers to the other element that is connected to this element. X
ContainedInStructureIfcRelContainedInSpatialStructure
@RelatedElements
S[0:1]Containment relationship to the spatial structure element, to which the element is primarily associated. This containment relationship has to be hierachical, i.e. an element may only be assigned directly to zero or one spatial structure. X
HasCoveringsIfcRelCoversBldgElements
@RelatingBuildingElement
S[0:?]Reference to IfcCovering by virtue of the objectified relationship IfcRelCoversBldgElement. It defines the concept of an element having coverings associated.X
IfcDistributionElement
HasPortsIfcRelConnectsPortToElement
@RelatedElement
S[0:?]Reference to the element to port connection relationship. The relationship then refers to the port which is contained in this element. X
IfcDistributionFlowElement
HasControlElementsIfcRelFlowControlElements
@RelatingFlowElement
S[0:1]Reference to the relationship object that relates control elements.X
IfcEnergyConversionDevice
IfcEvaporativeCooler
9PredefinedTypeIfcEvaporativeCoolerTypeEnum[0:1] X
Definitions applying to Common Use Definitions

 Instance diagram


Concept usage

Object Typing

The Object Typing concept applies to this entity as shown in Table 512.

Type
IfcEvaporativeCoolerType
IfcDistributionFlowElementType
IfcDistributionElementType

Table 512 — IfcEvaporativeCooler Object Typing



Property Sets for Objects

The Property Sets for Objects concept applies to this entity as shown in Table 513.

PredefinedTypeNameProperties
 Pset_EvaporativeCoolerTypeCommonSingle Value
NameValue
ReferenceIfcIdentifier
HeatExchangeAreaIfcAreaMeasure
WaterRequirementIfcVolumetricFlowRateMeasure
Bounded Value
NameValueValue
OperationTemperatureRangeIfcThermodynamicTemperatureMeasureIfcThermodynamicTemperatureMeasure
Enumerated Value
NameValueValue
StatusIfcLabelIfcLabel
FlowArrangementIfcLabelIfcLabel
 Pset_SoundGeneration
 Pset_ElectricalDeviceCommonSingle Value
NameValue
PowerFactorIfcNormalisedRatioMeasure
NumberOfPolesIfcInteger
HasProtectiveEarthIfcBoolean
IP_CodeIfcLabel
Bounded Value
NameValueValue
RatedCurrentIfcElectricCurrentMeasureIfcElectricCurrentMeasure
RatedVoltageIfcElectricVoltageMeasureIfcElectricVoltageMeasure
NominalFrequencyRangeIfcFrequencyMeasureIfcFrequencyMeasure
Enumerated Value
NameValueValue
ConductorFunctionIfcLabelIfcLabel
InsulationStandardClassIfcLabelIfcLabel
 Pset_EnvironmentalImpactIndicatorsSingle Value
NameValue
ReferenceIfcIdentifier
FunctionalUnitReferenceIfcLabel
UnitIfcText
ExpectedServiceLifeIfcTimeMeasure
TotalPrimaryEnergyConsumptionPerUnitIfcEnergyMeasure
WaterConsumptionPerUnitIfcVolumeMeasure
HazardousWastePerUnitIfcMassMeasure
NonHazardousWastePerUnitIfcMassMeasure
ClimateChangePerUnitIfcMassMeasure
AtmosphericAcidificationPerUnitIfcMassMeasure
RenewableEnergyConsumptionPerUnitIfcEnergyMeasure
NonRenewableEnergyConsumptionPerUnitIfcEnergyMeasure
ResourceDepletionPerUnitIfcMassMeasure
InertWastePerUnitIfcMassMeasure
RadioactiveWastePerUnitIfcMassMeasure
StratosphericOzoneLayerDestructionPerUnitIfcMassMeasure
PhotochemicalOzoneFormationPerUnitIfcMassMeasure
EutrophicationPerUnitIfcMassMeasure
Enumerated Value
NameValueValue
LifeCyclePhaseIfcLabelIfcLabel
 Pset_EnvironmentalImpactValuesSingle Value
NameValue
TotalPrimaryEnergyConsumptionIfcEnergyMeasure
WaterConsumptionIfcVolumeMeasure
HazardousWasteIfcMassMeasure
NonHazardousWasteIfcMassMeasure
ClimateChangeIfcMassMeasure
AtmosphericAcidificationIfcMassMeasure
RenewableEnergyConsumptionIfcEnergyMeasure
NonRenewableEnergyConsumptionIfcEnergyMeasure
ResourceDepletionIfcMassMeasure
InertWasteIfcMassMeasure
RadioactiveWasteIfcMassMeasure
StratosphericOzoneLayerDestructionIfcMassMeasure
PhotochemicalOzoneFormationIfcMassMeasure
EutrophicationIfcMassMeasure
LeadInTimeIfcDuration
DurationIfcDuration
LeadOutTime
 Pset_ConditionSingle Value
NameValue
AssessmentDateIfcDate
AssessmentConditionIfcLabel
AssessmentDescriptionIfcText
 Pset_ManufacturerOccurrenceSingle Value
NameValue
AcquisitionDateIfcDate
BarCodeIfcIdentifier
SerialNumberIfcIdentifier
BatchReferenceIfcIdentifier
Enumerated Value
NameValueValue
AssemblyPlaceIfcLabelIfcLabel
 Pset_ManufacturerTypeInformationSingle Value
NameValue
GlobalTradeItemNumberIfcIdentifier
ArticleNumberIfcIdentifier
ModelReferenceIfcLabel
ModelLabelIfcLabel
ManufacturerIfcLabel
ProductionYearIfcLabel
Enumerated Value
NameValueValue
AssemblyPlaceIfcLabelIfcLabel
 Pset_ServiceLifeSingle Value
NameValue
MeanTimeBetweenFailureIfcDuration
Bounded Value
NameValueValue
ServiceLifeDurationIfcDurationIfcDuration
 Pset_WarrantySingle Value
NameValue
WarrantyIdentifierIfcIdentifier
WarrantyStartDateIfcDate
WarrantyEndDateIfcDate
IsExtendedWarrantyIfcBoolean
WarrantyPeriodIfcTimeMeasure
WarrantyContentIfcText
ExclusionsIfcText

Table 513 — IfcEvaporativeCooler Property Sets for Objects



Quantity Sets

The Quantity Sets concept applies to this entity as shown in Table 514.

Name
Qto_EvaporativeCoolerBaseQuantities

Table 514 — IfcEvaporativeCooler Quantity Sets



Material Constituents

The Material Constituents concept applies to this entity as shown in Table 515.

NameDescription
CasingMaterial from which the casing is constructed.
MediaHeat exchanger media material.

Table 515 — IfcEvaporativeCooler Material Constituents



Port Nesting

The Port Nesting concept applies to this entity as shown in Table 516.

PredefinedTypeNameFlowTypeDescription
 WaterInSINKDOMESTICCOLDWATERIncoming water.
 AirInSINKAIRCONDITIONINGIncoming air.
 AirOutSOURCEAIRCONDITIONINGOutgoing air saturated with vapor.

Table 516 — IfcEvaporativeCooler Port Nesting



Concept inheritance

#ConceptModel View
IfcRoot
Software IdentityCommon Use Definitions
Revision ControlCommon Use Definitions
IfcObject
Object Occurrence Predefined TypeCommon Use Definitions
IfcElement
Product Local PlacementCommon Use Definitions
Box GeometryCommon Use Definitions
FootPrint GeometryCommon Use Definitions
Body SurfaceOrSolidModel GeometryCommon Use Definitions
Body SurfaceModel GeometryCommon Use Definitions
Body Tessellation GeometryCommon Use Definitions
Body Brep GeometryCommon Use Definitions
Body AdvancedBrep GeometryCommon Use Definitions
Body CSG GeometryCommon Use Definitions
Mapped GeometryCommon Use Definitions
Mesh GeometryCommon Use Definitions
IfcDistributionElement
Spatial ContainmentCommon Use Definitions
IfcDistributionFlowElement
Axis GeometryCommon Use Definitions
Clearance GeometryCommon Use Definitions
IfcEvaporativeCooler
Object TypingCommon Use Definitions
Property Sets for ObjectsCommon Use Definitions
Quantity SetsCommon Use Definitions
Material ConstituentsCommon Use Definitions
Port NestingCommon Use Definitions
Formal representations
XSD Specification
 <xs:element name="IfcEvaporativeCooler" type="ifc:IfcEvaporativeCooler" substitutionGroup="ifc:IfcEnergyConversionDevice" nillable="true"/>
 <xs:complexType name="IfcEvaporativeCooler">
  <xs:complexContent>
   <xs:extension base="ifc:IfcEnergyConversionDevice">
    <xs:attribute name="PredefinedType" type="ifc:IfcEvaporativeCoolerTypeEnum" use="optional"/>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcEvaporativeCooler
 SUBTYPE OF (IfcEnergyConversionDevice);
  PredefinedType : OPTIONAL IfcEvaporativeCoolerTypeEnum;
 WHERE
  CorrectPredefinedType : NOT(EXISTS(PredefinedType)) OR (PredefinedType <> IfcEvaporativeCoolerTypeEnum.USERDEFINED) OR ((PredefinedType = IfcEvaporativeCoolerTypeEnum.USERDEFINED) AND EXISTS (SELF\IfcObject.ObjectType));
  CorrectTypeAssigned : (SIZEOF(IsTypedBy) = 0) OR ('IFCHVACDOMAIN.IFCEVAPORATIVECOOLERTYPE' IN TYPEOF(SELF\IfcObject.IsTypedBy[1].RelatingType));
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram

Link to this page  Link to this page
