EditorGUI.LayerField 层字段

static function LayerField (position : Rect, layer : int, style : GUIStyle = EditorStyles.popup) : int
static function LayerField (position : Rect, label : string, layer : int, style : GUIStyle = EditorStyles.popup) : int
static function LayerField (position : Rect, label : GUIContent, layer : int, style : GUIStyle = EditorStyles.popup) : int

Parameters参数

position

Rectangle on the screen to use for the field.
屏幕上的矩形区域
label

Optional label in front of the field.
该字段前面的可选标签
tag

The layer shown in the field.
显示的层字段
style

Optional GUIStyle. // 可选的GUIStyle

Returns

int - The layer selected by the user.

返回整数 - 用户选择的层。

Description描述

Make a layer selection field.

制作一个层选择字段。

EditorGUI.LayerField 层字段

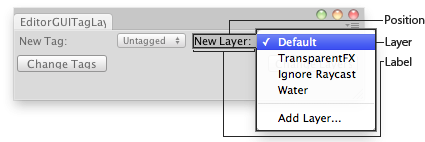

Layer field in an Editor Window.
在编辑在中的层字段。

// Change the Tag and/or the layer of the selected GameObjects.
//更改标签 和/或 所选游戏物体的层
class EditorGUITagLayerField extends EditorWindow {

	var selectedTag : String = "";
	var selectedLayer : int = 0;

	@MenuItem("Examples/Tag - Layer for Selection")
	static function Init() {
		var window = GetWindow(EditorGUITagLayerField);
		window.position = Rect(0,0,350,70);
		window.Show();
	}

	function OnGUI() {
		selectedTag = EditorGUI.TagField(
			Rect(3,3,position.width/2 - 6, 20),
			"New Tag:",
			selectedTag);
		selectedLayer = EditorGUI.LayerField(
			Rect(position.width/2 + 3,3, position.width/2 - 6, 20),
			"New Layer:",
			selectedLayer);

		if(Selection.activeGameObject) {
			if(GUI.Button(Rect(3,25,90,17),"Change Tags"))
				for(var go : GameObject in Selection.gameObjects)
					go.tag = selectedTag;
			if(GUI.Button(Rect(position.width-96, 25,90,17),"Change Layers"))
				for(var go : GameObject in Selection.gameObjects)
					go.layer = selectedLayer;
		}
	}

	function OnInspectorUpdate() {
		Repaint();
	}
}

最后修改：2011年6月22日 Wednesday 19:09
