EditorGUI.Vector2Field 二维向量字段

static function Vector2Field (position : Rect, label : string, value : Vector2) : Vector2

Parameters参数

Returns

Vector2 - The value entered by the user.

返回Vector2 - 用户输入的值。

Description描述

Make an X & Y field for entering a Vector2.

制作一个X和Y 的输入框,用来输入Vector2

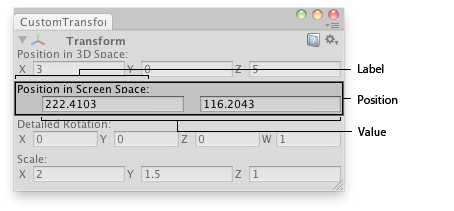

EditorGUI.Vector2Field 二维向量字段

Vector2 field in an Editor Window.
二维向量字段在编辑器窗口。

// Editor window that shows the detailed rotation (X,Y,Z and W components),
//编辑窗口显示详细的旋转
// the position in 3D space and position in Screen space of the selected
// transform.
//选择变换,在三维空间的位置和屏幕空间的位置
class CustomTransformInspector extends EditorWindow {
	var showing : boolean = true;
	var rotationComp : Vector4;

	@MenuItem("Examples/GameObject detailed inspector")
	static function Init() {
		var window = GetWindow(CustomTransformInspector);
		window.Show();
	}

	function OnInspectorUpdate() {
		Repaint();
	}
	function OnGUI() {
		var currObj = Selection.activeTransform;
		showing = EditorGUI.InspectorTitlebar(Rect(0,0,position.width, 20), showing, currObj);
		if(showing) {
			if(currObj) {
				currObj.position = EditorGUI.Vector3Field(Rect(3,15,position.width-6,20),
					"Position in 3D Space:",
					currObj.position);

				EditorGUI.Vector2Field(Rect(3,50,position.width-6,20),
					"Position in Screen Space:",
					Camera.main.WorldToScreenPoint(currObj.position));

				rotationComp = EditorGUI.Vector4Field(Rect(3, 85, position.width-6, 20),
					"Detailed Rotation:",
					QuaternionToVector4(currObj.localRotation));
				currObj.localRotation = ConvertToQuaternion(rotationComp);

				currObj.localScale = EditorGUI.Vector3Field(Rect(3,120,position.width-6,20),
					"Scale:",
					currObj.localScale);

			} else {
				EditorGUI.DropShadowLabel(Rect(3,15,position.width,20),"Select an Object to inspect");
			}
		}
	}

	function ConvertToQuaternion(v4 : Vector4) {
		return Quaternion(v4.x, v4.y, v4.z, v4.w);
	}
	function QuaternionToVector4(q : Quaternion) {
		return Vector4(q.x, q.y, q.z, q.w);
	}
}
最后修改:2011年6月23日 Thursday 17:30

本脚本参考基于Unity 3.4.1f5
